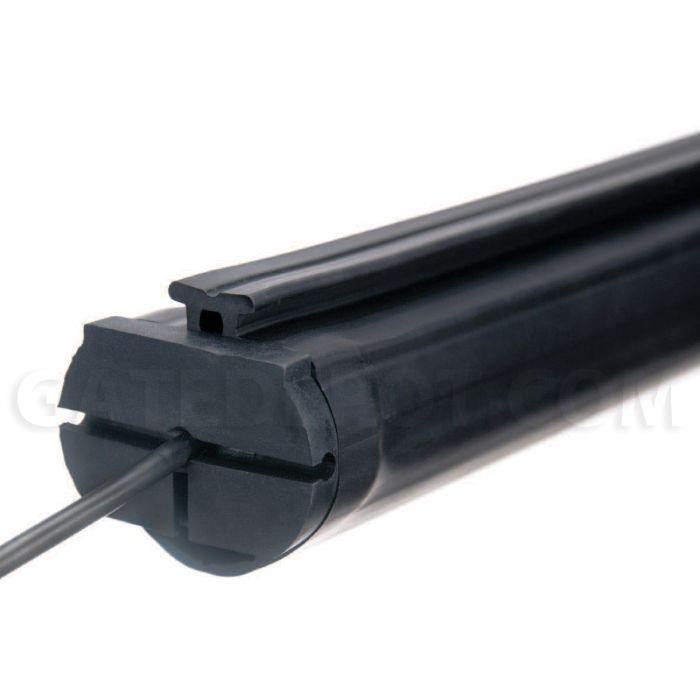

Miller Edge ME117 Sensing Edge
Choose 2 or 4 Wire
Choose Left, Right, or End Outlet Locations
• Can Fit Nearly All Doors From 1" - 2" Thick
• Black
• Priced per foot
• Call for Air-wave and Dummy configurations
• Minimum order 4 Feet
MPN:
ME117
$37.55
SKU
MLE-me117
Product Details

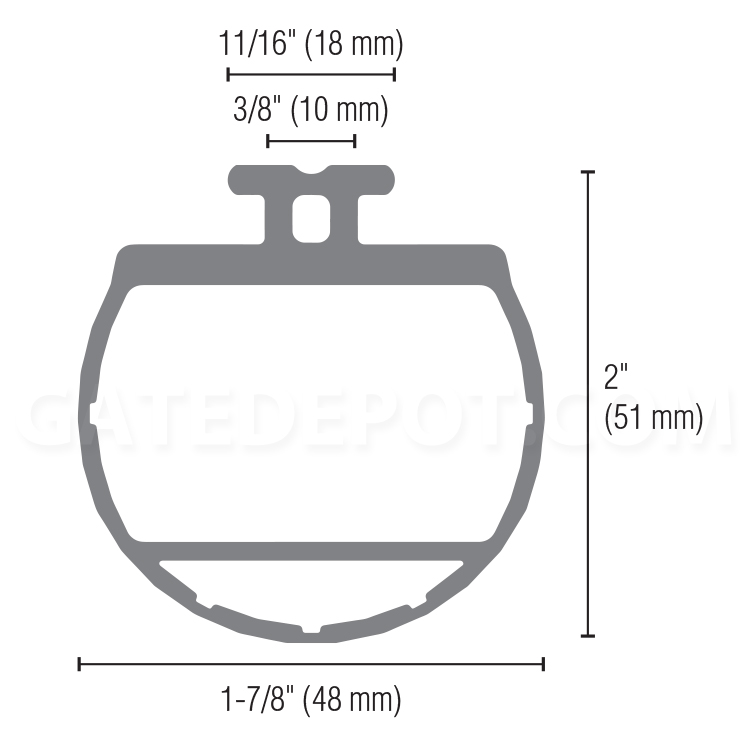

The ME117 sensing edge has an added layer of PVC, creating a hollow pocket on the bottom of the edge. This hollow pocket conforms to irregularities in the surface which help prevent dust and debris from passing the threshold. ME117 is designed to fit doors from 1 to 2-inch thick. When touch activated, ME117 sends an immediate signal to controls to stop and/or reverse operation. A mounting channel is available for easy installation on machinery applications.
APPLICATIONS
- Commercial sectional doors
- Scissor lifts
- Conveyor systems
- Presses
FEATURES
- Easy to install
- Mounts vertically or horizontally
- Sealed assembly impervious to dust and debris
- Compatible mounting channel option
- Custom manufactured to user specifications for length and outlet location
- Patented Alumaglas™ for superior performance (electric option)
- UL 325 Recognized Component
- 1-year warranty
- Made in USA
- Color: Black
- Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
- Max. Length: Electric - 100 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
- Sensitivity: Nominal 8-13 lbf
- Lead Wire: SJTO, 22 gauge, 2ft. length
- Wire Outlet Location: Universal end plug
- Electrical Maximum: 24 volt AC or DC, 1/2 amp
- Electrical Configuration: Normally open
- Operating Temperature: Meets or exceeds UL requirement
- Exterior Materials: Flexible PVC
- Contact Element: Alumaglas®
- Agency Approvals: UL 325 Recognized Component
| Manufacturer Part Number | ME117 |
|---|---|
| Brand | Miller Edge |
