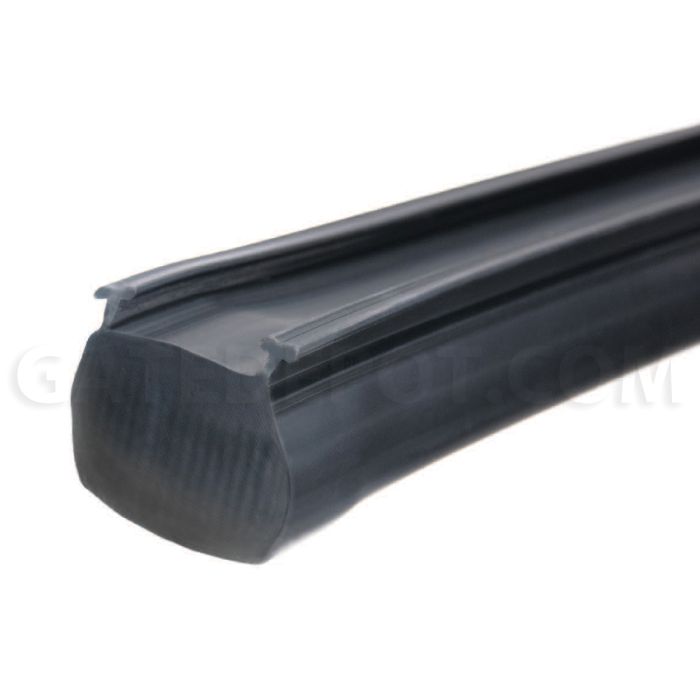

Miller Edge ME116 Sensing Edge
Choose 2 or 4 Wire
Choose Left, Right, or Universal Outlet Locations
• Designed to be used with CHI Sectional Door Channel
• Can Fit Nearly All Doors from 1-1/2" - 2" Thick
• Black
• Priced per foot
• Call for Air-wave, Pneumatic, and Dummy configurations
• Minimum order 4 Feet
MPN:
ME116
$30.85
SKU
MLE-me116
Product Details
The ME116 sensing edge is specifically designed for 1-3/4 inch thick doors with a bottom retainer. This slide-in style edge features a double-T mounting design, which provides superior stability. ME116 is resistant to flame, water, and most common greases and oils. When touch activated, this pressure sensitive edge sends an immediate signal to controls to stop and/or reverse operation.
APPLICATIONS
- Commercial sectional doors
FEATURES
- Easy to install
- Optimum size for 1-3/4 inch thick surfaces
- Double-T design for added stability
- Mounts vertically or horizontally
- Sealed assembly impervious to dust and debris
- Custom manufactured to user specifications for length and outlet location
- Patented Alumaglas™ for superior performance (electric option)
- UL 325 Recognized Component
- 1-year warranty
- Made in USA
- Color: Black
- Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
- Max. Length: Electric - 100 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
- Sensitivity: Nominal 7-12 lbf
- Lead Wire: SJTO, 18 gauge, 2ft. length, or 22 gauge universal
- Wire Outlet Location: Left, right, end, top or universal end plug
- Electrical Maximum: 24 volt AC or DC, 1/2 amp
- Electrical Configuration: Normally open
- Operating Temperature: Meets or exceeds UL requirement
- Exterior Materials: Flexible PVC
- Contact Element: Alumaglas®
- Agency Approvals: UL 325 Recognized Component
| Manufacturer Part Number | ME116 |
|---|---|
| Brand | Miller Edge |
