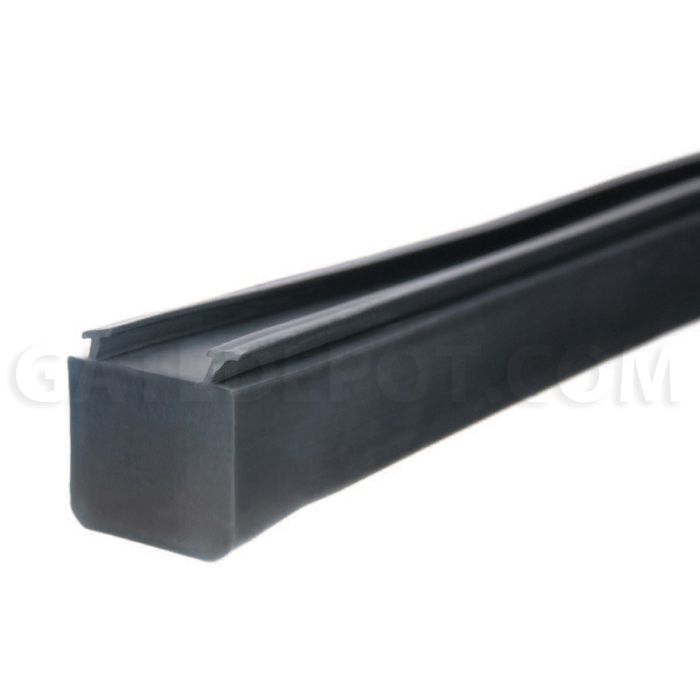

Miller Edge ME112 Sensing Edge

ME112 is a pressure sensitive sensing edge that is manufactured to user specifications for length and outlet location. When touched activated, ME112 sends an immediate signal to operator controls to stop and/or reverse door operation. This sensing edge retrofits easily to 1-3/8-inch sectional doors with accepting bottom bar, as well as multiple compatible mounting channels. This slide-in style edge features a double-T mounting design, which provides superior stability for sectional overhead commercial doors and material handling system applications.

APPLICATIONS

• Commercial sectional doors
• Material handling systems

FEATURES

• Easy to install
• Optimum size for 1-3/8 inch thick surfaces
• Double-T design for added stability
• Mounts vertically or horizontally
• Sealed assembly impervious to dust and debris
• Mounting channel options
• Custom manufactured to user specifications for length and outlet location
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

• Color: Black
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Max. Length: Electric - 100 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
• Sensitivity: Nominal 6-10 lbf
• Lead Wire: SJTO, 22 gauge, 2ft. length
• Wire Outlet Location: Left, right, end or top
• Electrical Maximum: 24 volt AC or DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: Meets or exceeds UL requirement
• Exterior Materials: Flexible PVC
• Contact Element: Alumaglas®
• Agency Approvals: UL 325 Recognized Component
