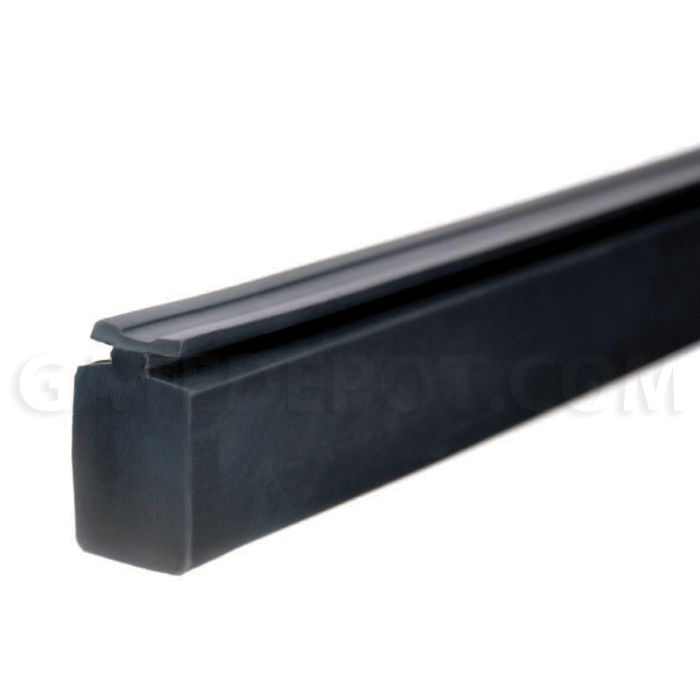

Miller Edge ME111 Sensing Edge

The 1-1/2-inch tall ME111 sensing edge is an ideal solution for counter grilles and shutters in environments that have an uneven surface. The tall profile helps adhere the edge more uniformly to the uneven surface. When touch activated, ME111 sends an immediate signal to stop and or reverse operation. This slide-in style edge has multiple mounting channel options, allowing for easy installation with any style counter shutter or grille.

APPLICATIONS

• Rolling counter shutters and grilles
• Barrier arms
• Machine guarding
• Conveyor systems

FEATURES

• 1-1/2 inch tall profile for optimum contact with the floor or counter surface
• Offers cushioning for conveyors and machine guarding applications
• Easy to install
• Mounts vertically or horizontally
• Sealed assembly impervious to dust and debris
• Various mounting channel options
• Custom manufactured to user specifications for length and outlet location
• Patented Alumaglas™ for superior performance (electric option)
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

• Color: Black
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Max. Length: Electric - 100 ft., Air-Wave - 30 ft.
• Sensitivity: Nominal 4-7 lbf
• Lead Wire: SJTO, 22 gauge, 2ft. length
• Wire Outlet Location: Left, right, end or top
• Electrical Maximum: 24 volt AC or DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: Meets or exceeds UL requirement
• Exterior Materials: Flexible PVC
• Contact Element: Alumaglas®
• Agency Approvals: UL 325 Recognized Component
