Miller Edge ME110 Sensing Edge
Choose 2 or 4 Wire
Choose Left, Right, or End Outlet Locations
• Pinch Protection For Light-Weight Grille & Shutters
• Black
• Priced per foot
• Call for Air-wave and Dummy configurations
• Minimum order 4 Feet
MPN:
ME110
$23.15
SKU
MLE-me110

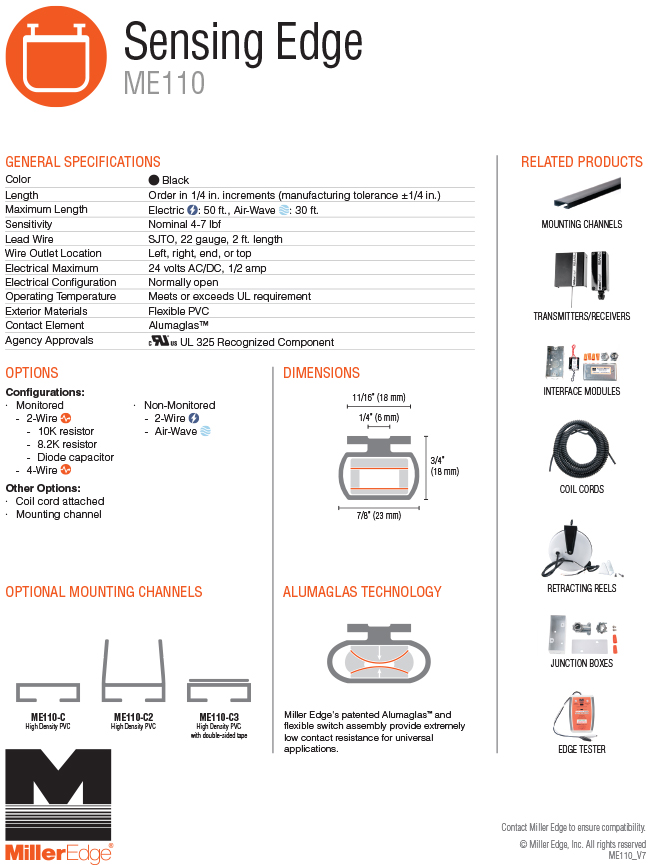

Product Details

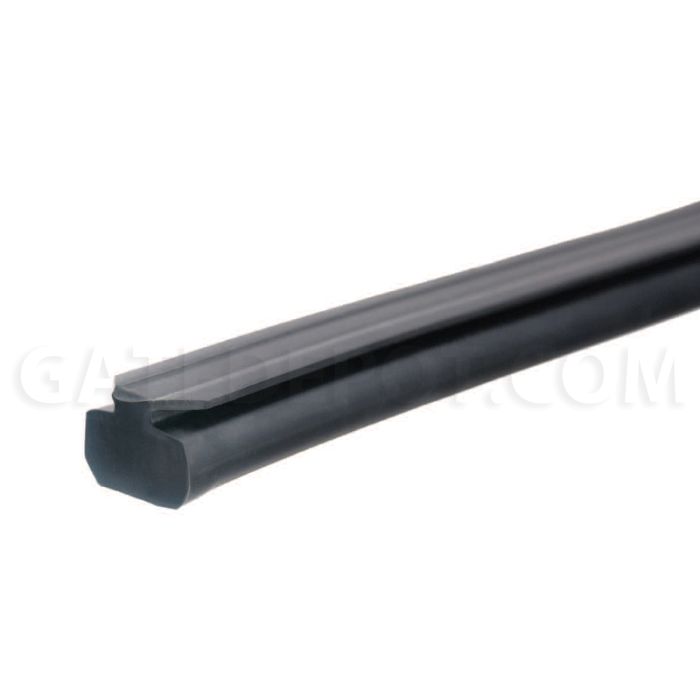

ME110 is a streamlined sensing edge designed for applications where performance and appearance are key factors. When touched lightly, or at an angle, ME110 sends an immediate signal to stop and/or reverse operation. This slide-in style edge has multiple mounting channel options, allowing for easy installation with any style counter shutter or grille.
APPLICATIONS
- Rolling counter shutters and grilles
- Machine guarding
- Conveyor systems
FEATURES
- Small profile; ideal for doors up to 1 inch thick
- Compact design; excellent for safeguarding machines and conveyors
- Easy to install
- Sealed assembly impervious to dust and debris
- Various mounting channel options
- Custom manufactured to user specifications for length and outlet location
- Patented Alumaglas™ for superior performance (electric option)
- Mounts vertically or horizontally
- UL 325 Recognized Component
- 1-year warranty
- Made in USA
- Color: Black
- Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
- Max. Length: Electric - 50 ft., Air-Wave - 30 ft.
- Sensitivity: nominal 4-7 lbf
- Lead Wire: SJTO, 22 gauge, 2ft. length
- Wire Outlet Location: Left, right, end or top
- Electrical Maximum: 24 volt AC or DC, 1/2 amp
- Electrical Configuration: Normally open
- Operating Temperature: Meets or exceeds UL requirement
- Exterior Materials: Flexible PVC
- Contact Element: Alumaglas®
- Agency Approvals: UL 325 Recognized Component
| Manufacturer Part Number | ME110 |
|---|---|
| Brand | Miller Edge |
