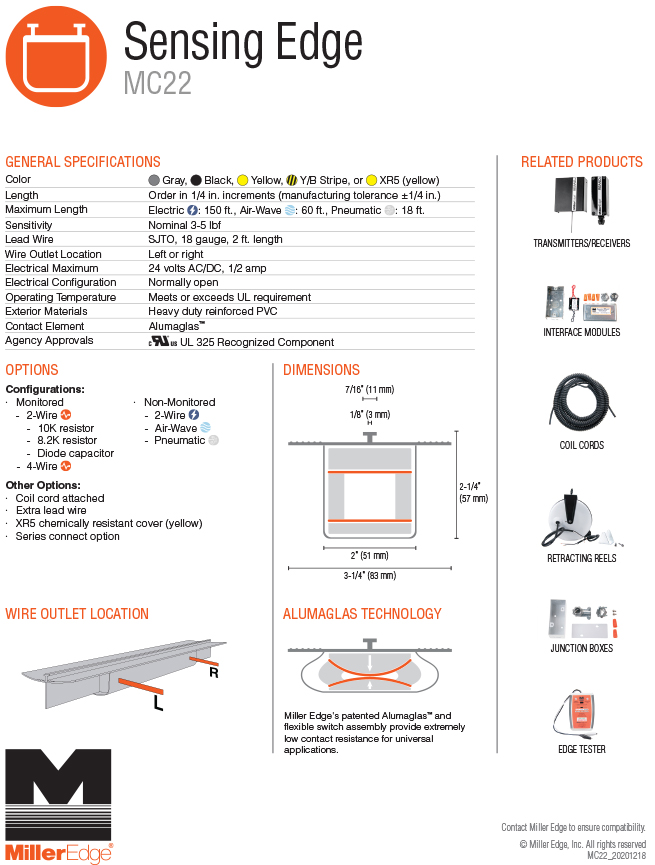

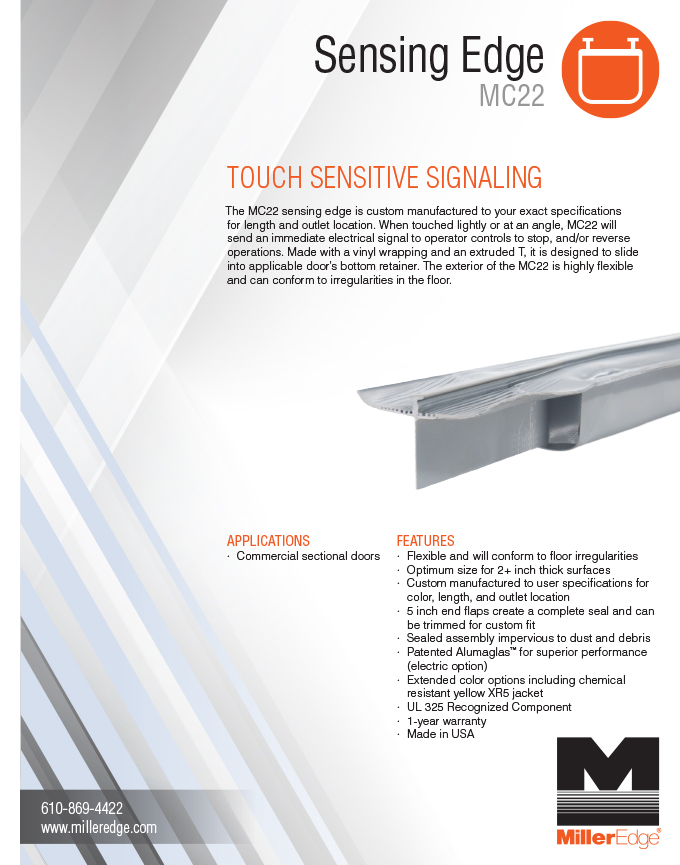

MIller Edge MC22 Sensing Edge - Solid Cover

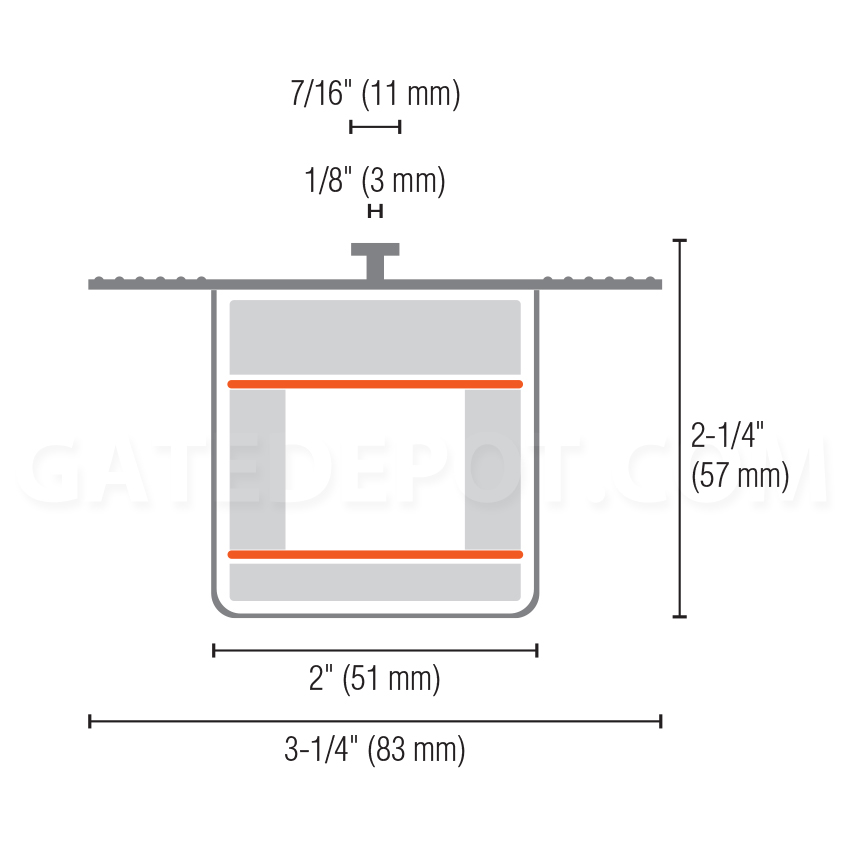

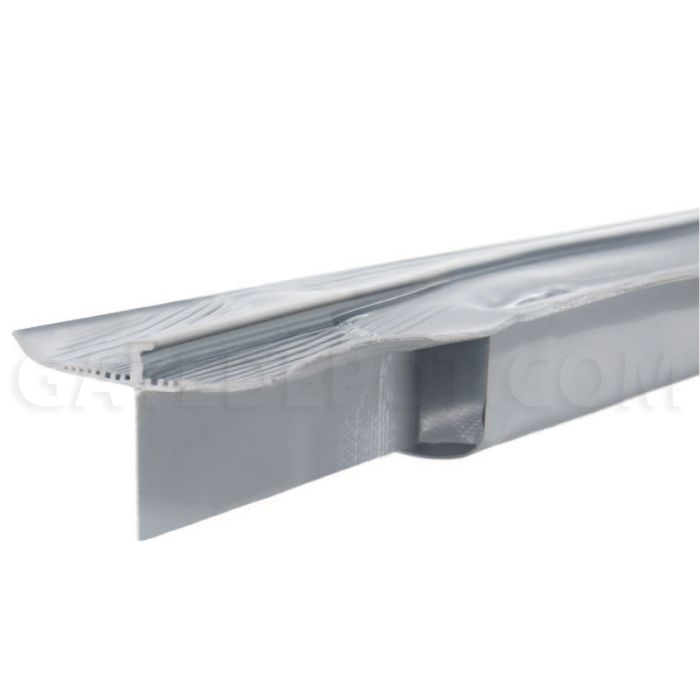

The MC22 sensing edge is custom manufactured to your exact specifications for length and outlet location. When touched lightly or at an angle, MC22 will send an immediate electrical signal to operator controls to stop, and/or reverse operations. Made with a vinyl wrapping and an extruded T, it is designed to slide into applicable door's bottom retainer. The exterior of the MC22 is highly flexible and can conform to irregularities in the floor.

APPLICATIONS

• Commercial sectional doors

FEATURES

• Flexible and will conform to floor irregularities
• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color, length, and outlet location
• 5 inch end flaps create a complete seal and can be trimmed for custom fit
• Sealed assembly impervious to dust and debris
• Patented Alumaglas™ for superior performance (electric option)
• Extended color options including chemical resistant yellow XR5 jacket
• UL 325 Recognized Component
• 1-year warranty
• Made in USA

• Color: Gray, Black, Yellow, Y/B Stripe, or XR5 (yellow)
• Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
• Maximum Length: Electric - 150 ft., Air-Wave - 60 ft., Pneumatic - 18 ft.
• Sensitivity: Nominal 3-5 lbf
• Lead Wire: SJTO, 18 gauge, 2 ft. length
• Wire Outlet Location: Left or right
• Electrical Maximum: 24 volts AC/DC, 1/2 amp
• Electrical Configuration: Normally open
• Operating Temperature: Meets or exceeds UL requirement
• Exterior Materials: Heavy duty reinforced PVC
• Contact Element: Alumaglas™
• Agency Approvals: UL 325 Recognized Component
