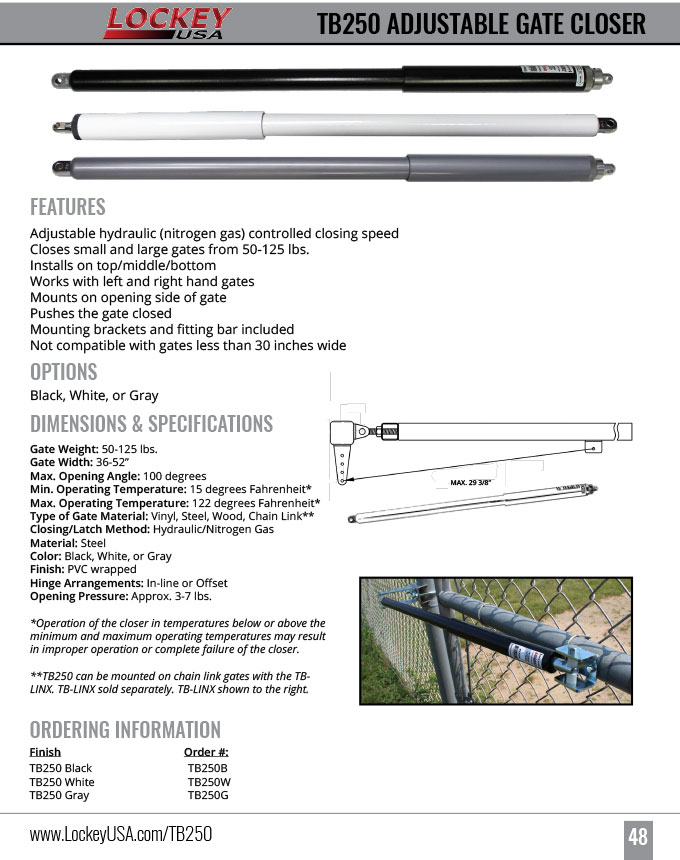

Lockey TB250+-TB450+-TB650+ Adjustable Hydraulic Pedestrian Gate Closer Series

TB250+ - Light Duty

• 36 - 52"
• 50 - 125 Lbs.

TB450+ - Medium Duty

• 40 - 64"
• 75 - 175 Lbs.

TB650+ - Heavy Duty

• 44 - 72"
• 150 - 250 Lbs.

There is a 25% Restock Fee on all products

Features:

• Closes large and small gates from 50-250 lbs. easily and gently
• Adjustable Hydraulic/Nitrogen Gas controlled closing speed
• Installs on side, top, middle or bottom of right or left hand gates
• Mounts on opening side of gate, pushing the gate closed
• Maximum opening angle of 100 degrees (LockeyUSA recommends use of a mechanical stop to restrict opening angle)
• Mounting brackets and fitting bar included
• Black, white or gray PVC coated steel
• Not compatible with gates less than 30 inches wide

Technical Overview:

• TB200: 50-125 lbs., 36-52"
• TB400: 75-175 lbs., 40-64"
• TB600: 150-250 lbs., 44-72"
• Max. Opening Angle: 100 degrees
• Min. Operating Temperature: 15 degrees Fahrenheit*
• Max. Operating Temperature: 122 degrees Fahrenheit*
• Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
• Closing/Latch Method: Hydraulic/Nitrogen Gas
• Material: Steel
• Colors: Black, white or gray PVC coated
• Hinge Arrangements: In-line or Offset
• Opening Pressure: Approx. 8-18 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**Mounts on Chain Link with TB-LINX (sold separately)
