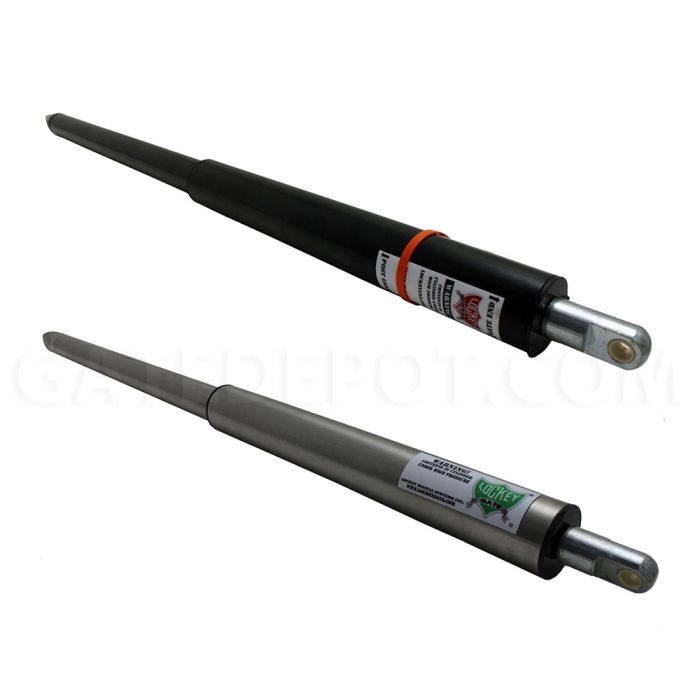

Lockey TB200-TB400-TB600 Hydraulic Pedestrian Gate Closer Series
Available in Steel or Stainless Steel
Choose Light, Medium, or Heavy Duty
• Closes small and large gates from 50-250 lbs.
• Hydraulic/Nitrogen Gas controlled closing speed
• Installs on top/middle/bottom
• Works with left and right hand gates
• Mounts on opening side of gate
• Pushes the gate closed
• Mounting brackets and fitting bar included
• Not compatible with gates less than 30 inches wide
• There is a 25% Restock Fee on all products
From $371.30
To $2,941.80
SKU
LKY-tbx00-bundle-obs1
Product Details
There is a 25% Restock Fee on all products
Features:
- Closes large and small gates from 50-250 lbs. easily and gently
- Hydraulic/Nitrogen Gas controlled closing speed
- Installs on side, top, middle or bottom of right or left hand gates
- Mounts on opening side of gate, pushing the gate closed
- Maximum opening angle of 100 degrees (LockeyUSA recommends use of a mechanical stop to restrict opening angle)
- Mounting brackets and fitting bar included
- Black powder coated steel or stainless steel finish
- Not compatible with gates less than 30 inches wide
Technical Overview:
- TB200: 50-125 lbs., 36-52"
- TB400: 75-175 lbs., 40-64"
- TB600: 150-250 lbs., 44-72"
- Max. Opening Angle: 100 degrees
- Min. Operating Temperature: 15 degrees Fahrenheit*
- Max. Operating Temperature: 122 degrees Fahrenheit*
- Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
- Closing/Latch Method: Hydraulic/Nitrogen Gas
- Material: Steel or Stainless Steel
- Colors: Black Powder Coat or Stainless Steel
- Hinge Arrangements: In-line or Offset
- Opening Pressure: Approx. 6-12 lbs.
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**Mounts on Chain Link with TB-LINX (sold separately)
| Brand | Lockey |
|---|
