Lockey Edge Panic Shield Kits - Security Kits

Lockey ED Edge Style Panic Shield

• Powder Coated
• 16 Gauge Electro-Galvanized Steel
• Dimensions: 24" L x (28" - 54") W x 1/2" D

Lockey ED-SB Edge Style Strike Bracket

• 1/4" Steel Strike Bracket for panic hardware
• Fits up to a 3" post
• Adjustable
• 1/4" Steel
• Powder Coated
• Dimensions: 4 1/2" L x 3 1/2" W x 1 1/4" D

Lockey 285P Keyless Keypad Lock

• Keyless Panic Trim with 2835 Lock Body
• Takes the place of a keyed cylinder with a flat tailpiece
• One user code with thousands of possible combinations
• Passage Function
• Dimensions: 5 5/8" L x 1 5/8" W x 2 1/4" D
• Door Thickness: 1 3/16" to 2"
• Material: Zinc-plated steel
• Teflon coated stainless steel interior components
• For Exterior & Interior Use
• Weather Resistant
• Lifetime Mechanical Warranty
• Available in 9 Finishes

Lockey EDGB200 Edge Style 285P Gate Box

• Powder Coated
• Dimensions: 7" L x 1 3/4" W x 1 1/2" D

Lockey MAX Max Guard

• Mounts above panic bar
• Prevents tampering from outside the gate
• Powder Coated
• 16 Gauge Electro-Galvanized Steel
• Dimensions: 26" L x 4 3/4" W x 3/4" D

Lockey LP Latch Protector

• Protects Panic Bar Latch from tampering
• Powder Coated
• 16 Gauge Electro-Galvanized Steel
• Dimensions: 23 1/2" L x 6" W x 2 1/2" D

Lockey EDLINX158JAMBSTOP Jamb Stop

• Fits 1 5/8" gate post
• Prevents the gate from swinging through
• Extends out 2" to cover the gap between the gate post and fence post

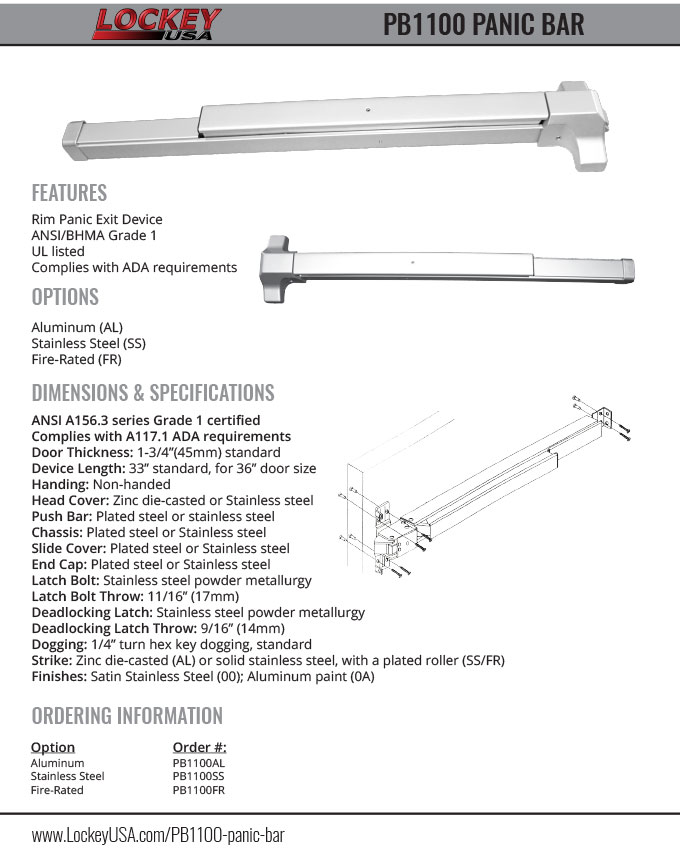

Lockey PB1100 Features

• Rim Style Exit Device
• Grade 1 Certified ANSI/BHMA A156.3 Series
• Complies with ANSI A117.a ADA requirements
• UL/cUL Listed
• Weather Resistant
• Narrow Stile: 2 1/2"
• Door Thickness 1 3/4" (Standard)
• Panic Bar Length: 33" (36" Doors) or 42" (48" Doors)
• Field Sizable: Can be cut to 27"
• Material: Plated Steel or Stainless Steel with Zinc or Stainless Steel Head Cover
• Latch Bolt: Stainless Steel Powder Metallurgy with 9/16" Throw
• Deadlocking Latch: Stainless Steel Powder Metallurgy with 9/16" Throw
• PB1100FR - UL/cUL Listed 3 hr. fire-rated 10C, UBC -2 (1997) (Please Note: PB1100FR cannot be dogged)

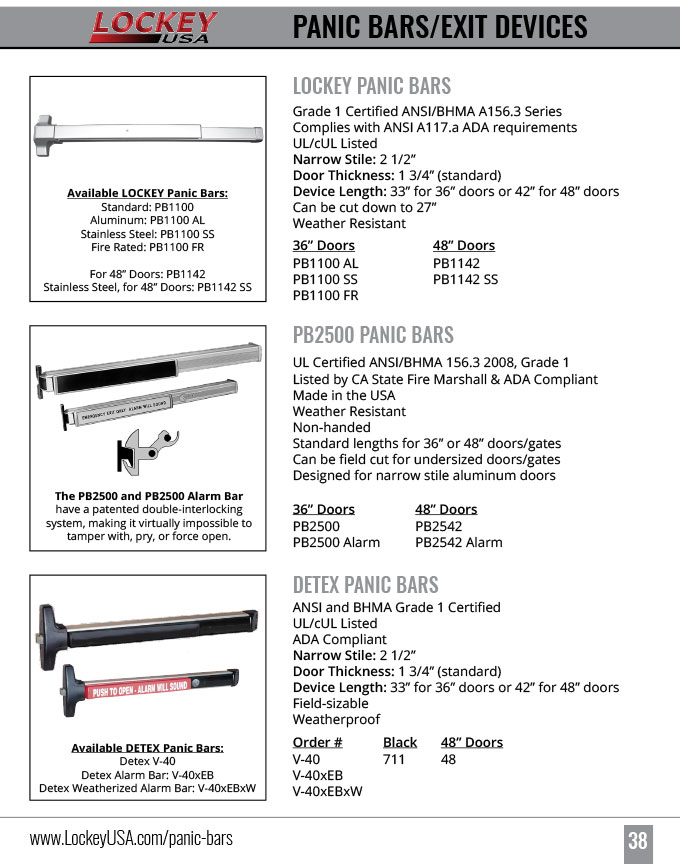

Lockey PB1100 Panic Bars

• Lockey PB1100 33" Bar
• Lockey PB1100FR 33" Fire Rated Bar
• Lockey PB1100SS 33" Stainless Steel Bar
• Lockey PB1142 42" Bar
• Lockey PB1142SS 42" Stainless Steel Bar

Detex V-40 Features

• Types: Wood, Hollow, Metal, Fiberglass or Aluminum
• Door Thickness: Fits standard 1 3/4" - 2 1/4"
• Machine and self-drilling screws (standard)
• Panic Bar Length: 33" (36" Doors) or 42" (48" Doors)
• ANSI and BHMA Grade 1 Certified
• UL/cUL Listed
• ADA Compliant

Detex V-40 Panic Bars

• Detex V-40 33" Bar
• Detex V-40x711 33" Black Bar
• Detex V-40xW 33" Weatherized Bar
• Detex V-40xEBxW 33" Weatherized Alarm Bar
• Detex V-40xEBxW711 33" Black Weatherized Alarm Bar
• Detex V-40x48 42" Bar
• Detex V-40x711x48 42" Black Bar
• Detex V-40xEBxWx48 42" Weatherized Alarm Bar
• Detex V-40xEBxW711x48 42" Black Weatherized Alarm Bar
