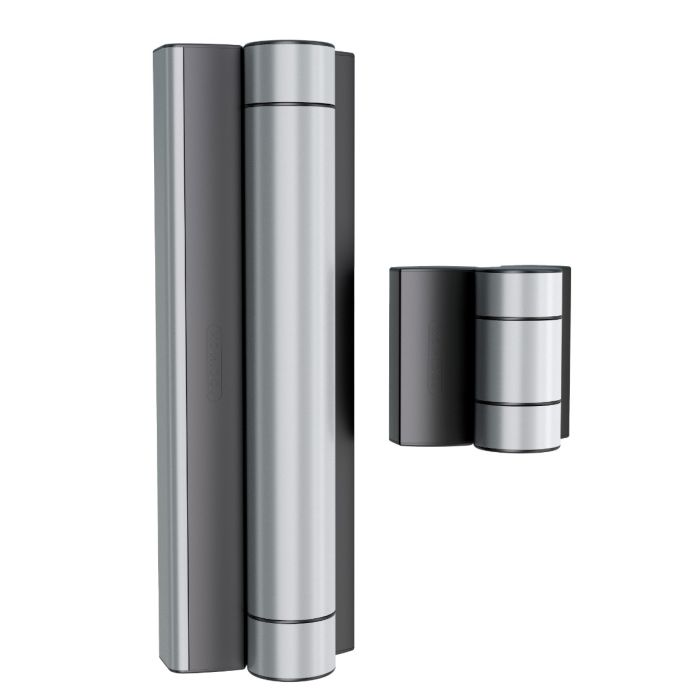

Locinox P00042163 Magnus ADA-Compliant Motorized Hinge & Gate Closer in One for Pedestrian Gates

MAGNUS is an ADA-compliant motorized hinge and gate closer in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

• Fast and easy fixation with Quick-Fix bolts
• 2-dimensional adjustment: 2 × 0.79" (width and height)
• Motorized gate closer with integrated electronics
• Steel gear box
• Anodized aluminium cover
• Compact and vandal-proof design
• Motor voltage: 24V DC
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use - to be combined with a lock
• Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
• Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
• Input main power supply: 110V AC to 240V AC
• Configuration via app
• Tested up to 500 000 cycles
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• 6-1/2ft cable between motor and connection module
• EN 16005 Compliant
• 100 Nm torque
• For pedestrian gates up to 5 ft wide and 440 lbs
