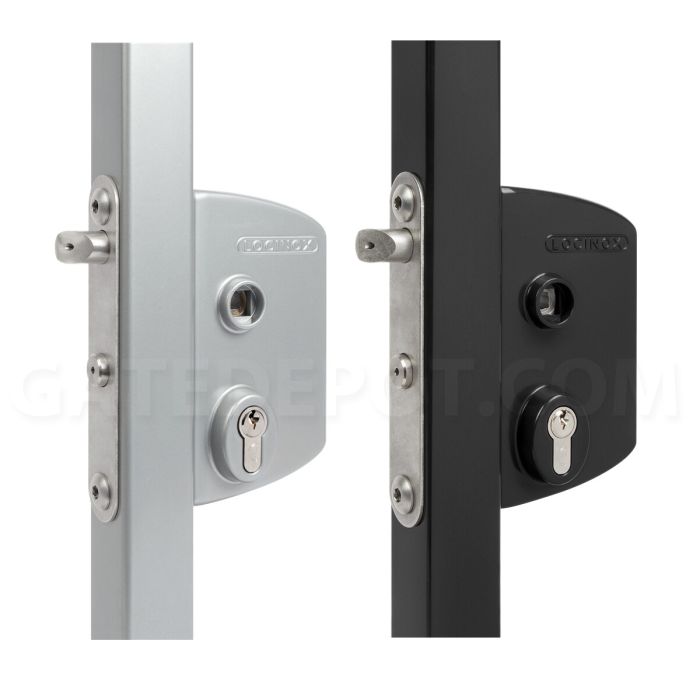

Locinox LPKQ-U2L Anti-Panic Gate Lock

Stainless steel superior anti-panic lock with aluminium housing. EN179 certified configuration possible with LPKQ U2 for 1-37/64" & 2-23/64" gate frames with SAKL keep, 3006A-2 handle and 3012-54-STD- cylinder. Escape or exit from inside is possible at all times by operating the handle. Mechanical access from the outside is always possible by operating the cylinder. The 25/32" continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 29/32" throw guarantees a secure locking. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• 29/32" throw of the dead bolt, in 1 turn of the key
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• 2-23/64" center distance of the bolts
• Continuous adjustment of the daybolt up to 20 mm (25/32") without dismounting the lock box
• Stainless steel mechanism
• Tested up to 500,000 movements
• EN179 certified configuration available
• Panic function E / Switch function
