Locinox H-Wood Mortise Lock - Wooden Gates

Be the first to review this product

• Key-operated self-latching bolt • Mechanism, hook, frontplate, latchbolt: stainless steel • Stainless steel hook for secure anchoring • Throw of the hook: 5/16" (33 mm) • Center-distance cylinder <=> handles = 3-5/8" (92 mm) • 2-3/8" (60 mm) backset • Lock mechanism with cover plate against dirt penetration • Sets include: Handle, Cylinder, Keep & Covershield • There is a 10% Restocking Fee on All Products • 3 Day Lead Time

From $166.75

To $365.20

SKU

LCX-h-wood-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize Locinox H-Wood Mortise Lock - Wooden Gates

Locinox H-Wood-Set Lock Set

Locinox P00014321 H-WOOD-SET-60-I Mortise Lock Set - 2-3/8" Cylinder $166.75

• Lock Set w/ 2-3/8" Cylinder • Includes 3006I-H Handle, 3012-60-STD-VSZ Cylinder, SHKW-ALUM Keep & 3020-HYB-A2 Stainless Steel Cover Shield • Key-operated self-latching bolt • Mechanism, hook, frontplate, latchbolt: stainless steel • Stainless steel hook for secure anchoring • Throw of the hook: 5/16" (33 mm) • Center-distance cylinder <=> handles = 3-5/8" (92 mm) • 2-3/8" (60 mm) backset • Lock mechanism with cover plate against dirt penetration • Sets include: Handle, Cylinder, Keep & Covershield • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees

GD# LCX-p00014321 MFR# P00014321

Quantity

Locinox P00014322 H-WOOD-SET-80-I Mortise Lock Set - 3-1/8" Cylinder $168.05

• Lock Set w/ 3-1/8" Cylinder • Includes 3006I-H Handle, 3012-80-STD-VSZ Cylinder, SHKW-ALUM Keep & 3020-HYB-A2 Stainless Steel Cover Shield • Key-operated self-latching bolt • Mechanism, hook, frontplate, latchbolt: stainless steel • Stainless steel hook for secure anchoring • Throw of the hook: 5/16" (33 mm) • Center-distance cylinder <=> handles = 3-5/8" (92 mm) • 2-3/8" (60 mm) backset • Lock mechanism with cover plate against dirt penetration • Sets include: Handle, Cylinder, Keep & Covershield • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees

GD# LCX-p00014322 MFR# P00014322

Quantity

Keep

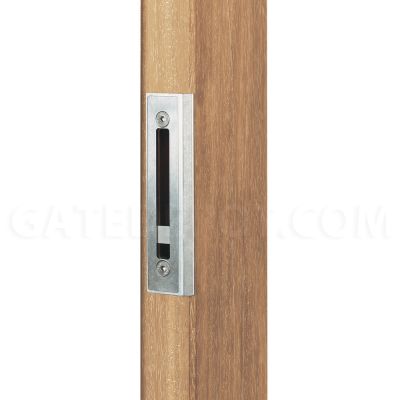

Locinox P00009491 SHKW-ALUM Hybrid Keep for Wooden Posts $30.40

• Aluminum • Stainless steel keep for Hybrid locks • With mounting screws for wood • Supplied with stop plate if integrated stop is not provided • For 40-60 mm gate profiles • Anchoring plate for hook • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees

GD# LCX-p00009491 MFR# P00009491

Quantity

* Required Fields

Your Customization

Locinox H-Wood Mortise Lock - Wooden Gates

In stock

Qty

$166.75

Summary

Overview

Product Details

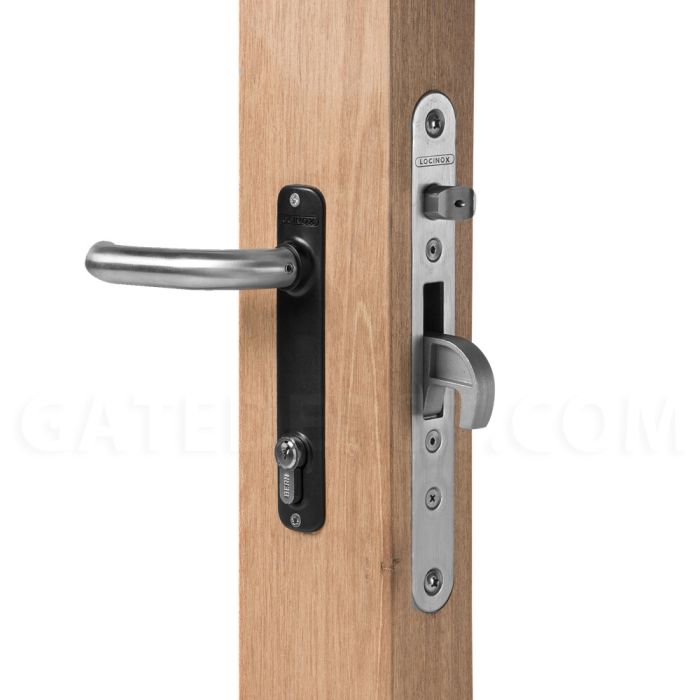

Insert lock made of high quality with 100% stainless steel mechanism. The massive stainless steel hook and adjustable latch bolt makes this a one of a kind lock. The combination of the hook (dead bolt) with the corresponding keep provides a secure anchoring of your gate. These locks can be used on metal or aluminium gates.

Easy left or right changing of the self-latching daybolt
Key-operated self-latching bolt
Adjustment of the latch bolt up to 3/4" (20 mm) continuous without dismounting the lock
Mechanism, hook, frontplate, latchbolt: stainless steel
Stainless steel hook for secure anchoring
Throw of the hook: 5/16" (33 mm)
Center-distance cylinder <=> handles = 3-5/8" (92 mm)
2-3/8" (60 mm) backset
Lock mechanism with cover plate against dirt penetration
Compatible with all Europrofile cylinders
Sets include: Handle, Cylinder, Keep & Covershield
