Locinox EIGHTYLOCK Insert Lock - 3-1/8" Profiles

Be the first to review this product
• 3-1/8" Profile / 2-23/64" Backset • Continuous adjustment of the daybolt up to 25/64" without dismounting the lock box • Key-operated self-latching bolt • Throw of the hook: 53/64" • Center-distance cylinder <=> handles = 3-5/8" • Handles, cylinder, covershield, and keep to be ordered separately • There is a 10% Restocking Fee on All Products • 3 Day Lead Time

From $82.80

To $532.75

SKU
LCX-eightylock-bundle
Add to Wish List Add to Compare
main product photo
VIEW MANUALS, BROCHURES & VIDEOS
Customize Locinox EIGHTYLOCK Insert Lock - 3-1/8" Profiles
• 3-1/8" Profile w/ 2-3/8" Backset - Metal Gates • 3-5/32" Profile / 2-23/64" Backset • Continuous adjustment of the daybolt up to 25/64" without dismounting the lock box • Key-operated self-latching bolt • Throw of the hook: 53/64" • Center-distance cylinder <=> handles = 3-5/8" • Handles, cylinder, covershield, and keep to be ordered separately • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00007972 P00007972
• 3-1/8" Profile w/ 2-3/8" Backset - Wood Gates • 3-5/32" Profile / 2-23/64" Backset • Continuous adjustment of the daybolt up to 25/64" without dismounting the lock box • Key-operated self-latching bolt • Throw of the hook: 53/64" • Center-distance cylinder <=> handles = 3-5/8" • Handles, cylinder, covershield, and keep to be ordered separately • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00007973 P00007973
• Black • 6 - 8 WEEK LEAD TIME • Stainless steel keep for square profiles as of 1-37/64" • Compatible with Fortylock, Fiftylock and Sixtylock insert locks • Including innovative Quick-Fix fixations and self drilling screws • Easy left or right changing • Elegant design: visible thickness of 5/16" • Adjustable stop plate for 1-37/64" to 2-23/64" gate frames • There is a 10% Restocking Fee on All Products • 6 - 8 WEEK LEAD TIME FOR BLACK KEEP • No Additional Tariff Fees
LCX-p00008635-9005 P00008635-9005
• Aluminum • Stainless steel keep for square profiles as of 1-37/64" • Compatible with Fortylock, Fiftylock and Sixtylock insert locks • Including innovative Quick-Fix fixations and self drilling screws • Easy left or right changing • Elegant design: visible thickness of 5/16" • Adjustable stop plate for 1-37/64" to 2-23/64" gate frames • There is a 10% Restocking Fee on All Products • 6 - 8 WEEK LEAD TIME FOR BLACK KEEP • No Additional Tariff Fees
LCX-p00008634 P00008634
• Black • Compatible with electric strike MODULEC-SF • Keep for square profiles • Innovative installation with Quick-Fix • Compatible with Fortylock, Fiftylock and Sixtylock insert locks • Vandal proof design: hook-in anchoring system prevents opening with a crowbar • Adjustable for gate profiles: 1-9/16" - 2-3/8" • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00009546-9005 P00009546-9005
• Aluminum • Compatible with electric strike MODULEC-SF • Keep for square profiles • Innovative installation with Quick-Fix • Compatible with Fortylock, Fiftylock and Sixtylock insert locks • Vandal proof design: hook-in anchoring system prevents opening with a crowbar • Adjustable for gate profiles: 1-9/16" - 2-3/8" • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00009545 P00009545
Each Lock Requires 2
• Stainless Steel Cover Shield / Silver • Cover shield for handle & cylinder holes • Standardised gate pattern: compatible with HWLB for Hybrid locks • Sold in Pairs • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00010182 P00010182
• Aluminum Cover Shield / Black • Cover shield for handle & cylinder holes • Standardised gate pattern: compatible with HWLB for Hybrid locks • Sold in Pairs • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00013574-9005 P00013574-9005
• Aluminum Cover Shield / Silver • Cover shield for handle & cylinder holes • Standardised gate pattern: compatible with HWLB for Hybrid locks • Sold in Pairs • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00010142-silv P00010142-SILV
• Polyamide Cover Shield / Black • Cover shield for handle & cylinder holes • Standardised gate pattern: compatible with HWLB for Hybrid locks • Sold in Pairs • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00010135 P00010135
• Black anodized aluminum handle pair with 4-3/4" long spindle for use with insert locks • Square 8 mm shaft (appx 5/16") • For 1-9/16" and 2" gate profiles • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00002052 P00002052
• Black • Free Exit & Blocking - Any Combination • Square 8 mm shaft (appx 5/16") • Center-distance cylinder <=> handles = 3-5/8" • Including fixation bolts for profiles from 1-7/16" to 2-9/16" • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00006200-9005 P00006200-9005
• Stainless steel handle pair with 4-3/4" long spindle • For use with Hybrid/Insert locks • Square 8 mm shaft (appx 5/16") • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00006365 P00006365
• Aluminum handle pair with 4-3/4" long spindle • For use with Hybrid/Insert locks • Special design of the handle avoids bumping of the hand against the stop plate • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00000750 P00000750
• Aluminum handle pair with 4-3/4" long spindle • For use with Hybrid/Insert locks • Square 8 mm shaft (appx 5/16") • There is a 10% Restocking Fee on All Products • 3 Day Lead Time • No Additional Tariff Fees
LCX-p00006213 P00006213

* Required Fields

Your Customization
Locinox EIGHTYLOCK Insert Lock - 3-5/32" Profiles
Locinox EIGHTYLOCK Insert Lock - 3-1/8" Profiles

In stock

$82.80

Summary

    Product Details

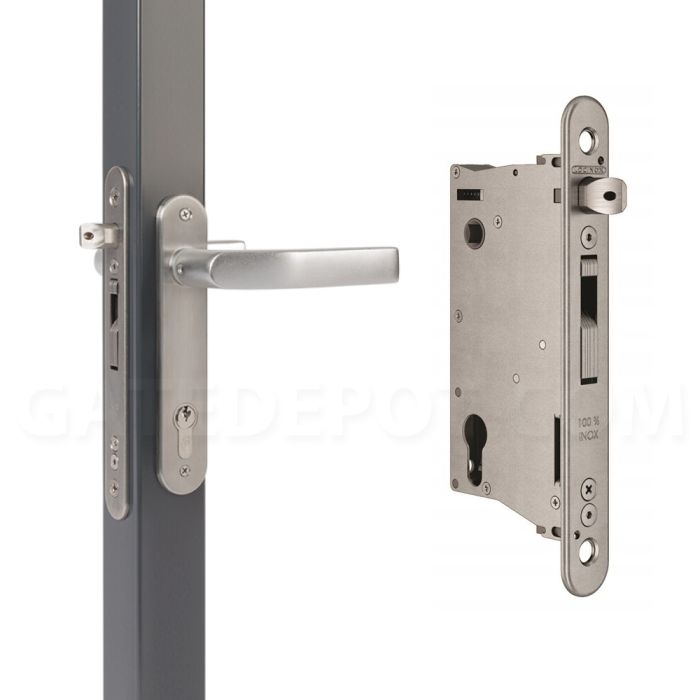

    Prime insert lock with 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the correct keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented "Click-It" system the lock is mounted in seconds.

    • Stainless steel lock mechanism with cover plate against dirt penetration
    • Mechanism, hook, frontplate, latchbolt: stainless steel
    • Backset 2-23/64", for mounting in profiles of 3-5/32" depth or more
    • Continuous adjustment of the daybolt up to 25/64" without dismounting the lock box
    • Key-operated self-latching bolt
    • Easy left or right changing of the self-latching daybolt
    • Throw of the hook: 53/64"
    • Center-distance cylinder <=> handles = 3-5/8"
    • Available with 2-1/8", 2-3/8", and 3-1/8" cylinder
    • Handles to be ordered separately
    • Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
    Specification
    Specifiction
    Brand Locinox
    Accessories

    Showcased Accessories

    • Touch Bars & Door Loops
    • Gate Lock Accessories
    • All Products
    Manuals & Resources

    Product Manuals

    locinox-eightylock-manual_2022-02-23_Rev_0 (1.69 MB)

    Product Brochures

    locinox-eightylock-brochure (1.18 MB)
