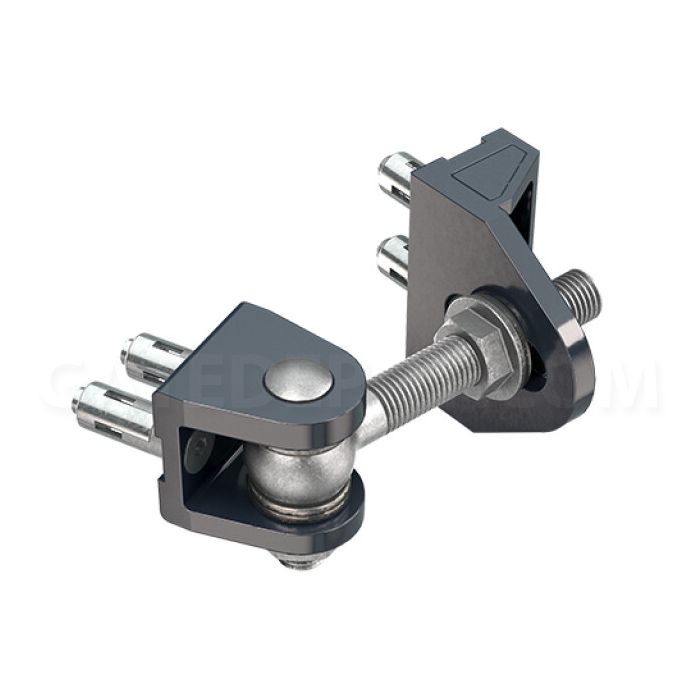

Locinox BOLTONHD-4D Adjustable Hinge - 4-Way / 180°
Choose M12 or M16 Eyebolt
Available w/ Quick Fix or Bolt Through Fixing
• M12 up to 220 Lbs / M16 up to 440 Lbs
• Vandal-proof eyebolt & crossbolt
• 180° opening
• 9/16" height / 1" depth adjustable
• Max width of the gate: 6-1/2 ft
• Sold in Pairs
• There is a 10% Restocking Fee on All Products
• 3 Day Lead Time
From $69.35
To $274.30
SKU
LCX-boltonhd-4d-bundle
Product Details
180° hinge which can quickly be mounted without any welding being required. It offers all advantages of the GBMU4D range: vandal-proof, adjustment of height, depth and distance between gate and post, left/right interchangeable so it can be used for both left and right turning gates. BOLTONHD-4D is available in M12 and M16, and always in 2 versions: one with Quick-Fix on both sides and one with Quick-Fix on the post, and on gate side a bolt through fixing for gate frames from 40 to 60 mm.
- Vandal-proof eyebolt & crossbolt
- 180° opening
- Eliminates the need to stock left and right swinging gates
- 9/16" adjustable in height
- 1" adjustable in depth
- U clamp and GRIP in aluminum
- Hot-dip galvanized eyebolt and crossbolt
- Max width of the gate: 6-1/2 ft
| Brand | Locinox |
|---|
