Linear ACP00937 AE-100 Telephone Entry System

The AE-100 Commercial Single Door Telephone Entry System is designed for use as a primary access control device for apartments, condominiums, and offices with up to 125 residents.

The system can be used in a lobby or outside. Surface, recessed, and pedestal mounting options are supported. The system utilizes full duplex telephone communications between visitors and residents for granting access.

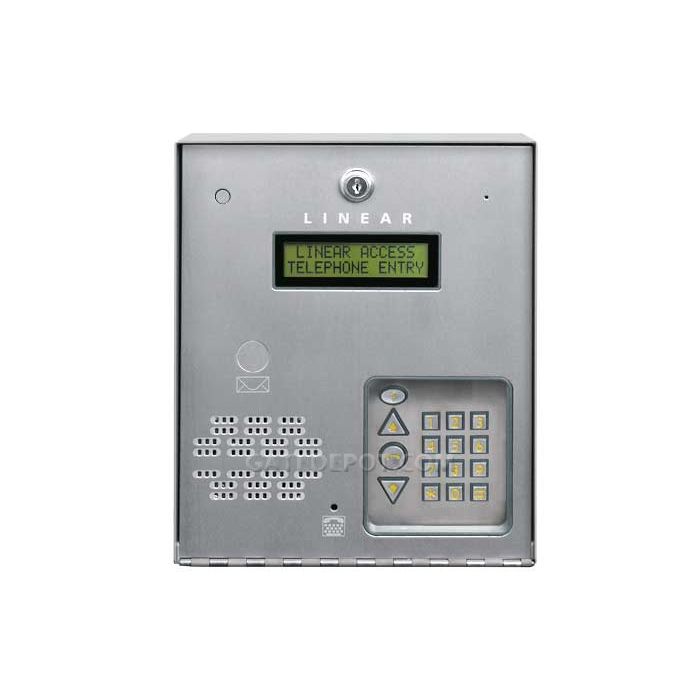

Housed in a locked, rugged stainless steel faced enclosure, the AE-100 features a lighted 12-key telephone style keypad and four operation buttons all with bright, easy-to-see graphics. The backlit two-line directory LCD display scrolls a programmable welcome message and shows the directory Names and Directory Codes.

The system contains a built-in microphone, tamper resistant speaker, and a TTY connector for the hearing impaired. The heavy duty access relay can control electric door strikes, magnetic locks, door & gate operators, or barrier gates.

Multi-lingual display programming prompts and voice help is available with a choice of English, Spanish, French-Canadian, or Portuguese language selection for the system. The system can be programmed locally using the keypad, or remotely with a touch tone telephone.

Optional features supported are provisions for postal lock and color CCTV camera installation (Model CCM-1A).

The AE-100 is powered from a 16 VAC plug-in transformer and supports an optional internal rechargeable 1.2 amp/hour backup battery. The battery charging circuit will support an external backup battery with up to 7 amp/hour capacity.

Features

• Installation choices: surface mount, recessed, gooseneck
• Stainless steel front panel
• Telephone style keypad with lighting
• Accepts a total of 125 directory listings or stand-alone entry codes
• TTY jack for connection to text communication for the hearing impaired
• Simple network capability with up to four units – allows transferring programming data from "master" unit to other sub-units
• Two-line-16-character LCD display
• Removable terminal blocks
• Form "C" access relay rated at 10 amps AC and 7 amps DC @ 30 volts
• Load shed circuitry protects backup battery
• Dimensions: 9.75" W x 11.75" H x 3.5" D
• Order number: ACP00937
