Linear AAE00331 EXA-2000 Directional Remote Antenna

The Model EXA-2000 Directional Remote Antenna is designed to enhance the radio range of Linear’s receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-2000 can be mounted either vertically or horizontally.

NOTE: Generally, the higher the antenna is mounted above ground level, the better the radio range will be.

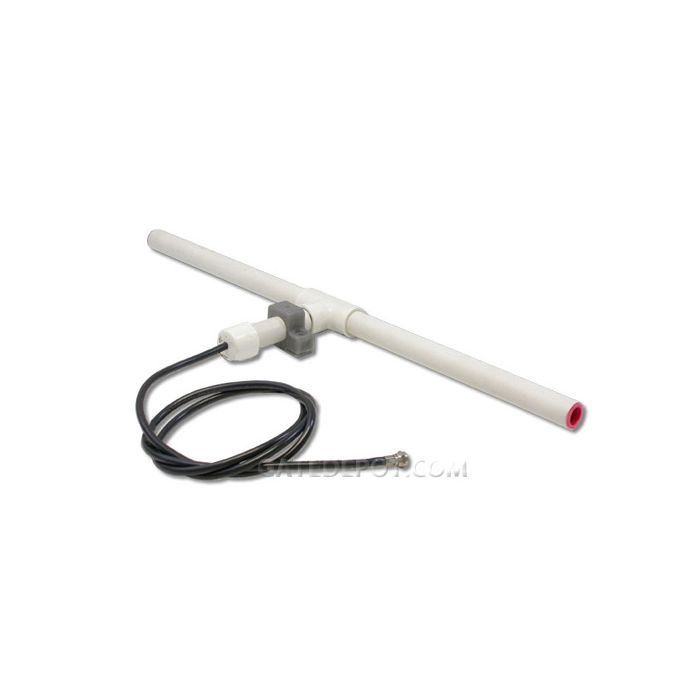

The EXA-2000 is a 1/2 wave, center fed, antenna composed of two parts: an antenna assembly with a ten-foot, 75-ohm coaxial cable with an F connector and two mounting brackets. The cable connects to the F connector on the receivers. If the antenna must be mounted further than ten feet from the receiver, an additional extension cable of 15 feet may be used for a maximum cable run of 25 feet. Because of the cable resistance, the performance of the EXA-2000 may be degraded by using more than 25 feet of cable.

*All products require a 1 week lead time

• Compatible with all Linear receivers with Type F antenna connector
• Receives signals in 288 to 320 MHz range
• Directional remote antenna
• Includes 10 feet of coax
• Clamp for mounting
• Dimensions: 21”w x 5”h x 1.5”d
