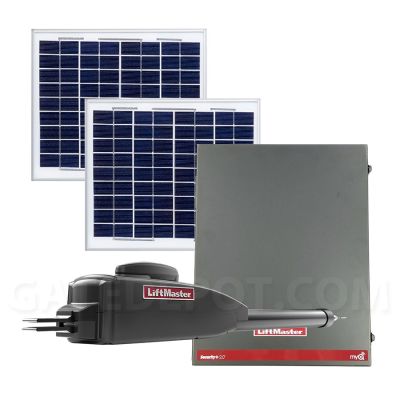

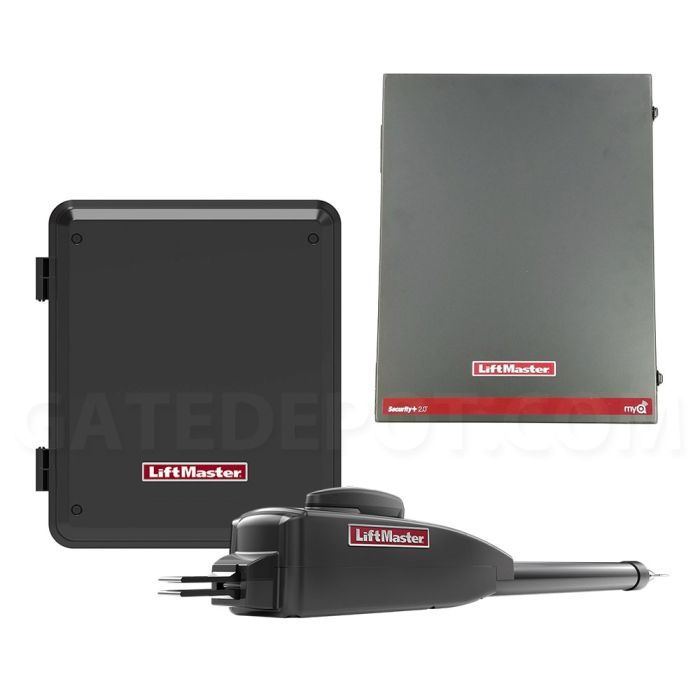

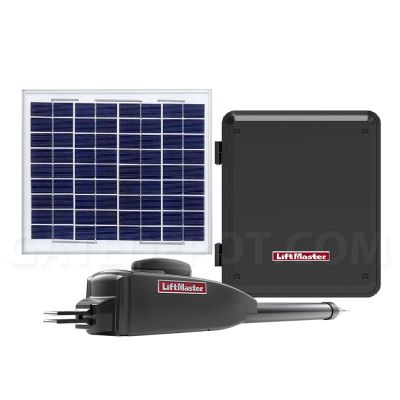

LiftMaster LA412 Solar Linear Arm Operator

The most solar optimized swing gate operator on the market delivers unmatched performance, power and reliability when and where you need it to quickly and safely access your property.

Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.

Suitable Gate Dimensions:

LA412XL20 Includes:

CONNECTIVITY

MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App. Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars.

PERFORMANCE

• Battery Backup secures and safeguards your property by providing up to 400 cycles or up to 97 days of standby power when the power is down
• P3 Motors®—purpose-built motor designed to meet your applications' requirements
• Solar-optimized ultra-reliable system delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance
• Receive up to 126 days of standby time without recharging
• Soft start/stop operation
• Commercial-duty cast-aluminum housing
• Wormgear reduction, precision-machined all-metal gear
• Electronic limit setting
• 2-digit LED diagnostic display
• Keyed manual disconnect
• 2 auxiliary power outlets
• Party Pass—selectable hold-open feature
• Bi-part delay
• Surge suppression/lightning protection up to 50 ft. away

SAFETY

• Includes Monitored Retro-Reflective Photo Eye (LMRRU)
• Monitored safety inputs with colored terminal blocks (3 on main board, 3 on optional expansion board)
• UL /cUL Listed, tested to the most stringent industry guidelines
• Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used
• 3-channel receiver—OPEN/CLOSE/STOP
• Compatible with HOMELINK® version 4 and higher
• Receiver stores up to 50 remote controls (unlimited with 811LM/813LM)
• Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening
• Fire department compliance—auto open on battery depletion
• Synchronized close
• Timer-to-Close
