FAAC JS80HA Retractable Bollards - Semi-Automatic w/ mDure® Cover

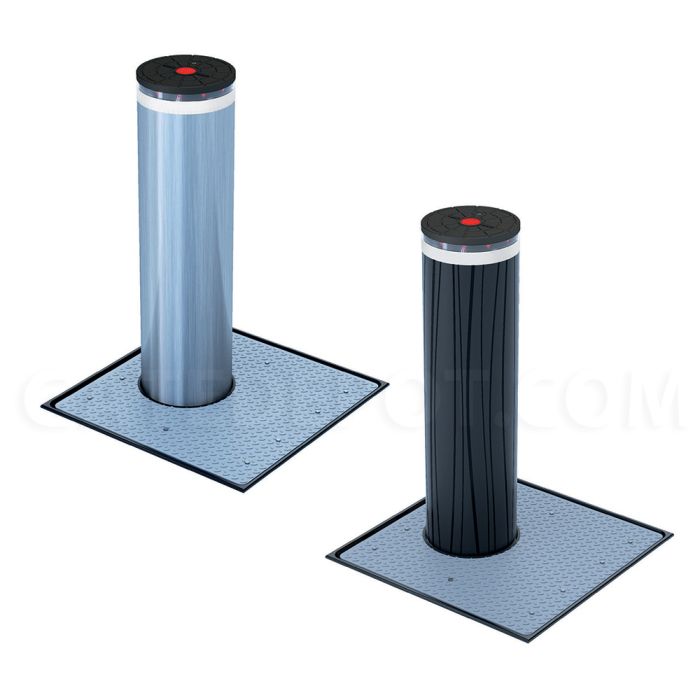

Choose Steel or Stainless Steel
Available w/ Emergency Fast Operation
• Semi-Automatic
• 39.4" x 10.8" (1,000mm x 275mm)
• IP 67 Protection Class
• Able to withstand impact from truck @ 50 mph / 80 kph

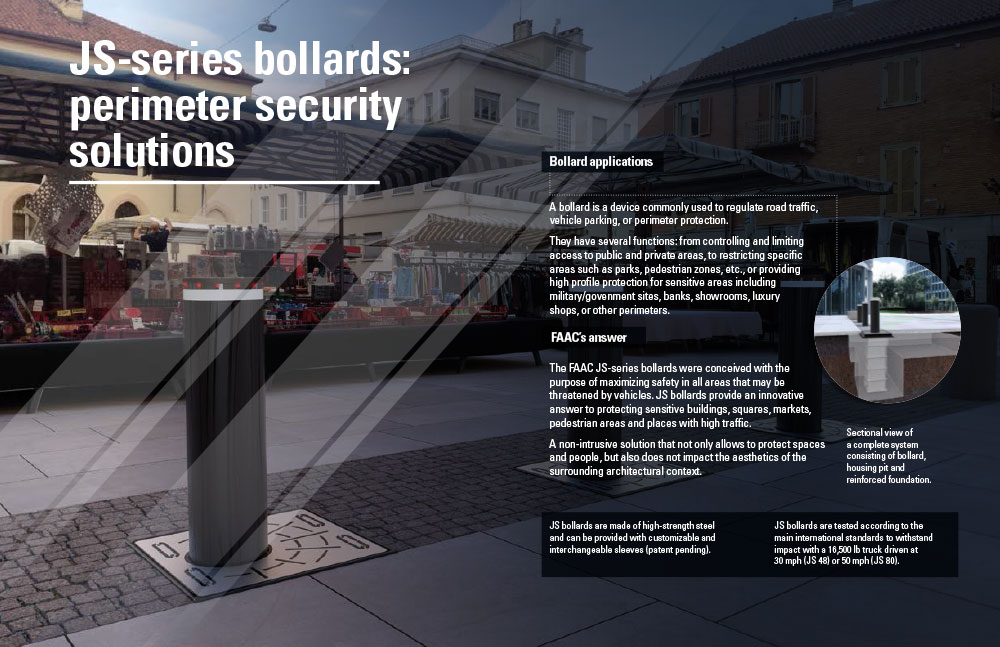

• Perimeter protection and regulation of vehicular access to Restricted Areas w/ Special Security Requirements
• All Products Require an 8-12 Week Lead Time
From $30,659.00
To $143,776.00
SKU
FAC-js80ha-bundle
Product Details

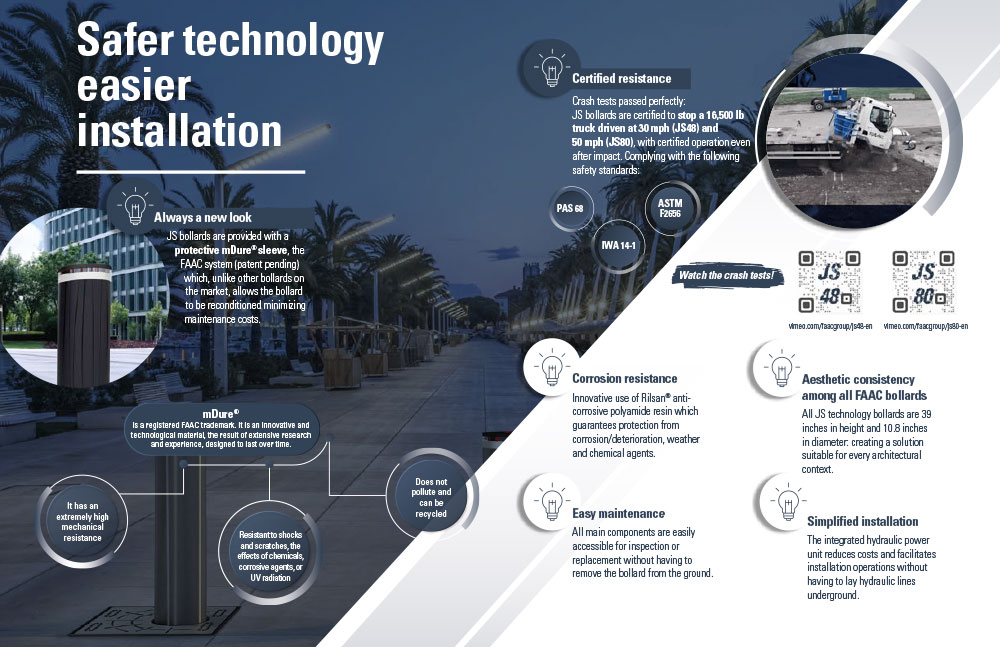

The JS bollards are provided with mDure® protective sleeves, the FAAC system which, unlike other models on the market, allows the bollard to be reconditioned avoiding high disassembly and reassembly costs. mDure® is a trademark of FAAC. It is an innovative and technological material, designed to last. It has an extremely high mechanical strength and is resistant to shocks, scratches, UV radiation and chemicals, does not pollute and can be recycled.
- Maintenance can be carried out without removing the bollard. No lifting equipment required
- Interchangeable protective sleeve so that the bollard is always just like new
- Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards. Able to withstand impact with a truck driven at 50 mph (80 km/h). P1 penetration rating, still operational after impact steel cylinder with cataphoretic coating

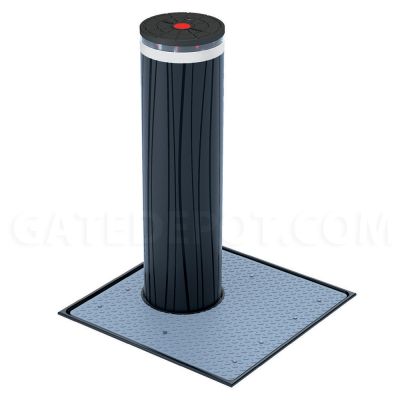

- mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish or satin-finish stainless steel
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Reflector strip
- Hydraulic lock in raised position (in case of a power failure)
- Release key for manual emergency lowering
- Pressure accumulator for fast rise (EFO version only)
- Type of operator: Hydraulic
- Cylinder height from ground: 39.4 in (1,000 mm)
- Cylinder diameter: 10.8 in (275 mm)
- Cylinder treatment: Cataphoresis
- Protective cover type, standard version: mDure®

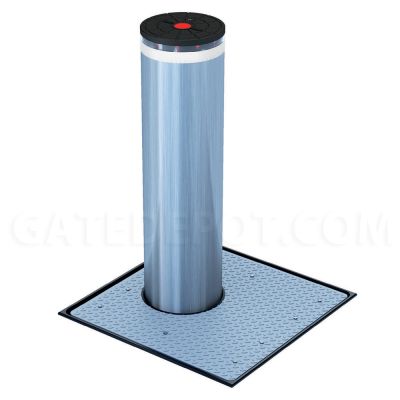

- Protective cover type, stainless steel version: AISI 316 stainless steel + mDure®
- Reflective strip height: 2.16 in (55 mm)
- Standard reflecting strip color: White
- Head material type: Aluminum
- Head treatment type: Rilsan® anticorrosive resin
- Rising time: Approx 6 s
- Quick rise device: EFO version / Approx 1.5 s
- Release device: Yes
- Descent time: Approx 2 s
- Power supply voltage: 207-243V ~ 50/60 Hz
- Max. power: 3.500 W
- Type of use: Perimeter Security
- Break in resistance: 1.852.000 J
- Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
- Operating ambient temperature with heater: -40°F - 131°F (-40°C / +55°C)
- Hydraulic pump unit protection class: IP67
- Load class (EN 124): C250 (25 metric ton)
- Traffic bollard weight: 1,477 lb (670 kg) 1543 lb (700 kg)
- Pit weight: 441 lb (200 kg)
| Brand | FAAC |
|---|
