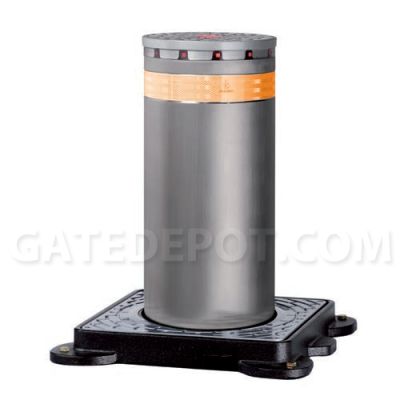

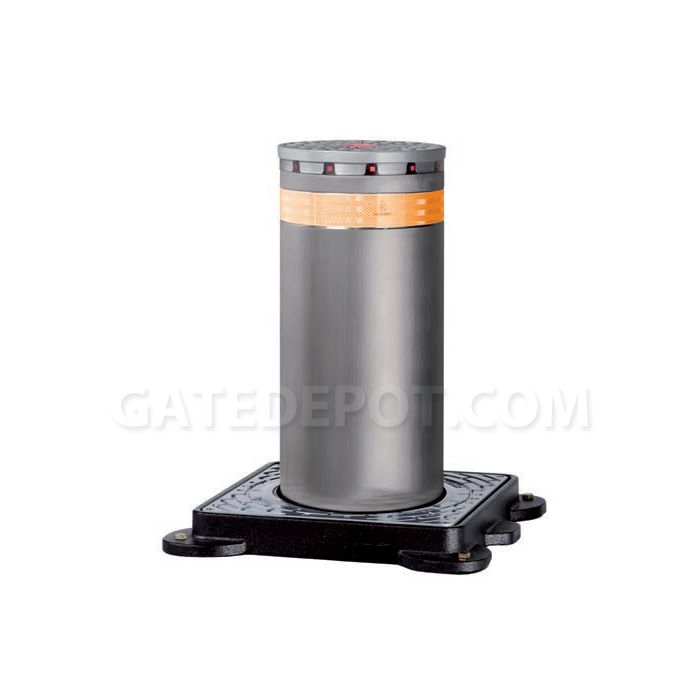

FAAC J275HA V2 Hydraulic Bollards - Automatic
Available in 23.6" & 31.5" Heights
Choose Steel or Stainless Steel
• Retractable Automatic
• 23.6" / 31.5" x 10.8" (600mm / 800mm x 275mm)
• Cylinder 0.28" (7mm) thick / SS 0.24" (7mm)
• IP 67 Protection Class
• For use in Commercial, Industrial & Urban Restricted Access Areas w/ intense traffic flow
• All Products Require an 8-12 Week Lead Time
From $7,209.00
To $36,233.00
SKU
FAC-j275ha-bundle
Product Details
Guaranteed for high frequency use Supplied with the main accessories already included Extreme care in the selection of materials Simple maintenance (just one person is needed) Fast and silent movements Built-in hydraulic slow down for softer landing in opening Flashing light ring with central LED Audible buzzer (active during movement) Emergency lowering in the event of power outage (can be excluded)
- Drive: Hydraulic operator
- Cylinder stroke: 23.6 in (600 mm) / 31.5 in (800 mm)
- Cylinder diameter: 10.8 in (275 mm)
- Cylinder material, standard version: Fe 360 steel 0.28 in. thick (7mm)
- Standard cylinder surface treatment: Cataphoresis and polyester powder paint RAL 7021 metallic dark grey
- Cylinder material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
- Cylinder head: Aluminum RAL 9006
- Rise time: Approx. 5 sec(*) / Approx. 7 sec(*)
- Descent time (standard): Approx. 3.5 sec(*) / Approx. 4.5 sec(*)
- Descent time (rapid): Approx. 1.2 sec(*) / Approx. 1.5 sec(*)
- Input voltage: 220-240 VAC; 50 / 60 Hz
- Power: 220 W(*)
- Protection class: IP 67
- Recommended use: Intensive (Traffic)
- Standard reflecting strip Height: 2.2 in (55 mm)
- Manual lowering operation: With hydraulic circuit mechanical release
- Impact resistance: 38 KJoules/painted steel - 67 KJoules/stainless steel
- Crash resistance: 128 KJoules/painted steel - 207 KJoules/stainless steel
- Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
- Operating ambient temperature: with heater (optional) -13°F - 131°F (-25 °C / +55 °C)
- Foundation size (LxWxH): 39 x 39 x 49 in (1000x1000x1250 mm) / 39 x 39 x 61 in (1000x1000x1540 mm)
Brand | FAAC |
---|
-
32====
-
FAAC JE275 117300 Bollard Control UnitFAC-117300 117300• JE275 Bollard Control UnitSee More Details
• Controls up to 3 bollards
• For J200HA
• All Products Require an 8-12 Week Lead Time$601.00
32==== -
FAAC 63000167 Sticker - Yellow / ReflectingFAC-63000167 63000167• Yellow Reflecting StickerSee More Details
• All Products Require a 3-5 Day Lead Time$72.00
32==== -
FAAC 63000178 Connection Box - Hydraulic UnitFAC-63000178 63000178• Hydraulic Unit Connection BoxSee More Details
• All Products Require a 3-5 Day Lead Time$606.00
32==== -
FAAC 63000223 Control BoardFAC-63000223 63000223• JE275 Replacement Control BoardSee More Details
• All Products Require a 3-5 Day Lead Time$528.00
32==== -
FAAC 63000228 Sensor - Plastic Bracket ReedFAC-63000228 63000228• Plastic Bracket Reed SensorSee More Details
• All Products Require a 3-5 Day Lead Time$33.00
32==== -
FAAC 63000281 Manual Release KeyFAC-63000281 63000281• Manual Release KeySee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$52.00
32==== -
FAAC 63000539 Hydraulic UnitFAC-63000539 63000539• Complete Hydraulic UnitSee More Details
• For H600
• All Products Require a 3-5 Day Lead Time$2,557.00
32==== -
FAAC 63000541 Hydraulic UnitFAC-63000541 63000541• Complete Hydraulic UnitSee More Details
• For H800
• All Products Require a 3-5 Day Lead Time$2,557.00
32==== -
FAAC 63000593 BuzzerFAC-63000593 63000593• BuzzerSee More Details
• All Products Require a 3-5 Day Lead Time$96.00
32==== -
FAAC 63000594 LED LampFAC-63000594 63000594• LED LampSee More Details
• All Products Require a 3-5 Day Lead Time$271.00
32==== -
FAAC 63000766 Master Release PlugFAC-63000766 63000766• Manual Release PlugSee More Details
• All Products Require a 3-5 Day Lead Time$8.70
32==== -
FAAC 63000896 Cylinder GuideFAC-63000896 63000896• Cylinder GuideSee More Details
• All Products Require a 3-5 Day Lead Time$343.00
32==== -
FAAC 63000906 Cylinder w/ StickerFAC-63000906 63000906• H600 Cylinder with StickerSee More Details
• All Products Require a 3-5 Day Lead Time$1,445.00
32==== -
FAAC 63000927 Wire HarnessFAC-63000927 63000927• Wire Harness for H600See More Details
• All Products Require a 3-5 Day Lead Time$794.00
32==== -
FAAC 63000936 Cylinder w/ StickerFAC-63000936 63000936• H800 Cylinder with StickerSee More Details
• All Products Require a 3-5 Day Lead Time$1,620.00
32==== -
FAAC 63000957 Wire HarnessFAC-63000957 63000957• Wire Harness for H800See More Details
• All Products Require a 3-5 Day Lead Time$831.00
32==== -
FAAC 63002215 Limit Switch KitFAC-63002215 63002215• J275HA Limit Switch KitSee More Details
• All Products Require a 3-5 Day Lead Time$230.00
32==== -
FAAC 63002225 Rubber Stops AssemblyFAC-63002225 63002225• Rubber Stops AssemblySee More Details
• All Products Require a 3-5 Day Lead Time$56.00
32==== -
FAAC 63002235 HeadFAC-63002235 63002235• Head J275HASee More Details
• All Products Require a 3-5 Day Lead Time$426.00
32==== -
FAAC 63002246 Complete Hydraulic UnitFAC-63002246 63002246• Complete Hydraulic Unit for H600See More Details
• All Products Require a 3-5 Day Lead Time$2,707.00
32==== -
FAAC 63002255 Bushing - TopFAC-63002255 63002255• Top Bush for J275 HSee More Details
• All Products Require a 3-5 Day Lead Time$78.00
32==== -
FAAC 63002265 Top CrownFAC-63002265 63002265• Top CrownSee More Details
• All Products Require a 3-5 Day Lead Time$290.00
32==== -
FAAC 63002305 Caps - Bollard Head Bolts / PlasticFAC-63002305 63002305• Plastic Caps for Bollard Head BoltsSee More Details
• All Products Require a 3-5 Day Lead Time$18.00
32==== -
FAAC 63002316 Complete Hydraulic UnitFAC-63002316 63002316• Complete Hydraulic Unit for H800See More Details
• All Products Require a 3-5 Day Lead Time$2,801.00
32==== -
FAAC 63002585 Guide RodsFAC-63002585 63002585• Guide Rods for H600See More Details
• All Products Require a 3-5 Day Lead Time$391.00
32==== -
FAAC 63002595 Guide RodsFAC-63002595 63002595• Guide Rods for H800See More Details
• All Products Require a 3-5 Day Lead Time$430.00
32==== -
FAAC 63002645 Connector KitFAC-63002645 63002645• Connector Kit for H600See More Details
• All Products Require a 3-5 Day Lead Time$406.00
32==== -
FAAC 63002655 Connector KitFAC-63002655 63002655• Connector Kit for H800See More Details
• All Products Require a 3-5 Day Lead Time$430.00
32==== -
FAAC 63003393 Top CrownFAC-63003393 63003393• Top CrownSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$395.00
32==== -
FAAC 63003394 Rislan Bollard HeadFAC-63003394 63003394• Rislan Bollard HeadSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$395.00
32==== -
FAAC 63003396 J275 HardwareFAC-63003396 63003396• J275 HardwareSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$189.00
32==== -
FAAC 7601201 Capacitor - 16uf 400VACFAC-7601201 7601201• Capacitor 16uF-400VSee More Details
• All Products Require a 3-5 Day Lead Time$20.00
