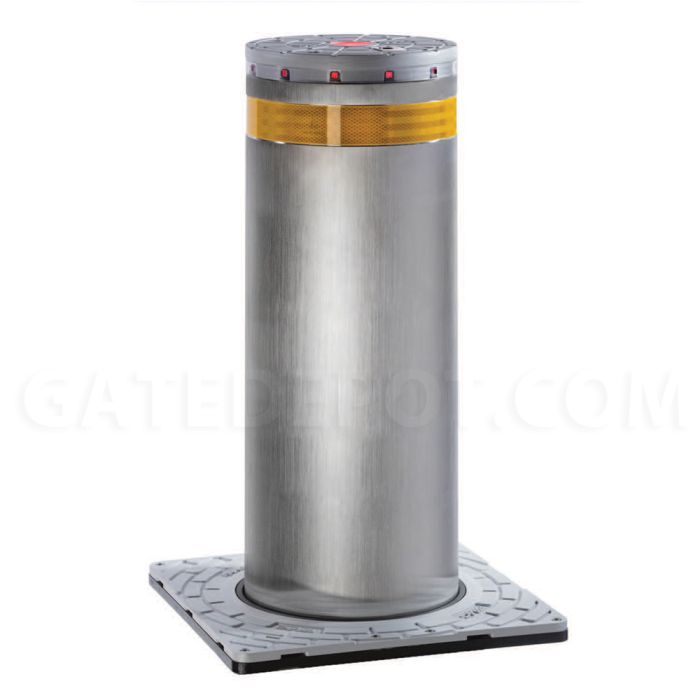

FAAC J275HA 2K20 Retractable Hydraulic Bollards - Automatic
From $14,218.00
To $34,682.00
Product Details
Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 16,500 lb truck driven at 28 mph in a dual unit configuration Guaranteed for high frequency use Simple maintenance (just one person needed) Hydraulic control unit integrated in the bollard Built-in hydraulic slow down for softer landing in opening Anti-tamper head protected by a security lock with encrypted key to prevent unauthorized opening Built-in hydraulic slow down for softer landing in opening Flashing light ring with central LED Audible buzzer (active during movement) Anti-tampering head with encrypted manual release key Hydraulic lock in raised position (in case of a power failure
- Drive: Hydraulic Unit
- Cylinder stroke: 31.5 in (800 mm)
- Cylinder diameter: 10.8 in (275 mm)
- Cylinder treatment, standard version: Cataphoresis and polyester painting
- Cylinder treatment, stainless steel version: AISI 316 satin-finish stainless steel
- Reflective strip height: 2.16 in (55 mm)
- Standard reflecting strip color: White
- Rising time: Approx. 8 s
- Descent time: Approx 4.5 s
- Emergency descent device: YES (with optional solenoid valve unit)
- Emergency descent time: Approx. 2 s

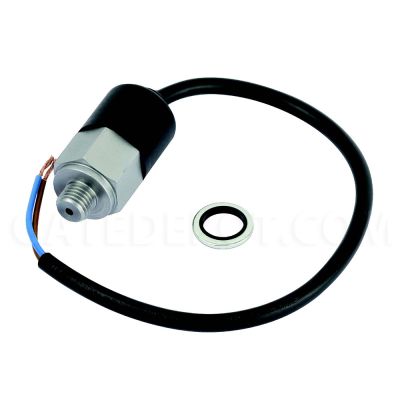

- Rising obstacle detection device: YES (with optional pressure switch)
- Release device: yes
- Slow lowering: yes
- Power supply voltage: 220-240V - 50/60Hz
- Max. power: 575 W
- Hydraulic pump unit protection class: IP67
- Type of use: Perimeter protection
- Break in resistance: 673,000 J dual unit
- Pit weight: 220 lb (100 kg)
- Traffic bollard weight: 375 lb (170 kg)
- Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
Brand | FAAC |
---|
-
32====
-

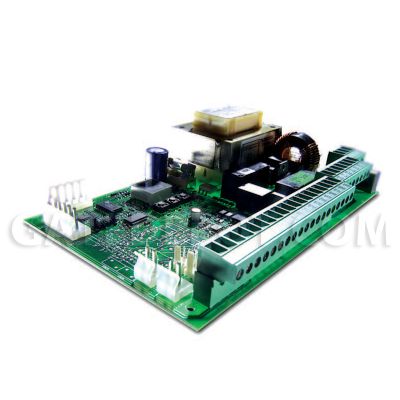

FAAC JE275 117300 Bollard Control UnitFAC-117300 117300• JE275 Bollard Control UnitSee More Details
• Controls up to 3 bollards
• For J200HA
• All Products Require an 8-12 Week Lead Time$601.00
32==== -
FAAC 63000167 Sticker - Yellow / ReflectingFAC-63000167 63000167• Yellow Reflecting StickerSee More Details
• All Products Require a 3-5 Day Lead Time$72.00
32==== -
FAAC 63000178 Connection Box - Hydraulic UnitFAC-63000178 63000178• Hydraulic Unit Connection BoxSee More Details
• All Products Require a 3-5 Day Lead Time$606.00
32==== -
FAAC 63000223 Control BoardFAC-63000223 63000223• JE275 Replacement Control BoardSee More Details
• All Products Require a 3-5 Day Lead Time$528.00
32==== -
FAAC 63000228 Sensor - Plastic Bracket ReedFAC-63000228 63000228• Plastic Bracket Reed SensorSee More Details
• All Products Require a 3-5 Day Lead Time$33.00
32==== -
FAAC 63000281 Manual Release KeyFAC-63000281 63000281• Manual Release KeySee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$52.00
32==== -
FAAC 63000539 Hydraulic UnitFAC-63000539 63000539• Complete Hydraulic UnitSee More Details
• For H600
• All Products Require a 3-5 Day Lead Time$2,557.00
32==== -
FAAC 63000541 Hydraulic UnitFAC-63000541 63000541• Complete Hydraulic UnitSee More Details
• For H800
• All Products Require a 3-5 Day Lead Time$2,557.00
32==== -
FAAC 63000593 BuzzerFAC-63000593 63000593• BuzzerSee More Details
• All Products Require a 3-5 Day Lead Time$96.00
32==== -
FAAC 63000594 LED LampFAC-63000594 63000594• LED LampSee More Details
• All Products Require a 3-5 Day Lead Time$271.00
32==== -
FAAC 63000766 Master Release PlugFAC-63000766 63000766• Manual Release PlugSee More Details
• All Products Require a 3-5 Day Lead Time$8.70
32==== -
FAAC 63000896 Cylinder GuideFAC-63000896 63000896• Cylinder GuideSee More Details
• All Products Require a 3-5 Day Lead Time$343.00
32==== -
FAAC 63000906 Cylinder w/ StickerFAC-63000906 63000906• H600 Cylinder with StickerSee More Details
• All Products Require a 3-5 Day Lead Time$1,445.00
32==== -
FAAC 63000927 Wire HarnessFAC-63000927 63000927• Wire Harness for H600See More Details
• All Products Require a 3-5 Day Lead Time$794.00
32==== -
FAAC 63000936 Cylinder w/ StickerFAC-63000936 63000936• H800 Cylinder with StickerSee More Details
• All Products Require a 3-5 Day Lead Time$1,620.00
32==== -
FAAC 63000957 Wire HarnessFAC-63000957 63000957• Wire Harness for H800See More Details
• All Products Require a 3-5 Day Lead Time$831.00
32==== -
FAAC 63002215 Limit Switch KitFAC-63002215 63002215• J275HA Limit Switch KitSee More Details
• All Products Require a 3-5 Day Lead Time$230.00
32==== -
FAAC 63002225 Rubber Stops AssemblyFAC-63002225 63002225• Rubber Stops AssemblySee More Details
• All Products Require a 3-5 Day Lead Time$56.00
32==== -
FAAC 63002235 HeadFAC-63002235 63002235• Head J275HASee More Details
• All Products Require a 3-5 Day Lead Time$426.00
32==== -
FAAC 63002246 Complete Hydraulic UnitFAC-63002246 63002246• Complete Hydraulic Unit for H600See More Details
• All Products Require a 3-5 Day Lead Time$2,707.00
32==== -
FAAC 63002255 Bushing - TopFAC-63002255 63002255• Top Bush for J275 HSee More Details
• All Products Require a 3-5 Day Lead Time$78.00
32==== -
FAAC 63002265 Top CrownFAC-63002265 63002265• Top CrownSee More Details
• All Products Require a 3-5 Day Lead Time$290.00
32==== -
FAAC 63002305 Caps - Bollard Head Bolts / PlasticFAC-63002305 63002305• Plastic Caps for Bollard Head BoltsSee More Details
• All Products Require a 3-5 Day Lead Time$18.00
32==== -
FAAC 63002316 Complete Hydraulic UnitFAC-63002316 63002316• Complete Hydraulic Unit for H800See More Details
• All Products Require a 3-5 Day Lead Time$2,801.00
32==== -
FAAC 63002585 Guide RodsFAC-63002585 63002585• Guide Rods for H600See More Details
• All Products Require a 3-5 Day Lead Time$391.00
32==== -
FAAC 63002595 Guide RodsFAC-63002595 63002595• Guide Rods for H800See More Details
• All Products Require a 3-5 Day Lead Time$430.00
32==== -
FAAC 63002645 Connector KitFAC-63002645 63002645• Connector Kit for H600See More Details
• All Products Require a 3-5 Day Lead Time$406.00
32==== -
FAAC 63002655 Connector KitFAC-63002655 63002655• Connector Kit for H800See More Details
• All Products Require a 3-5 Day Lead Time$430.00
32==== -
FAAC 63003393 Top CrownFAC-63003393 63003393• Top CrownSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$395.00
32==== -
FAAC 63003394 Rislan Bollard HeadFAC-63003394 63003394• Rislan Bollard HeadSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$395.00
32==== -
FAAC 63003396 J275 HardwareFAC-63003396 63003396• J275 HardwareSee More Details
• For J275HA
• All Products Require a 3-5 Day Lead Time$189.00
32==== -
FAAC 7601201 Capacitor - 16uf 400VACFAC-7601201 7601201• Capacitor 16uF-400VSee More Details
• All Products Require a 3-5 Day Lead Time$20.00
