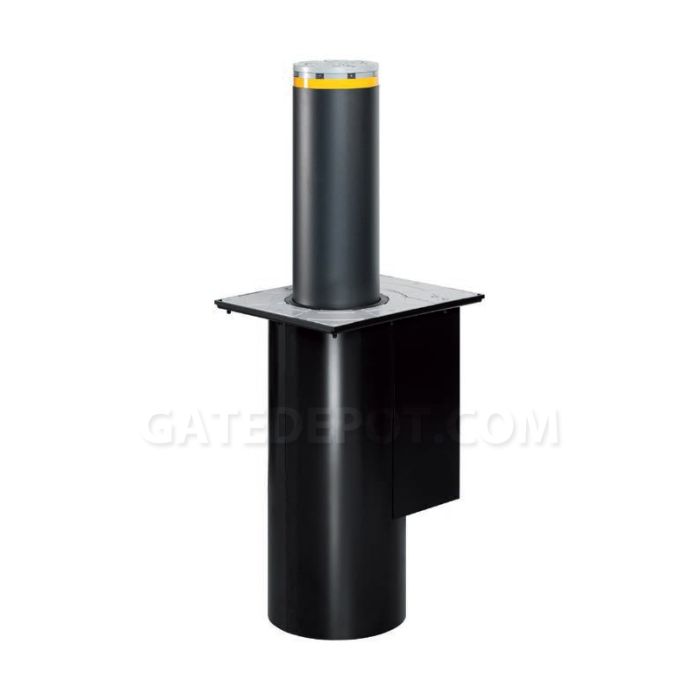

FAAC J200HA Retractable Hydraulic Bollards - Automatic
Choose Steel or Stainless Steel
• Automatic
• 23.6" x 7.9" (600mm x 200mm)
• Cylinder 0.24" (6mm) thick
• IP 67 Protection Class
• For use in Residential Applications w/ moderate traffic flow
• All Products Require an 8-12 Week Lead Time
From $5,049.00
To $13,204.25
SKU
FAC-j200ha-bundle
Product Details
Easy to transport, store and install, thanks to the self-supporting structure - pit not required - and to its limited weight A streamlined product, configurable by selecting the desired installation accessories Simplified maintenance (just one person is needed) Fast and quiet movement Hydraulic lock in the up position (in the event of power a power outage) with special release key
- Drive: Hydraulic operator
- Cylinder stroke: 23.6 in (600 mm)
- Cylinder diameter: 7.9 in (200 mm)
- Cylinder material, standard version: Steel S235JRG2 EN 10277 0.24 in (6mm) thick
- Cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
- Cylinder material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
- Cylinder head: Aluminum RAL 9006
- Rise time: Approx. 5 sec(*)
- Descent time: Approx. 7 sec(*)
- Input voltage: 220-240 VAC; 50 / 60 Hz
- Power: 230 W(*)
- Protection class: IP 67
- Recommended use: Use in residential applications
- Reflecting strip height: 1 in (25 mm)
- Manual lowering operation: With hydraulic circuit mechanical release
- Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
- Operating ambient temperature with heater (optional): -13°F - 131°F (-25 °C / +55 °C)
- Overall dimensions: 16 x 20 x 32 in (400x500x800 mm)
- Foundation size: (LxWxH) 28x28x43 in (700x700x1100 mm)
| Brand | FAAC |
|---|
