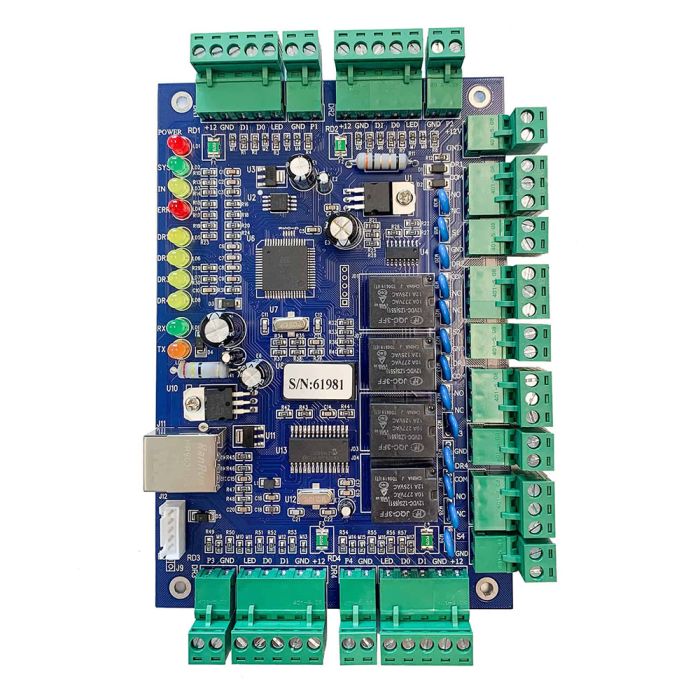

EMX TRES-400-DEFENDER Defender Access Board Only

The TRES DEFENDER Dual Relay Access Controller is a robust and versatile security solution, featuring weatherproof construction, comprehensive storage capacity, and seamless network integration. Offering flexible configuration and compatibility with standard access protocols, it is designed for reliable, high-capacity access control across a range of demanding environments.

Experience power, convenience, and security with the EMX Defender Dual Relay Access Controller. This high-volume traffic control tool is perfect for gated communities, private security estates, and commercial properties.

• Simultaneous Management of Gates: Simultaneously manage separate vehicle and pedestrian gates for seamless traffic flow.
• Robust User Capacity: Supports up to 20,000 users with an audit trail, offering a scalable solution that grows with your community or property.
• Distributed Database Controller: Boasts both online and offline capabilities, allowing you to maintain effective access control even during network disruptions.
• Remote Door Release Function: The added convenience of managing access remotely, enhancing overall system control and ease of use.
• Real-Time Processing and Communications: Guarantees immediate response and efficient handling of access requests with real-time capabilities, ensuring access decisions are based on the most current data.

The EMX Defender Dual Relay Access Controller is more than just an access control solution. It's a comprehensive, user-friendly system that enhances security while providing the scalability and reliability needed for large-scale applications. Experience the convenience and control of the Defender Dual Relay Access Controller today.

The DEFENDER Dual Relay Access Controller excels with its:

• Sturdy and secure design: weatherproof and lockable enclosure
• Compact dimensions: (L)6.3" x (W)4.2" (160mm x 106mm), perfect for various installations
• Consistent performance ensured by a 12VDC @ 3A power supply
• Reader compatibility with all types using standard 26-bit Wiegand format
• Operational durability in environments from -31° F to +149° F (-35° C to +65° C) and 10 ~ 90% relative humidity
• Built-in TCP/IP network communications for seamless integration into modern networks

The DEFENDER Dual Relay Access Controller combines robust functionality with practical design for effective access control. With a broad range of features, it is truly a comprehensive solution for managing access in varied environments.

Specifications

• Enclosure: Weatherproof, lockable, IP65 rated with clear hinged lexan cover. Internal hinged swing-out plate for easy access and wiring
• Dimensions (Enclosure): 11.8" X 7.9" X 6.7" (300mm x 200mm x 170mm)
• Basic Functions: Reader Ports: 4 (2 in, 2 out), Input protocol: Standard 26-bit Wiegand, Maximum Wiegand device distance: 500'
• Outputs: 4 NO/NC Relays @ 1 OA (software configurable)
• Status Inputs: 4 NC
• Diagnostic LED Indicators: Power, System, Inputs, Output relays
• Software: Included
• Removable Terminal Strips: For easy install and service
• Reader Type Supported: Compatible with all readers using standard 26-bit Wiegand format
• Network Communication: TCP/IP
• Communication Mode: 10Mbps/100Mbps adaptive
• Controller Support: Up to four readers for gate/door control
• Gate/Door Control: Controls up to four gates/doors (4 output relays) per controller: card in/card out or card in/exit out using exit device
• User Memory: Up to 20,000 users
• Event Buffer: Up to 100,000 events
• Reader Input Protocol: Wiegand standard 26-bit
• Wiegand Devices Supported: Up to four devices
• Request to Exit Inputs: Supports up to four inputs: push-button, motion sensor, etc.
• Output Relays for Door Strike/Magnetic Lock: Four output relays: 2 each 10A, SPDT relays, N/O-Com-N/C
• Gate/Door Position Input: 2 each SPST relay, N/O, input (10A)
• Power Consumption: Less than 100mA
• Power Consumption of Circuit Board: TCP communication 225mA (without load)
• Power Supply Required: 12VDC @ 3A (if using magnetic door locks)
• Controller to Controller Distance: 328' maximum distance (dependent upon network coverage)
• Maximum Number of Networks: No limit
• Operating Temperature: -32°F to 149°F (-35°C to 65°C)
• Operating Humidity: 10~90% RH Non-Condensing
• Dimensions (PCB Only): 6.3" x 4.2" (160 x 106 mm)
