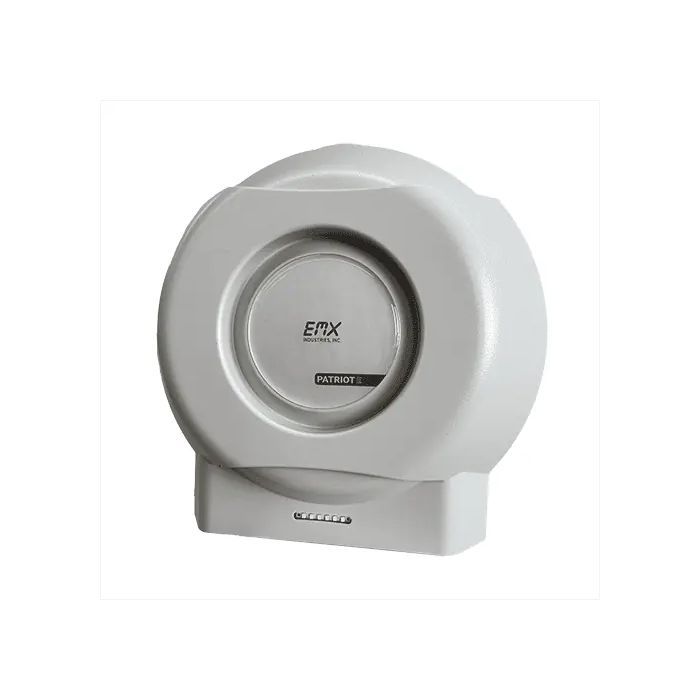

EMX Patriot-E Long Range UHF / RFID Reader
Choose Standard, Ethernet, WiFi or Bluetooth
• Circular Polarized 7.5 dBi (Gain)
• 902-928 MHz
• Range: 18-25 ft. (5.4-7.6 m)
• Multiple Wiegand Bit Formats
From $1,690.00
To $7,225.00
SKU
EMX-patriot-e-bundle
Product Details
Features
- Range: 18-25 ft. (5.4-7.6 m)
- RS232, RS485, OSDP
- Supports Multiple Wiegand Bit Formats
- LED Indicator
- Variable 12 to 48VDC Input Voltage
- 902 – 928MHz
Whats In The Box
- Reader
- Power Supply
- Mounting Bracket
- Test Tag
Software Adjustable Features
- dBm levels adjustable
- Controllable LED timing (on/off)
- Controllable buzzer (on/off)
- Buffer timing
- Wiegand timing
- Controllable relay (on/off)
- Isolate facility codes

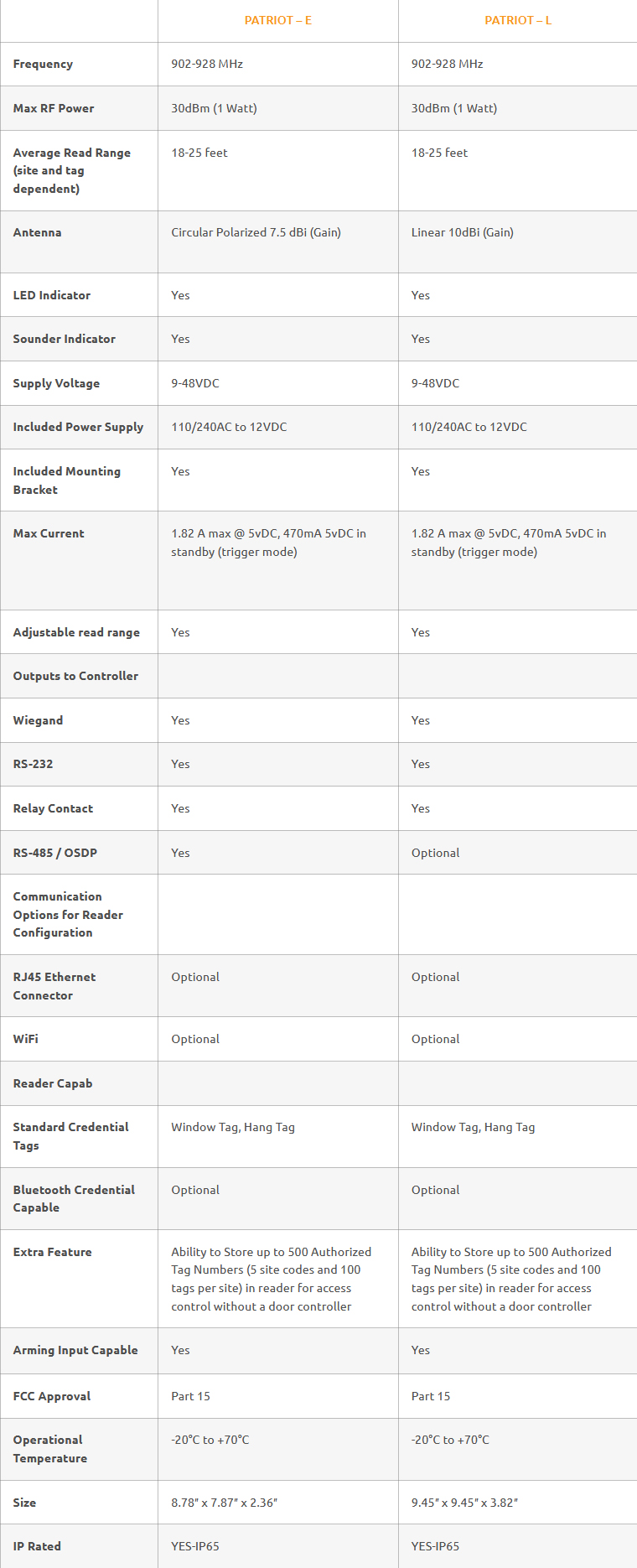

Specifications
- Frequency: 902-928 MHz
- Max RF Power: 30dBm (1 Watt)
- Average Read Range (site and tag dependent): 18-25 feet
- Antenna: Circular Polarized 7.5 dBi (Gain)
- LED Indicator: Yes
- Sounder Indicator: Yes
- Supply Voltage: 9-48VDC
- Included Power Supply: 110/240AC to 12VDC
- Included Mounting Bracket: Yes
- Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
- Adjustable read range: Yes
- Outputs to Controller: Wiegand, RS-232, Relay Contact, RS-485 / OSDP
- Communication Options for Reader Configuration: RJ45 Ethernet Connector, WiFi
- Reader Capab: Standard Credential Tags: Window Tag, Hang Tag
- Bluetooth Credential Capable: Optional
- Extra Feature: Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller
- Arming Input Capable: Yes
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 8.78″ x 7.87″ x 2.36″
- IP Rated: YES-IP65
| Brand | EMX |
|---|
