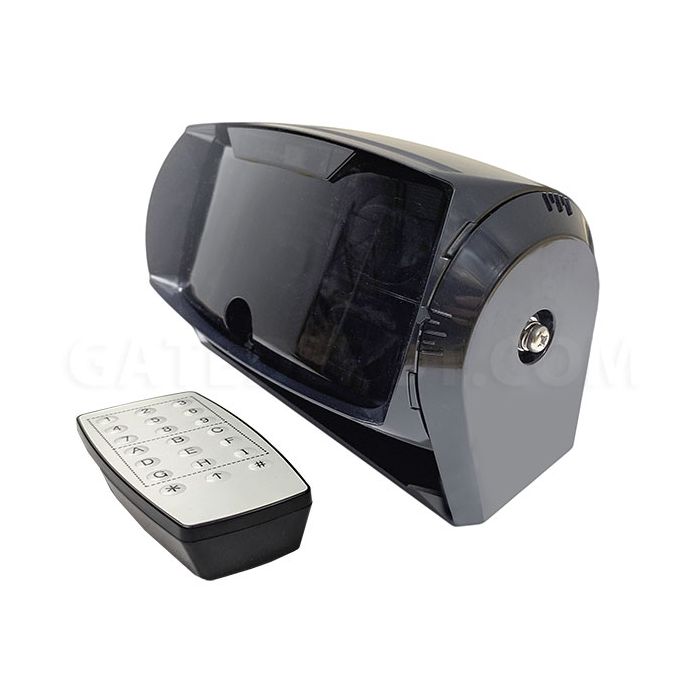

EMX 5417 OWL Microwave Motion / Infrared Presence Sensor

The OWL is a vehicle motion and presence sensor that uses microwave and infrared technology to activate automatic doors and industrial gates. Featuring two configurable outputs, vehicle motion detection as well as presence detection, the OWL activation sensor will ensure the safety of people and goods.

The remote control enables flexible set-up of the presence detection area, direction detection, hold time, and more.

Advantages:

• Door activation and protection in one unit
• Disregard parallel traffic with filter settings
• Highly customizable presence detection area
• Save energy by reducing door openings

Applications:

• High-speed and loading dock doors
• Activation for audible alarms and warning lights
• Manufacturing facilities
• Pull cord replacement
• Car dealerships

Features

• Advanced microwave and infrared technology with adjustable detection field
• Distinguish between pedestrian and vehicle traffic for energy efficient door openings
• Adjustable filtering settings with remote control

Specifications

• Mounting Height: 11.5-21.3 ft (3.5-6.5 m)
• Supply Voltage: 12-24 VDC/AC
• Max. Current Draw: 150 mA @ 12 VDC
• Operating Temperature: -4 to 140°F (-20 to 60°C)
• Operating Humidity: Below 80%
• Dimensions: 9" (229 mm) x 5" (127 mm) x 5" (127 mm)
• Connections: 32 ft (10 m) 8 conductor cable directly from sensor
• Environmental Rating: IP65
• Vertical Directionality: 16-32° wall or ceiling mount
• Horizontal Directionality: ± 10°

Microwave (Vehicle Motion)

• Operating Frequency: 24.150 GHz
• Detection Range: Depends on sensor height and housing angle
• Max. Range: 23 ft (7 m)
• Max. Width: 19.7 ft (6 m)
• Relay Output: NO or NC (adjustable)
• Relay Contact Rating: Max. 48 VDC / Max. 300 mA
• Relay Hold Time: Typ. 500 ms
• Adjustable Tilt Angle: -10 to 25°

Infrared (Presence)

• Detection Range: Depends on sensor height and housing angle
• Max. Range: 18 ft (5.5 m)
• Max. Width: 26.2 ft (8 m)
• Relay Output: NO or NC (adjustable)
• Relay Contact Rating: Max. 48 VDC / Max. 300 mA
• Relay Hold Time: Presence (30 sec to Infinite, adjustable)
