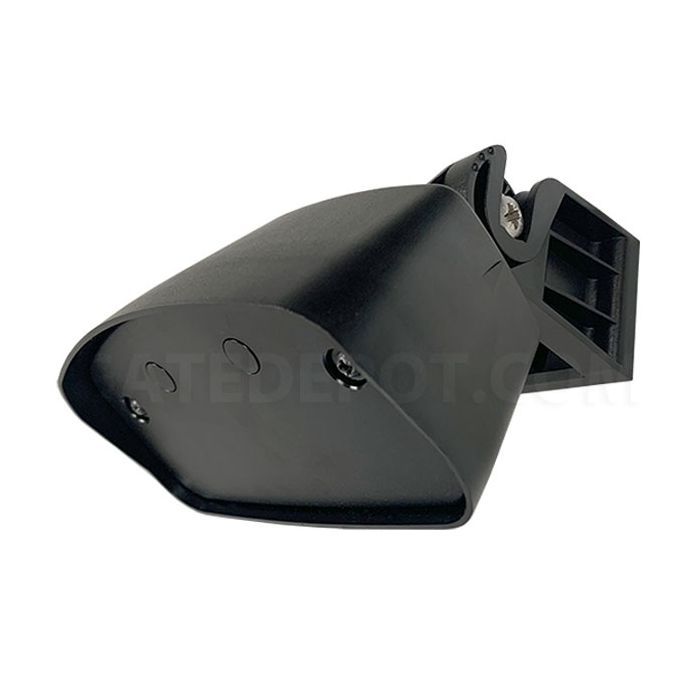

EMX 5415-2 RAVEN Microwave Motion Sensor

The RAVEN is a vehicle motion sensor that uses microwave technology to activate automatic doors and industrial gates. The sensor distinguishes between vehicles and pedestrians through dual relay outputs.

Featuring multiple detection modes, the sensor can be programmed to approach-only, depart-only or bidirectional movement. The RAVEN will eliminate unnecessary door openings by utilizing cross traffic filtering settings. Other parameters can be configured to adjust the sensitivity, responsiveness and relay hold time. Programming can be done using the push buttons directly on the housing or by the optional remote control.

Advantages:

• Disregard pedestrian and parallel traffic
• Flexible adjustment of the detection field
• Reduce door openings to save energy
• Indoor and outdoor use

Applications:

• Activation of automatic industrial doors
• Truck and tow-motor detection
• Cold storage facilities
• Barrier arm activation
• Parking garage and car wash entrances

• Operating Frequency: 24.150 GHz
• Detection Range: Dependent on sensor height and housing angle
• Vertical Directionality: ± 90° in 15° increments (up/down)
• Horizontal Directionality: ± 18° (left/right)
• Mounting Height: 8-23 ft (2.5-7 m)
• Power: 12-36 VDC or 12-28 VAC
• Current Draw: 50 mA @ 24 VDC
• Relay Output: 2 relay outputs (vehicle & pedestrian) NO/NC
• Relay Hold Time: 0.5 to 300 seconds (adjustable)
• Relay Contact Rating: 1 A @ 24 VDC/AC
• Operating Temperature: -4° to 140°F (-20° to 50°C) below 90% relative humidity
• Operating temperature: -4°F — 122°F (-20°C — 50°C)
• Dimensions (W x H x D): With mounting bracket — 5.16" (131 mm) x 2.87" (73 mm) x 5.35" (136 mm)
• Connection: 26 ft (8 m) cable
• Housing Material: Polycarbonate
• Environmental Rating: IP67
