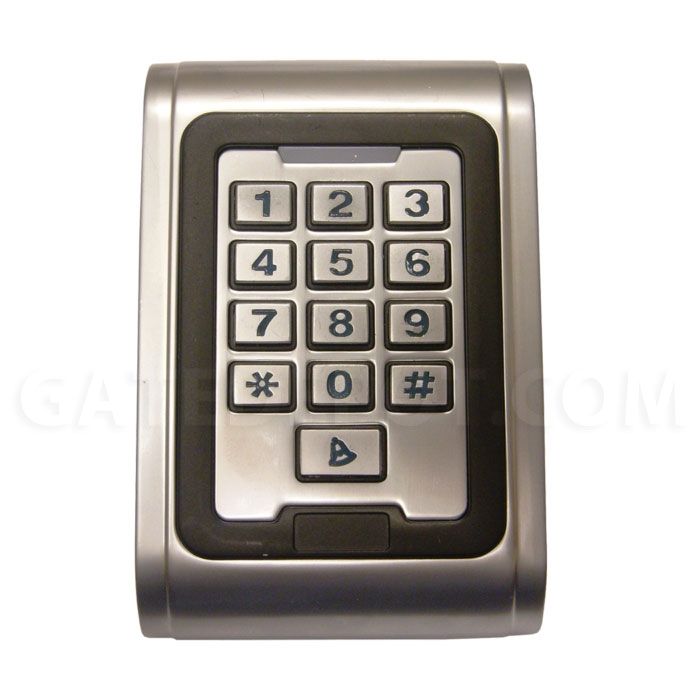

EMX 5401-1 CR-2000 RFID Proximity Reader w/ Keypad - Waterproof

The CR-2000 waterproof wiegand card reader and keypad provides secure access control for up to 2,000 users via pass cards and/or individual user pass codes. The CR-2000 uses RFID induction technology to communicate with contactless Mifare smart cards.

Secured in a waterproof metal housing, the CR-2000 has a tamper alarm, short circuit protection and a luminous keypad for night time use. Wiegand output enables user access monitoring.

The CR-2000 waterproof weigand card reader and keypad also offers low power consumption (30mA standby).

This waterproof weigand card reader and keypad may also be used stand alone for access control of doors, gate and barrier arms.

Features

• Back-lit keys
• Wiegand and relay outputs
• 2000 users (card or passcode)
• Keypad user delete for lost cards
• <30mA standby current
• 9-25 VDC
• Operating temp -25°C~60°C
• Tamper alarm
• Door call button

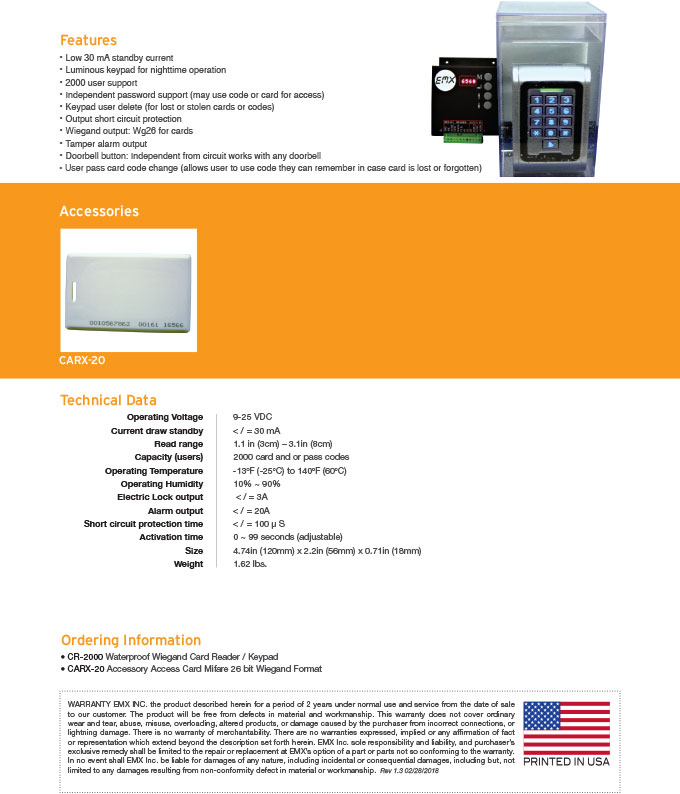

Specifications

• Operating Voltage: 9-28 VDC
• Current draw standby: < / = 30 mA
• Read range: 1.1 in (3cm) — 3.1in (8cm)
• Capacity (users): 2000 card and or pass codes
• Operating Temperature: -13°F (-25°C) to 140°F (60°C)
• Operating Humidity: 10% ~ 90%
• Electric Lock output: < / = 3A
• Alarm output: < / = 20A
• Short circuit protection time: < / = 100 µ S
• Activation time: 0 ~ 99 seconds (adjustable)
• Size: 4.74in (120mm) x 2.2in (56mm) x 0.71in (18mm)
