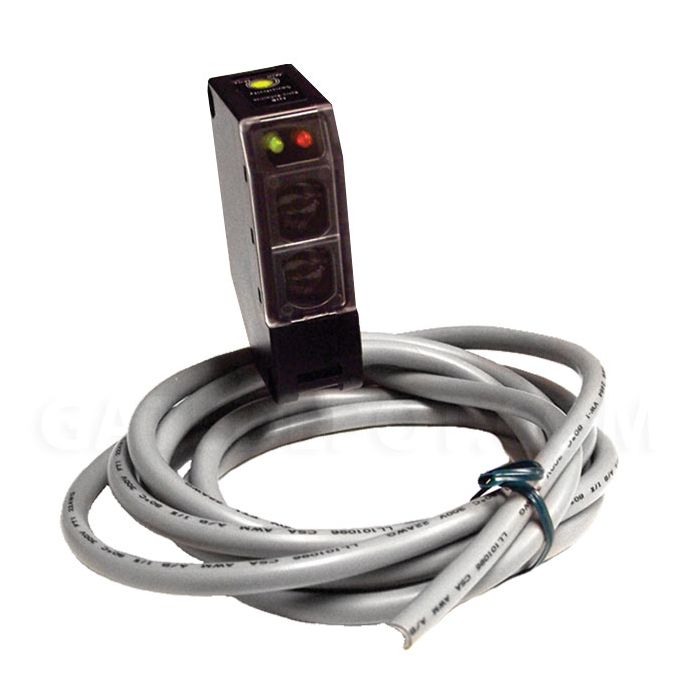

EMX 5200-K NIR Retro-Reflective Photo Eye Kit

Our NIR retroreflective photoeye sensor provides entrapment protection for commercial overhead doors, gates and parking barriers. With its flexible voltages, compact design and LED indicators, this photoeye is easy to use.

The NIR kit includes: photoeye with hood, reflector with hood, and mounting bracket with hardware.

The NIR is supplied with mounting brackets and hardware for simple installation.

• Operating Temperature: -20° C to +55°C (-4°F to +131°F)
• Operating Voltage: 12—240 Volts DC, 24—240 Volts AC
• Dimensions: H = 2.5", D = 1.5", W = 0.75"
• Lead Wire: 6 feet
• Response Time: 10 ms maximum
• Fail Safe Relay Output: 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A.
• Environmental Protection: IP66 (IEC)
• Certifications: CE
