EMX 4011-2 WEL-200TX Wireless Edge Transmitter

Be the first to review this product

• Transmitter Only • 200' range • 915 MHz • Compatible with NC, 10K and pulse monitored outputs • Connect up to 4 safety edge transmitters • NEMA 4X enclosures • UL325-2018 compliant • 2-Year Limited Manufacturer Warranty • MADE IN USA

MPN: EMX-4011-2

$139.00

SKU

EMX-4011-2

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Overview

Product Details

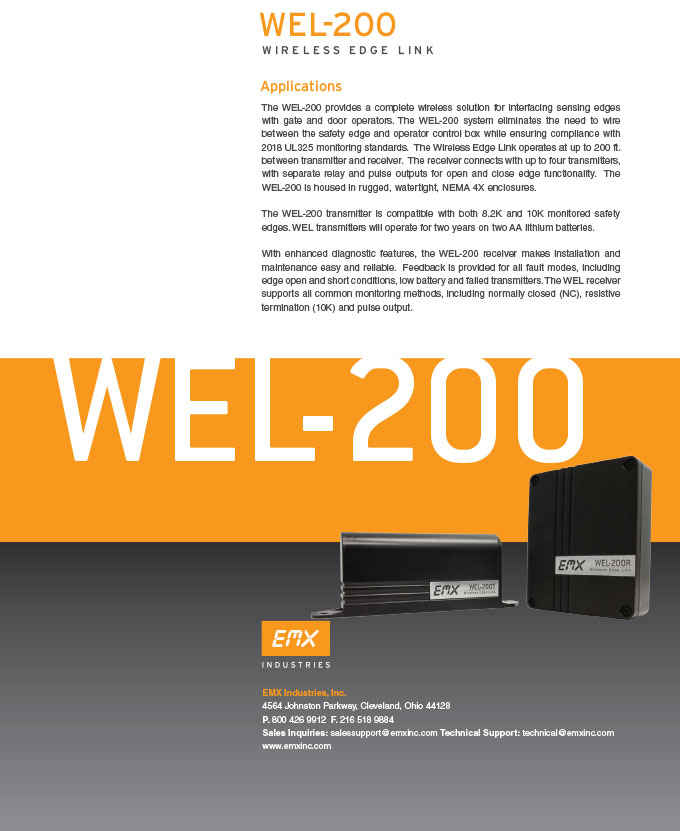

The WEL-200 system provides a complete wireless solution for interfacing sensing edges with gate and door operators. This wireless edge link eliminates the wiring between the safety edge and operator control box while ensuring compliance with 2018 UL325 monitoring standards.

The WEL-200 operates up to 200 feet between transmitter and receiver. The receiver connects with up to four transmitters with separate relay and pulse outputs for open and close edge functionality. The transmitter for the WEL-200 is compatible with both 8.2K and 10K monitored safety edges.

TECHNICAL DATA	WEL-200R	WEL-200T
Operating range	Up to 200 ft. (line of sight)	Up to 200 ft. (line of sight)
Operating frequency	915 MHz	915 MHz
Response time	100ms	100ms
Power/fault indicator	Red power LED/green channel LED	Green transmit/status LED
Channel status indicator	Green LED	NA
Channel mode selection switch	Assign each channel to OPEN/CLOSE function	NA
Outputs	OPEN relay: Form C contacts (NO, COM, NC)	NA
	CLOSE relay: Form C contacts (NO, COM, NC)	NA
	OPEN pulsed: Open collector transistor output (opto-isolated)	NA
	CLOSE pulsed: Open collector transistor output (opto-isolated)	NA
Resistive termination	10K ohm across NO contact (jumper selectable)	NA
Power protection	Thermal fuse, MOV	Thermal fuse
Environmental rating	NEMA 4X	NEMA 4X
Power supply	12-24 VAC/VDC	3-3.6 VDC (2x AA batteries) (ANSI 15-LF, IEC-FR14505 (FR6))
Battery life	NA	2 years at 25°C
Current draw	50 mA	NA
Operating temperature	-40°—60°C (-40°—140°F)	-40°—60°C (-40°—140°F)
Dimensions (L x W x H)	140mm (5.5") x 34mm (1.3") x 90mm (3.5")	180mm (7.0") x 32mm (1.3") x 67mm (2.6")
Weight	200g (7 oz.)	170g (6 oz.)
Connections	12 terminals (18-26AWG)	2 terminals (18-26AWG)
