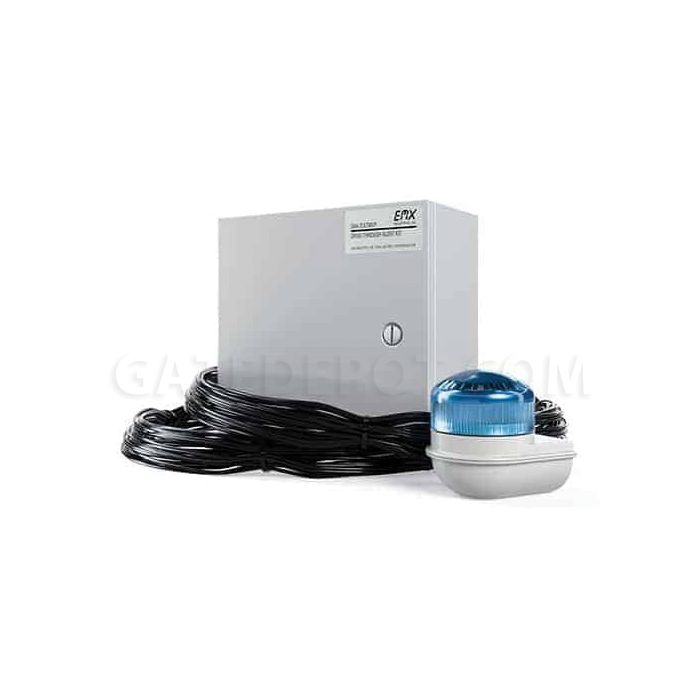

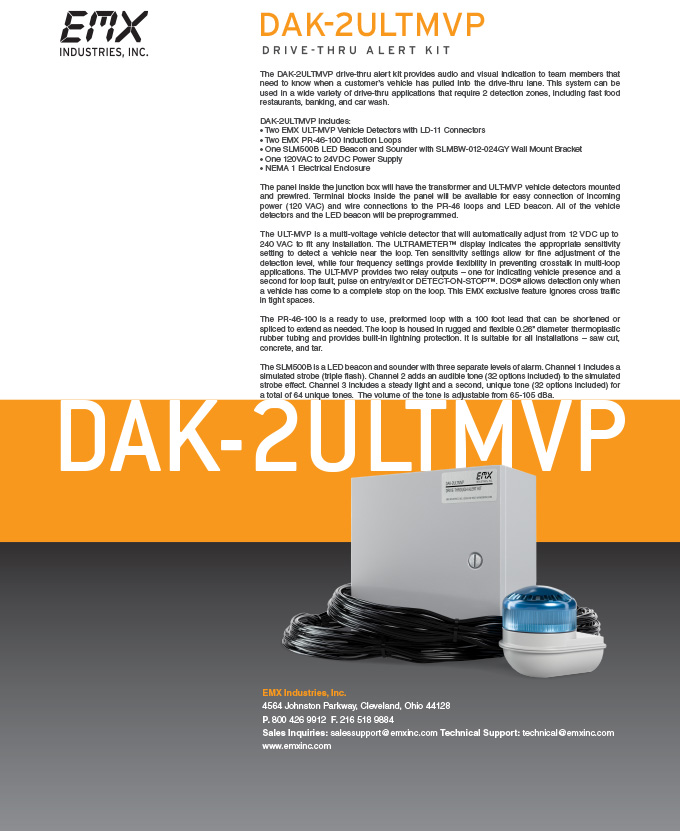

EMX 2801-1 DAK-2ULTMVP Dual Zone Drive-Thru Alert Kit

The DAK-2ULTMVP drive-thru alert kit provides an audio and visual indication to team members that need to know when a customer's vehicle has pulled into the drive-thru lane. This system can be used in a wide variety of drive-thru applications requiring 2 detection zones, including fast-food restaurants, banking, and car wash.

The panel inside the junction box will have the transformer and ULT-MVP vehicle detectors mounted and prewired. Terminal blocks inside the panel will be available for easy connection of incoming power (120 VAC) and wire connections to the PR-46 loops and LED beacon. All of the vehicle detectors and the LED beacon will be preprogrammed.

The ULT-MVP is a multi-voltage vehicle detector that will automatically adjust from 12 VDC up to 240 VAC to fit any installation. The ULTRAMETER™ display indicates the appropriate sensitivity setting to detect a vehicle near the loop. Ten sensitivity settings allow for fine adjustment of the detection level, while four frequency settings provide flexibility in preventing crosstalk in multi-loop applications. The ULT-MVP provides two relay outputs — one for indicating vehicle presence and a second for loop fault, pulse on entry/exit, or DETECT-ON-STOP™. DOS® allows detection only when a vehicle has come to a complete stop on the loop. This EMX exclusive feature ignores cross traffic in tight spaces.

The PR-46-100 is a ready-to-use, preformed loop with a 100-foot lead that can be shortened or spliced to extend as needed. The loop is housed in rugged and flexible 0.26 diameter thermoplastic rubber tubing and provides built-in lightning protection. It is suitable for all installations — saw cut, concrete, and tar.

The SLM500B is a LED beacon and sounder with three separate levels of alarm. Channel 1 includes a simulated strobe (triple flash). Channel 2 adds an audible tone (32 options included) to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone (32 options included) for a total of 64 unique tones. The volume of the tone is adjustable from 65-105 dBa.

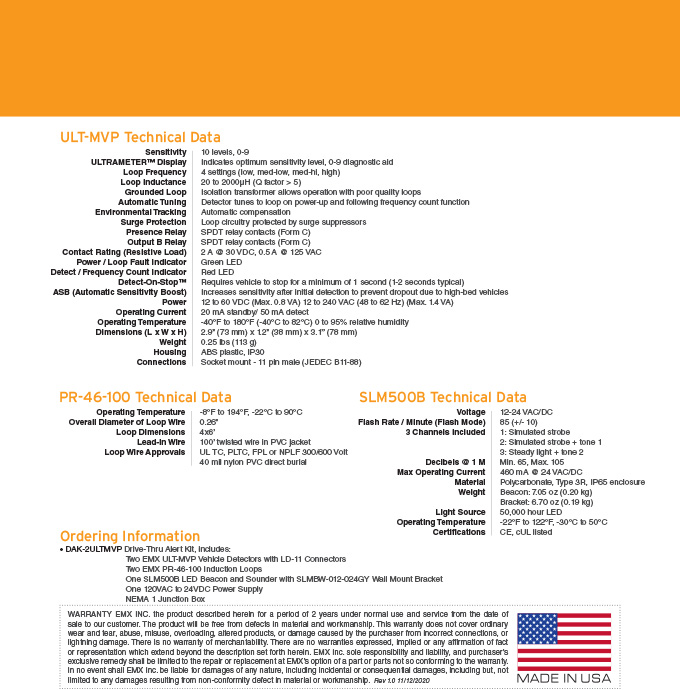

ULTRA MVP Specs

• Sensitivity: 10 levels, 0-9
• ULTRAMETER™ Display: Indicates optimum sensitivity level, 0-9 Diagnostic aid
• Loop frequency: 4 settings (low, med-low, med-hi, high)
• Loop inductance: 20 — 2000µH (Q factor > 5)
• Grounded loop: Isolation transformer allows operation with poor quality loops
• Automatic tuning: Detector tunes to loop on power-up and following frequency count function
• Environmental tracking: Automatic compensation
• Surge protection: Loop circuitry protected by surge suppressors
• Presence relay: SPDT relay contacts (form C)
• Output B relay: SPDT relay contacts (form C)
• Contact rating (resistive load): 2A @ 30VDC, 0.5A @ 125VAC
• Power / loop fault indicator: Green LED
• Detect / frequency count indicator: Red LED
• Detect-On-Stop: Requires vehicle to stop for a minimum of 1 second (1-2s typical)
• ASB (Automatic Sensitivity Boost): Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles
• Power: 12 — 60 VDC (Max. 0.8 VA) 12 — 240 VAC (48 — 62Hz) (Max. 1.4 VA)
• Operating current: 20mA standby / 50mA detect
• Operating temperature: -40°C — 82°C (-40°F — 180°F) 0 — 95% relative humidity
• Dimensions (L x W x H): 73mm (2.9") x 38mm (1.2") x 78mm (3.1")
• Housing: ABS plastic, IP30
• Connections: Socket mount — 11 pin male (JEDEC B11-88)

PR-46-100 Specs

• Operating Temperature: -8°F to 194°F, -22°C to 90°C
• Overall Diameter of Loop Wire: 0.26"
• Loop Dimensions: 4x6'
• Lead-In Wire: 100' twisted wire in PVC jacket
• Loop Wire Approvals: UL TC, PLTC, FPL or NPLF 300/600 Volt / 40 mil nylon PVC direct burial

SLMB500B Specs

• Voltage: 12-24 VAC/DC
• Flash Rate / Minute (Flash Mode): 85 (+/- 10)
• 3 Channels Included:
  • 1: Simulated strobe
  • 2: Simulated strobe + tone 1
  • 3: Steady light + tone 2
• Decibels @ 1 M: Min. 65, Max. 105
• Max Operating Current: 460 mA @ 24 VAC/DC
• Material: Polycarbonate, Type 3R, IP65 enclosure
• Light Source: 50,000 hour LED
• Operating Temperature: -22°F to 122°F, -30°C to 50°C
• Certifications: CE, cUL listed
