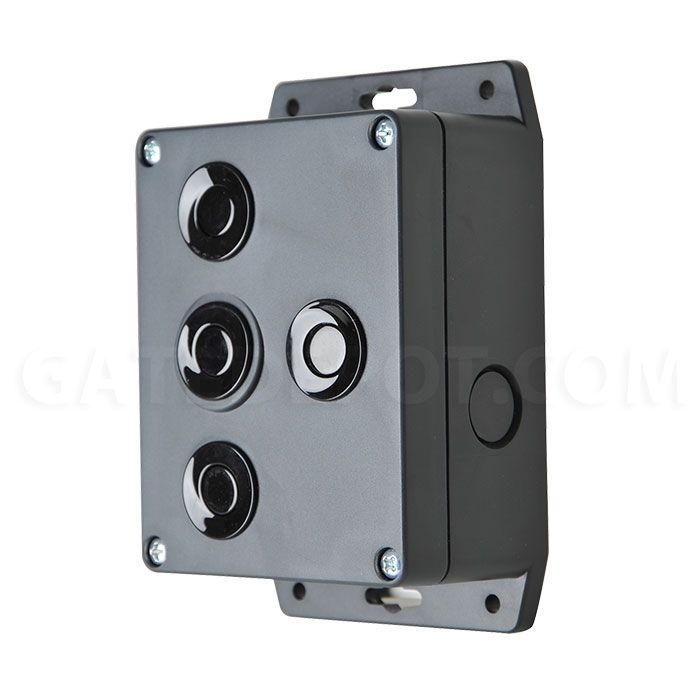

EMX 2700-1 USVD-4X Ultrasonic Vehicle Detector

The USVD-4X drive thru vehicle detector uses Triangular Planar Array (TPA) technology to detect the presence of a vehicle. The USVD-4X ultrasonic vehicle detector handles any drive thru operation, including fast food, banking, pharmacies, car washes and parking.

For these types of applications, the USVD-4X is much less expensive than traditional vehicle loop detectors, which require the installation of a loop in pavement. The USVD-4X ultrasonic vehicle detector is simply mounted on a post or order box, and aimed at the location where a vehicle would pass to initiate a transaction. No set-up or adjustments required.

The USVD-4X requires 12-24VDC/VAC, and provides a form "C" set or relay contacts indicating vehicle presence. Utilizing TPA technology, the detection head consists of 4 ultrasonic transducers that connect to the internal microprocessor-based control board. The detection head "scans" the expected location for a vehicle and activates its output upon detection of a vehicle.

Features

• Triangular Planar Array Technology
• Aux. relay, settings for pulse on ENTRY, EXIT or BOTH
• Output delay option for 1, 2 and 4 seconds
• Operating range: 1ft. — 5ft.
• Response time: 2.0 seconds
• Supply Voltage12—24 VDC/VAC
• Relay output configuration: 2 SPDT (form C)
• CE compliant

Specifications

• Sensing elements: 4 ultrasonic in TPA configuration
• Operating range: 1ft.—5ft.
• Response time: 2.0 seconds
• Relay output configuration: 2 SPDT (form C)
• Relay contact rating: 1A @ 24VDC
• Power indicator/no vehicle: Green LED
• Object in range: Flashing Green LED on each input, continuous LED on DETECT
• Supply voltage: 12—24 VDC/VAC
• Operating current: 60mA
• Operating temperature: -40°C—+85°C (-40°F—+182°F)
• Dimensions: 5.7"(145mm) x 3.6"(90mm) x 2.3"(57mm)
• Housing: ABS NEMA 4X
• Connection: 10 position terminal block
• Mechanical protection: NEMA 4X
• MADE IN USA
