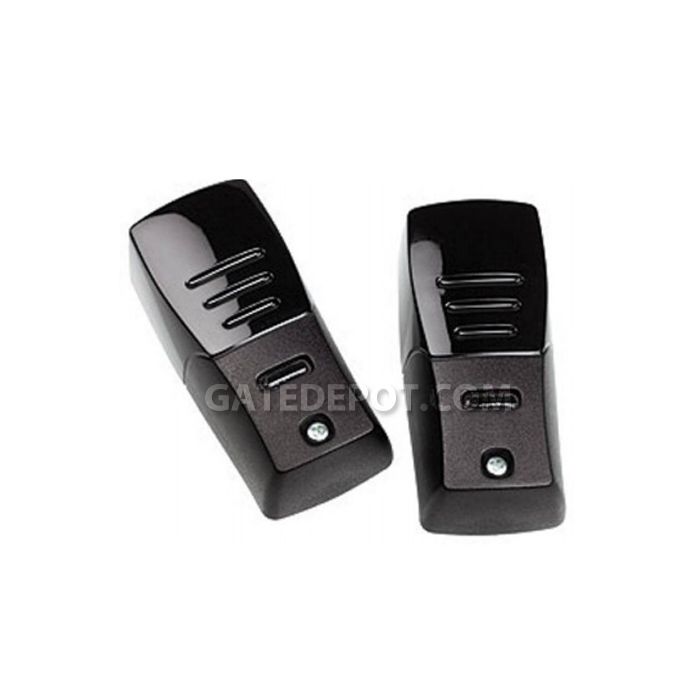

EMX 1500-2 BPE-50 Thru-Beam Photo Eye - Battery Powered / 50'
• 50' range
• Thru beam configuration
• 90° adjustment left or right
• Energy efficient power save option
• Detection Angle: +/- 5%
• Expected Battery Life: 2 years
• 2-Year Limited Manufacturer Warranty
• MADE IN USA
MPN:
EMX-1500-2
$157.00
SKU
EMX-1500-2
Product Details
Save power and make 90° adjustments with the compact BPE-50 battery-powered photoeye for gates and garage doors. The transmitter and receiver use 12-24 VDC/AC, but the BPE-50 can also be powered by two 3.6-volt lithium batteries. The included batteries have a life expectancy of two years.
- Power Supply: 12 — 24 VDC 24 VAC (2-3.6 Volt Lithium Batteries for transmitter optional /included) Expected battery life up to 2 years approx.
- Current Draw: Current Draw
- Relay Type: 2 Form C DPST contact rating .5A @ 24VDC / 120VAC
- Temperature: -20C — 55C
- Wavelength: 880 nm
- Frequency: 787 Hz
- Environmental: IP 65
- Detect Indicator: Red LED
- Connector: Terminal block
- Relay contact: 0.5Amp
- Housing Material: PA6 30% FG
- Size: H 4.4in (112mm) x W 2.05in (52mm) x D 1.3in (33mm)
- Range: Up to 50 feet
- Detection Angle: ± 5%
- Sensitivity: Jumper J1 on receiver
- Detection delay: < 30 ms
- Reset delay: < 120 ms
- MADE IN USA
Manufacturer Part Number | EMX-1500-2 |
---|---|
Former Part Number | BPE-50 |
Brand | EMX |
