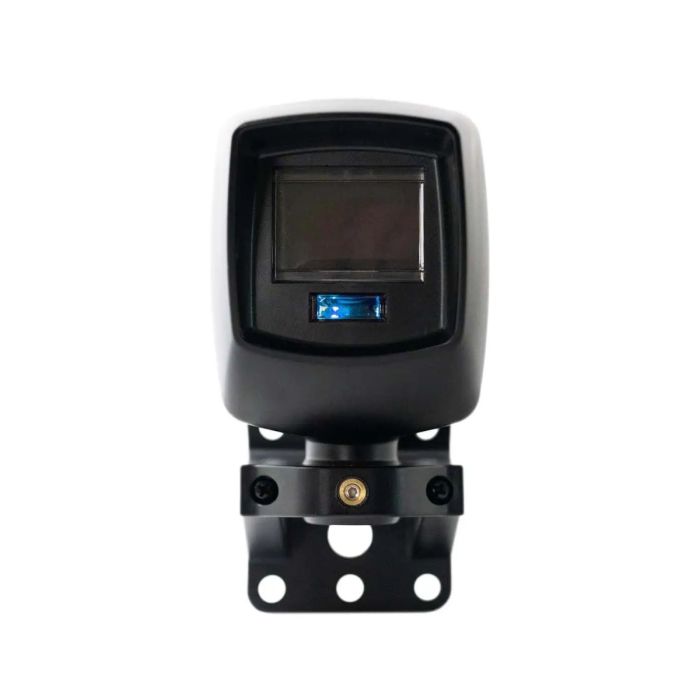

EMX 1200-1 MRD-1P Radar Presence Sensor
Product Details
EMX MRD-1P OVERVIEW
Introducing the MRD-1P Radar Presence Sensor from EMX Industries — a highly accurate, durable solution for detecting vehicles or pedestrians near barrier arms.
This advanced radar sensor detects obstructions over a configurable range of 1 ft to 30 ft (0.3 – 10 m), with a precision measurement down to 0.04″ (1 mm). Its microwave beam performs reliably even in harsh environments, unaffected by rain, snow, ice, or fog.
The MRD-1P features flexible relay outputs for pulse-on-entry and pulse-on-exit signaling, along with a fully featured menu for deeper customization using its intuitive pushbuttons and 3-digit display. Installation is made simple with visual beam shape guidance and a detachable screw terminal block for ease of wiring.
With robust design, fast response time, and superior detection capability, the MRD-1P offers the reliability and performance you need for effective vehicle and pedestrian detection at access points. Enhance your site security and operational efficiency with the MRD-1P.
Features of the MRD-1P Radar Sensor
Accurate detection of vehicles and pedestrians
Configurable detection range: 1 ft to 30 ft (0.3 – 10 m)
Precision measurement: down to 0.04″ (1 mm)
Works in all weather conditions (rain, snow, fog, ice)
Form C relay outputs for versatile signaling
Solid-state relay outputs for pulse-on-entry / pulse-on-exit
Full-feature menu with pushbuttons and 3-digit display
Detachable screw terminal block for easy wiring
Relay outputs include:
Presence Relay: NC terminal opens when an obstruction is present, NO terminal closes when an obstruction is present
Pulse Relay: Configurable for Pulse on Entry, Pulse on Exit, or none
Configurable hold and pulse times
| Manufacturer Part Number | 1200-1 |
|---|---|
| Brand | EMX |
| Specifications | •Operating Range - 1 ft (0.3 m) to 30 ft (10 m) •Power - 6-40 VDC, 12-24 VAC •Current - 40mA max (24VDC input) •Surge Protection - Thermal fuse, MOV •Relay 1 Output Operation - Close on Presence, Open on Presence •Relay 2 Output Operation - Pulse on Entry, Pulse on Exit •Response Time - 30ms •Operating Temperature - -40° to 140°F (-40° to 60°C) •Dimensions (L x W x H) - 5.1” (130 mm) x 3.15” (80 mm) x 5.5” (140 mm) •Ball Joint Mount Conduit Thread - ½ Inch NPT |
