Comunello DuraGates CGS-500.8P Integrator Cantilever Gate Hardware - Galvanized Steel / 1,760 Lbs
From $735.00
To $3,178.00
Product Details
The all new galvanized steel cantilever system with internal gear-rack drive system. Integrated protection from the weather, tampering, personal injury, unsightly chains. Makes the mechanics disappear for a clean simple look. Comunello quality - DuraGates support!

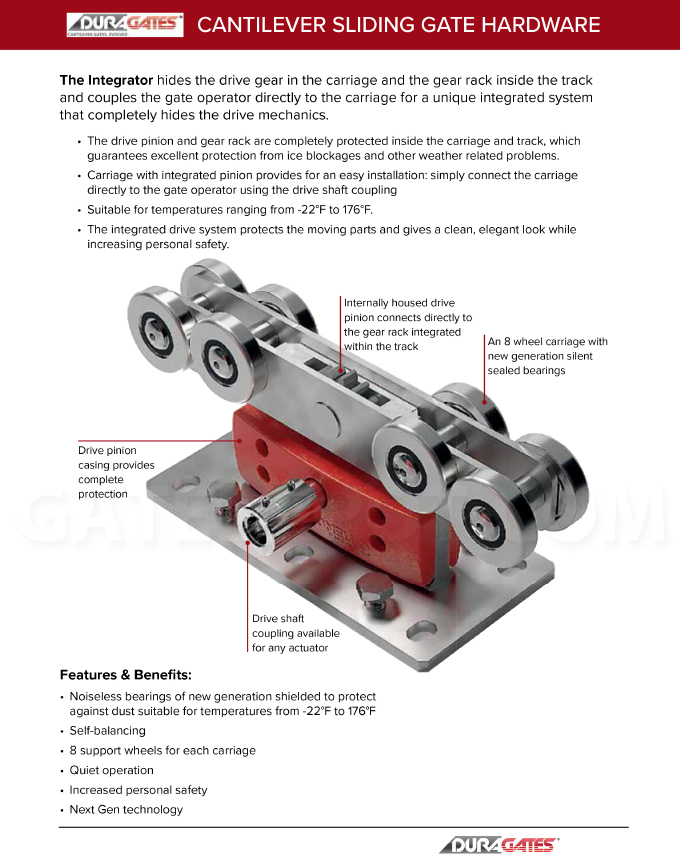

The Integrator hides the drive gear in the carriage and the gear rack inside the track and couples the gate operator directly to the carriage for a unique integrated system that completely hides the drive mechanics.
The drive pinion and gear rack are completely protected inside the carriage and track, which guarantees excellent protection from ice blockages and other weather related problems.
Carriage with integrated pinion provides for an easy installation: simply connect the carriage directly to the gate operator using the drive shaft coupling.
Suitable for temperatures ranging from -22°F to 176°F.
The integrated drive system protects the moving parts and gives a clean, elegant look while increasing personal safety.
All products are manufactured in Italy by Fratelli Comunello, the world leaders in gate hardware. The technical innovation in the system, as compared to a traditional sliding gate, lies in the fact that the entire gate is cantilevered off the ground without any rollers traveling on the ground. This allows for free movement of the gate in uneven ground conditions and reduces the wear and tear on the gate and on any installed gate automation. The sealed bearings on the carriage assembly require no maintenance or lubrication. Besides, it gives the gate a nice clean look with minimal visible hardware. This engineered solution also reduces the length of the counterbalance resulting in a smaller overall gate length.

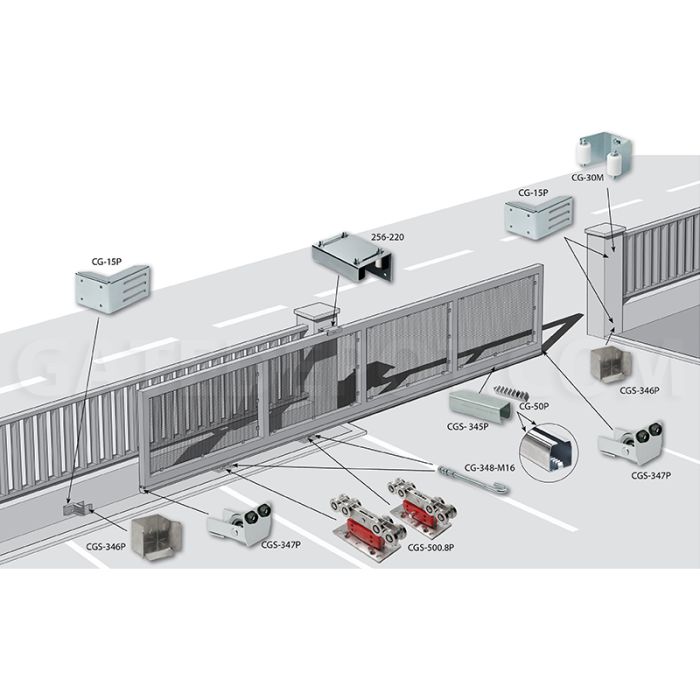

The bottom track is available in galvanized steel, aluminum track and stainless steel and can accommodate a solution for every type of rolling gate project. By welding or mechanically fastening the gate to the bottom track, DuraGates sliding gate system can be used with any gate material such as steel, wood, vinyl, aluminum, chain link, etc.

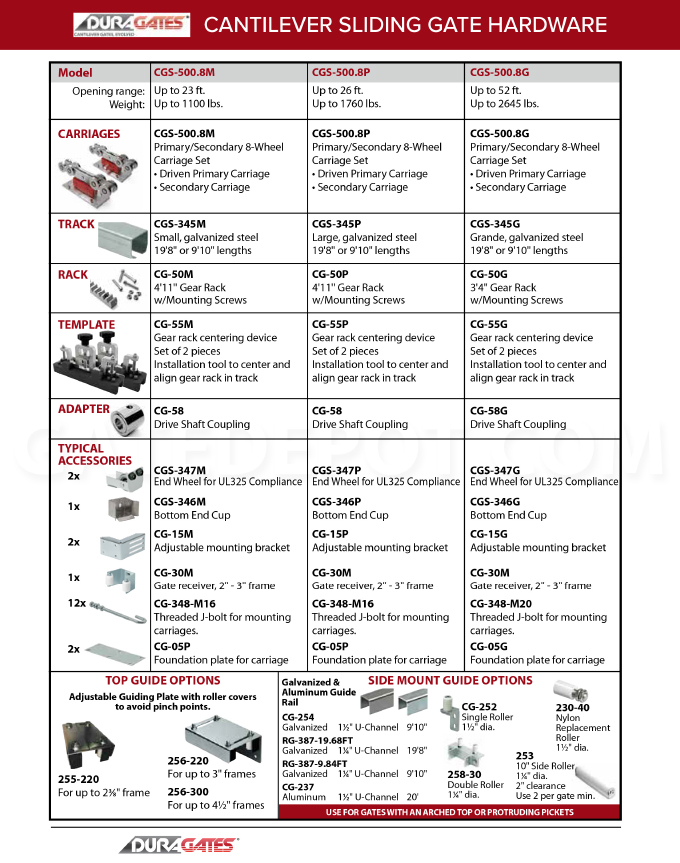

The model selection depends on the combination of the size of the opening and the weight of the gate. Based on the combination, several models may fit your project. The heavier the model, the smaller the counterbalance (tail of the gate) which becomes increasingly important when you have a tight space. Our cantilever gate configurator will provide you the optimal selection of model along with dimensions of the tail of the gate, the position of the carriages and the foundation size required.
The hardware, combined with a range of high-quality gate automation we offer, is truly a long lasting and complete solution for any cantilever sliding gate.

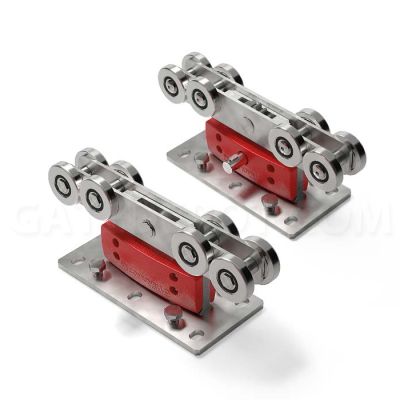

The CGS-500.8P has a large carriage set with integrated drive system connects directly to the gate operator and hides the mechanics within the track for a safe, protected installation. 8 wheels with noiseless shielded bearings protect against dust and increase service life. The Large model is a good solution for large residential gates, most commercial applications, and light weight industrial applications. Automation Ready!
- Noiseless bearings of new generation shielded to protect against dust suitable for temperatures from -22deg:F to 176deg:F
- Self-balancing
- 8 support wheels for each carriage
- Quiet operation
- Increased personal safety
- Next Gen technology
Brand | Comunello |
---|
