DuraGate JSTD Economy Teardrop Hinges - Plain Steel
Choose from 6 Pin Sizes
• High Weight Load Capacity
• Can be Welded on as Lift-Off or can be Permanently Mounted
• Stainless Steel Pins & Washers
• Sold in Pairs
From $5.50
To $210.75
SKU
DGT-jstd-bundle
Product Details

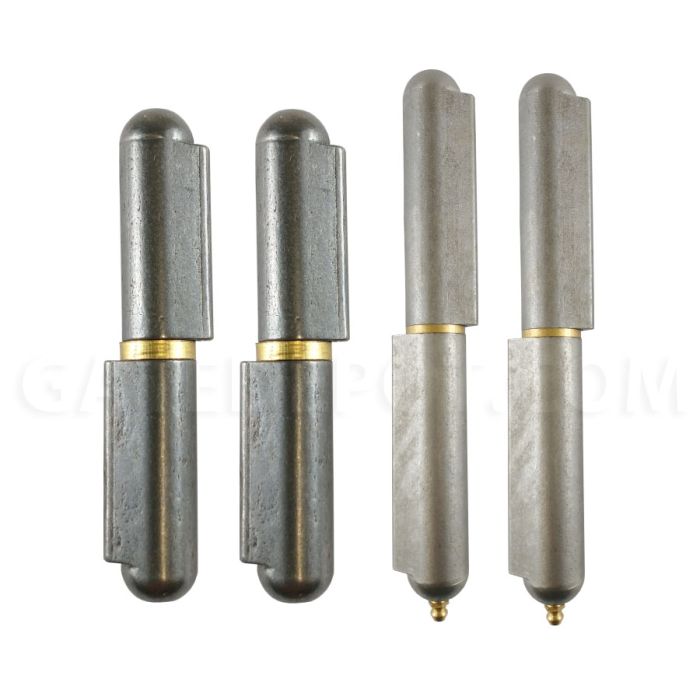

The two-piece weld on hinge is extremely popular due to its high weight load capacity as well as its professional appearance. It can be painted to match the door and frame, and is ideal for gates, steel doors, screen doors, and trailers. It can be welded on as lift-off or it can be permanently mounted. These weld-on hinges can also be zinc plated for extra protection against the elements.
|
Part Number
|
Pin Diameter
|
L
|
D
|
H
|
|
|
JSTD-050
|
3/16"
|
2"
|
5/16"
|
13/32"
|
|
|

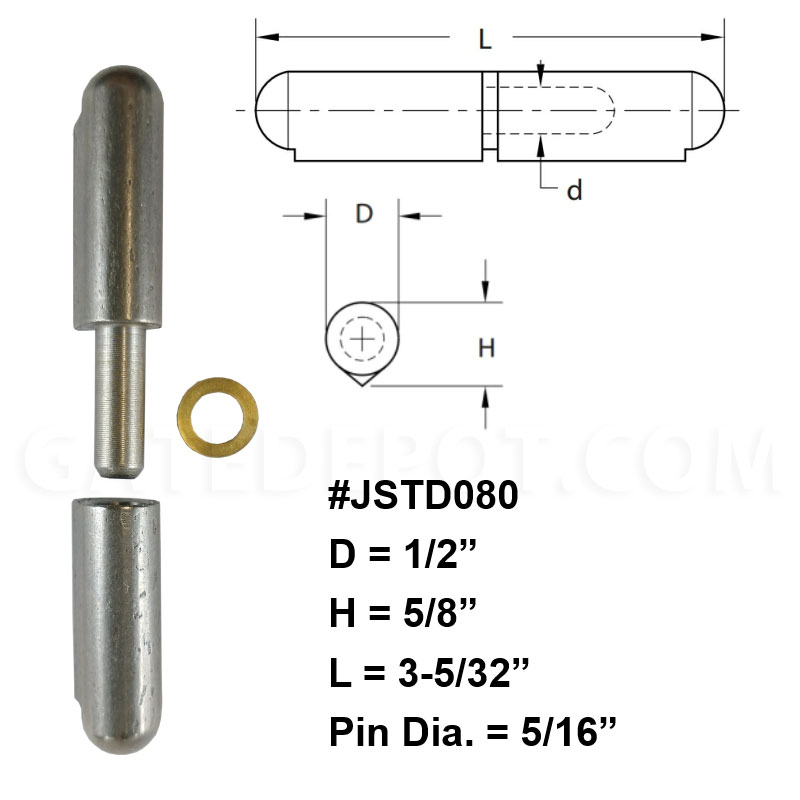

JSTD-080
|
5/16"
|
3-5/32"
|
5/8"
|
5/8"
|
|
|

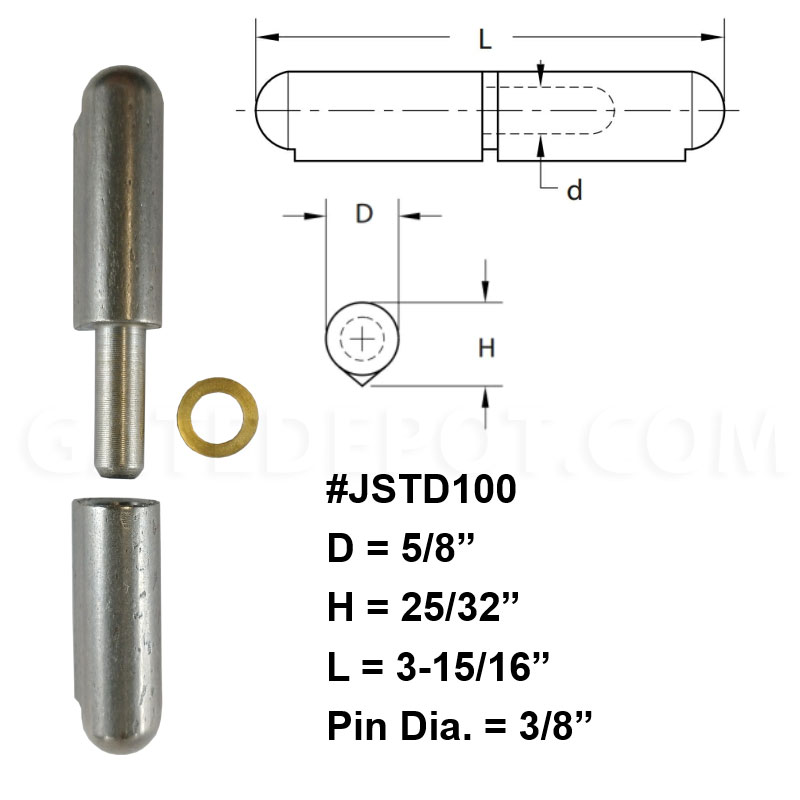

JSTD-100
|
3/8"
|
3-15/16"
|
5/8"
|
25/32"
|
|
|

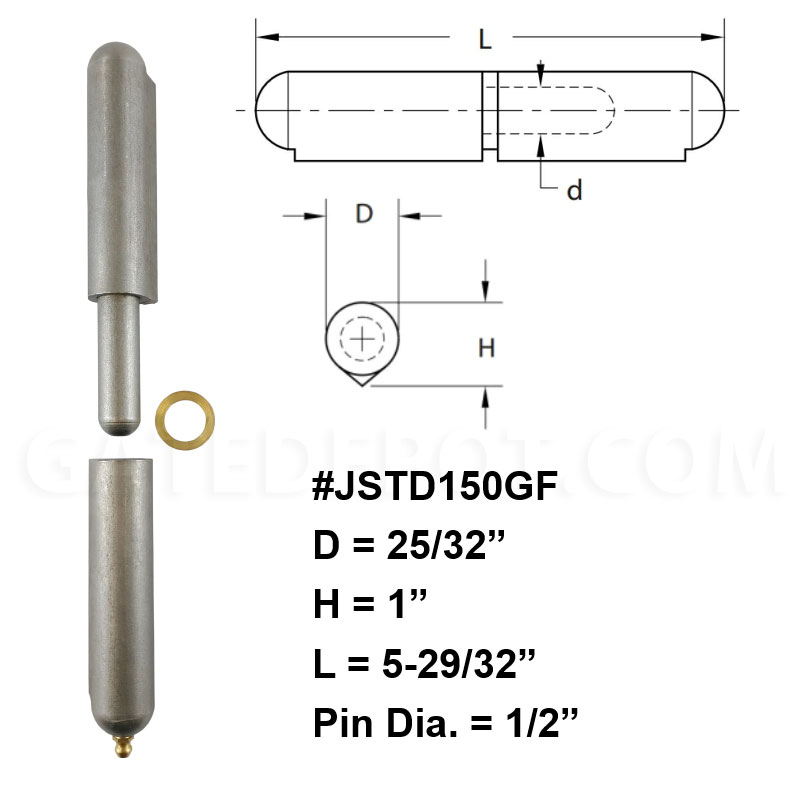

JSTD-150GF
|
1/2"
|
5-29/32"
|
25/32"
|
1"
|
|
|

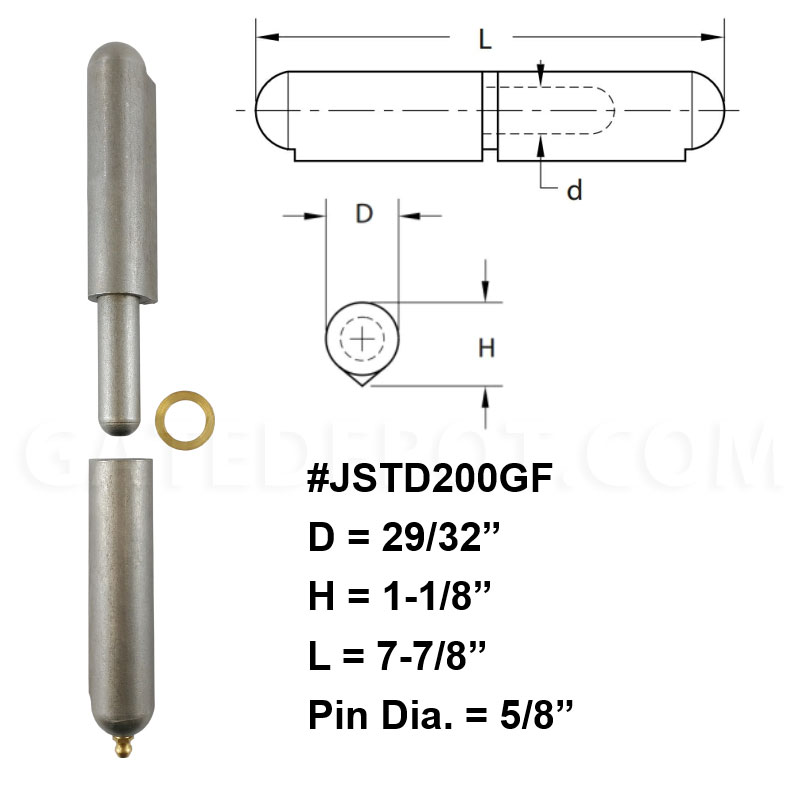

JSTD-200GF
|
5/8"
|
7-7/8"
|
29/32"
|
1-1/8"
|
|
|

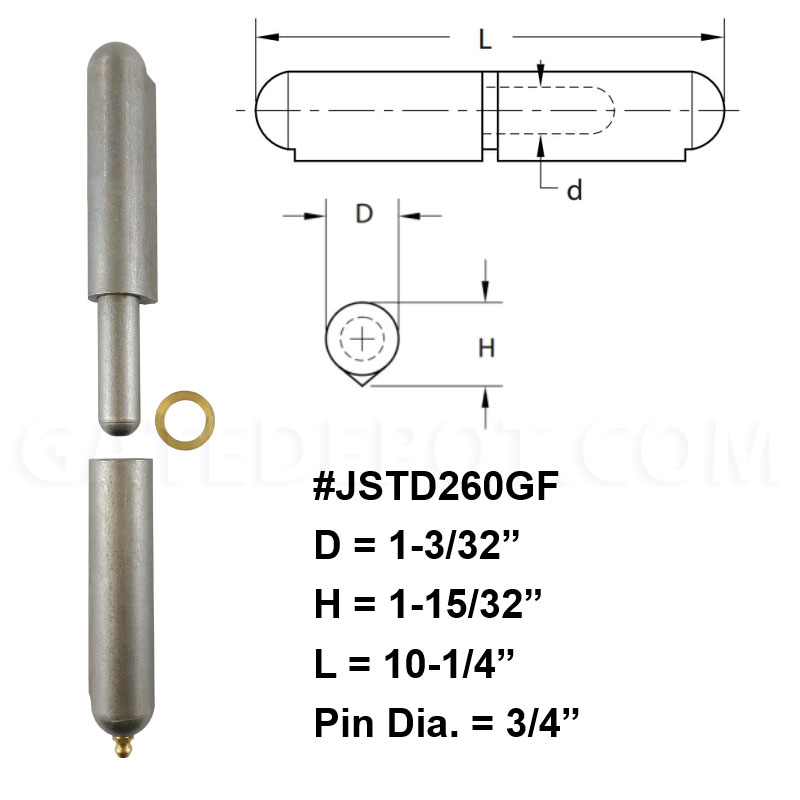

JSTD-260GF
|
3/4"
|
10-1/4"
|
1-3/32"
|
1-15/32"
|
| Brand | Duragate |
|---|
