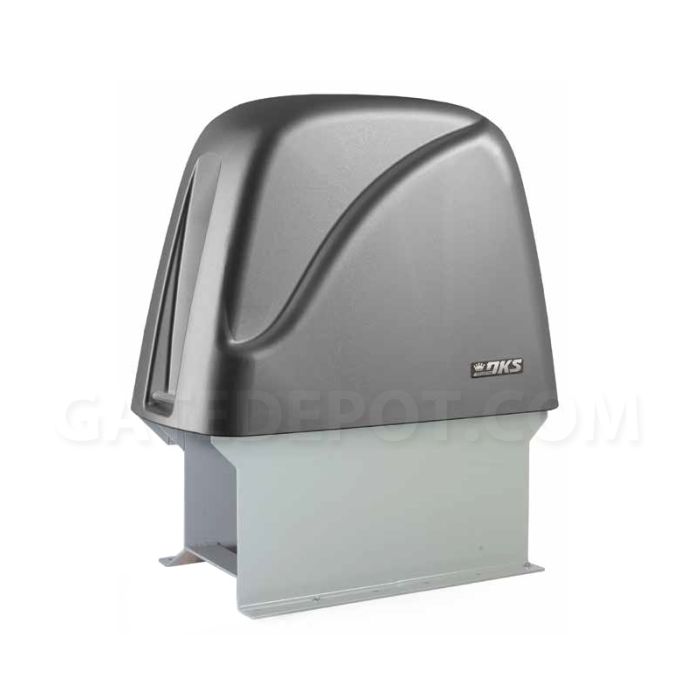

DoorKing 9550 5HP Slide Gate Operator
From $23,218.00
To $75,858.00
Product Details
DKS 9500 series of Vehicular Slide Gate Operators are designed for use on very large and very heavy gates in maximum security applications only. These Operators must never be used in applications serving the general public. These heavy duty Operators use a high tensile steel alloy roller chain as the pulling medium, which is immune to slippage and the challenges of uneven terrain and also simplifies installation. User can set the speed of the gate up to 4 ft/sec. (1.2 m/sec.), with an electronic braking option.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
- Speed control module
- Slow start / slow stop
- Direct driven limit nuts
- Anti-tailgating feature
- Adjustable partial open
- Gate tracker reporting output
- Built-in diagnostics
- Ports for plug-in loop detectors
- Selectable stop / reverse loop functions
- Two 115 VAC convenience outlets
- Fail-secure operation includes crank for manual operation
- Programming switches
- Built-in 3-button control (open-close-stop)
- Built-in power On/Off switch
- Maximum gate length 160-feet
- Maximum gate weight 15,000 Lb., #100 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- Adjustable speed 1–2 Ft./sec
- 40:1 gear reduction running in a continuous oil bath
- Electronic braking
- 5 HP continuous-duty motor
- 208, 230, 460 VAC three-phase
- Operator is shipped with chain brackets and 20-feet of #100 chain
- Class III and IV applications only
- ETL Listed
- MADE IN USA
