DoorKing 9000-386 Secondary Slide Gate Operator - 1 HP

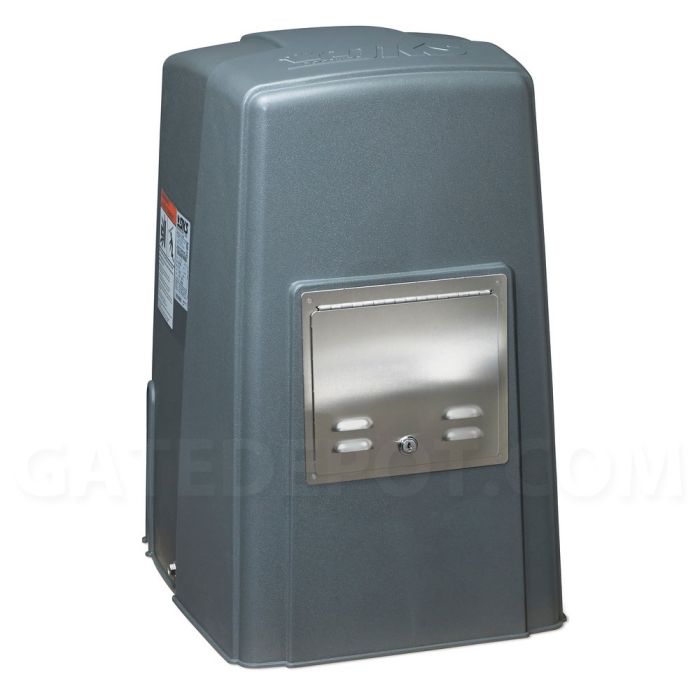

The DKS Model 9000 Slide Gate Operator offers powerful and safe access control in a small, compact design. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The 9000 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, these Operators will fit most slide gate operation requirements. These Operators are ideally used in residential, commercial or industrial high-use applications.

• Steel frame provides strength and quiet operation
• "T-Handle" release is easily accessible from front of operator
• Operator re-connects automatically when handle is released
• Adjustable partial open limit
• Direct driven limit nuts for precise gate control
• Auto-close timer 1-30 seconds
• Ports for plug-in open and reverse loop detectors — DKS detectors only
• Selectable loop/reverse input function; stop or reverse
• Anti-tailgating feature helps to control un-authorized traffic
• Standard normally closed stop circuit
• Gate Tracker reporting output provides operator data to DKS access control system
• Convenience outlets for accessory transformers
• Built-in power switch and alarm reset switch
• Simple bi-parting gate interface
• Maximum gate width 35-ft.
• Maximum gate weight 1500 pounds (assumes gate is on level ground, in good condition with properly adjusted hardware)
• 115, 208 3ø, 230 3ø, 460 3ø VAC
• Bi-Parting operations available in 115VAC only
• Class I, II, III and IV applications
• Compliant with UL 325 and 991, ETL Listed

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices need to be installed with this gate operator. Operator will not operate without entrapment devices.
