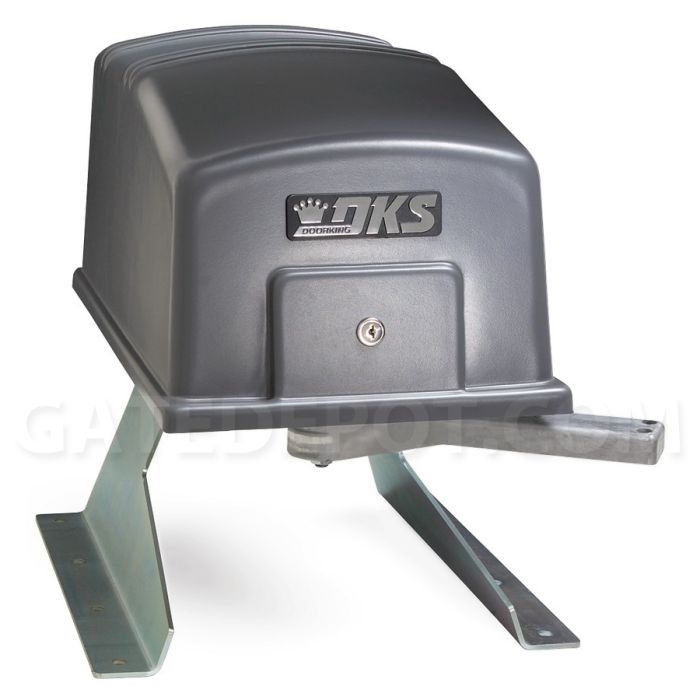

DoorKing 6300-385 Secondary Swing Gate Operator - 1 HP

The unique configuration of these Operators allows the gate arm to rotate from underneath the Operator, enabling the arm to attach to the bottom rail of the gate, were it is virtually unseen from outside the gate. The fully enclosed Operators prevent water from contaminating the output shaft, bearings, and electronics. Additionally, the frame is built from G90 galvanized steel to prevent rusting. These Operators can be installed directly on a concrete pad, or post-mounted to meet any installation requirements.

With safety in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class.

• Self-adjusting, no maintenance magnetic limits
• Overlap feature for dual swing gate operation
• Ports for plug-in loop detectors
• Two convenience outlets
• Fail-safe release
• Tamper detect circuit
• Gate tracker reporting output
• Programming switches
• Built-in reset switch
• Built-in power On/Off switch
• Maximum gate width 22-feet
• Maximum gate weight 800 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
• Swings gate 90 degrees in approximately 15-seconds
• 1 HP continuous-duty motor
• 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
• Class I, II, III and IV applications
• Compliant with UL 325 and 991. ETL Listed.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices need to be installed with this gate operator. Operator will not operate without entrapment devices.
