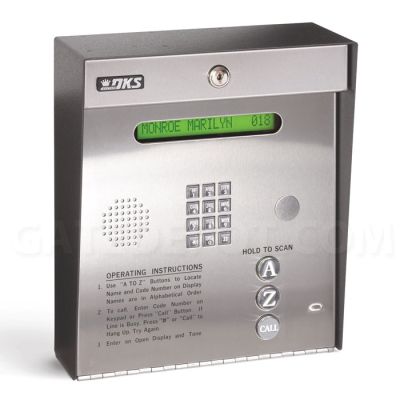

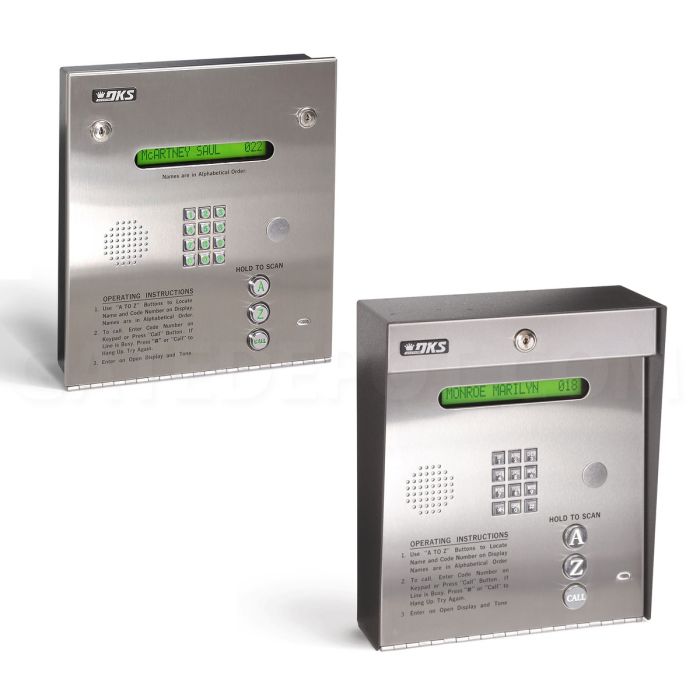

DoorKing 1834 80 Series Telephone Entry System
From $1,911.00
To $6,146.75
Product Details
The Model 1834 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites that have a separate access control system, or require telephone entry only. Each 1830 Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique "One Touch" CALL button and big A and Z scroll buttons makes this system one of the easiest to use on the market today! For additional security, the 1834 allows you to monitor activity AS IT HAPPENS on your computer display.
The 1834 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:
- Cellular 4G-LTE service (note 1)
- VoIP (note 2)
- POTS - Plain Old Telephone Service (note 3)
Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using - IM Server Modem (subscription required). DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.
Go to Connection Options for further details
- Remote Account Manager and Transaction Analysis software is included with the system
- Large easy to use A and Z scroll buttons
- One Touch "CALL" button
- Built-in single-line LCD directory display
- Programmable directory codes (1-4 digits)
- 10 and 11-digit dialing capability
- Live Streaming
- Live transactions
- 8000 event transaction buffer
- Database import/export capability
- LED Lighting illuminates keypad
- Built-in clock/calendar
- Holiday schedule
- Hold open time zones
- Built-in postal lock provision
- True Full Duplex Communication
- Stores up to 3000 telephone numbers and names
- Stores up to 255 area codes
- Transaction buffer stores last 8000 events
- 8 hold open time zones
- 4-digit entry codes, one for each telephone number
- 2 form "C" dry contact relays
- Single-line directory display uses super-twist LCD with 1/2-inch characters
- EEPROM memory chip
- Requires touch-tone, loop-start central office phone line
- 16 VAC, 20 VA power transformer supplied
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4528 A
- Compliant with UL 294 / ETL listed
- Dimensions Surface Mount: 13"H x 11.25"W x 4.75"D

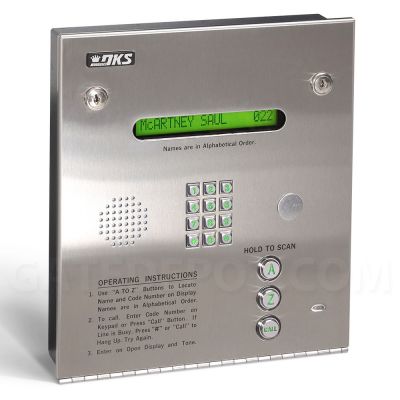

- Dimensions Flush Mount: 13.25"H x 12"W x 3.25"D
- Dimensions Wall Mount: 15"H x 13.25"W x 3.5"D
| Brand | Doorking |
|---|
Showcased Accessories
- Multiple Unit / Access Point Control Systems
- Goosenecks
- Power Supplies
- Wire & Cable
- Access Control Replacement Parts
- All Products
- Google Feed
Product Manuals
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-5-manual_2022-03_Rev_Y_1
(15.04 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-5-manual_2020-06_Rev_X
(15.04 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-4-manual_2018-08_Rev_V
(14.89 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-3-i-manual_2017-03_Rev_U
(14.89 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-3-h-manual_2016-10_Rev_T
(14.86 MB)
doorking-1833-1834-1835-1837-1838-1838ap-remote-account-manager-version-6-3-h-manual_2015-10_Rev_S
(14.86 MB)
Product Brochures
Additional Resources
doorking-1833-1834-1835-1837-1838-software-compatibility-with-mac-computers_2016-02_Rev_A
(216.57 kB)
-
33====
-
DoorKing 1598-010 Slave Keypad Interface BoardDKS-1598-010 1598-010• Replacement Wiring Interface Board for 1814-075 Secondary KeypadSee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$60.25
33==== -
DoorKing 1804-016 Truss Head ScrewDKS-1804-016 1804-016• Screw Truss Head 6-32 x 3/16"See More Details
• 3-5 Day Lead Time$3.45
33==== -
DoorKing 1804-024 Switch - Micro NO NC CDKS-1804-024 1804-024• Micro Switch - NO NC CSee More Details
• 3-5 Day Lead Time$17.50
33==== -
DoorKing 1804-038 Ribbon CableDKS-1804-038 1804-038• Ribbon Cable• Use with 1895-016 KeypadSee More Details
• 3-5 Day Lead Time$27.25
33==== -
$6.35
33==== -
Doorking 1804-196 Gasket - Speaker / 1/16"DKS-1804-196 1804-196•Gasket - Speaker / 1/16"See More Details
• 3-5 Day Lead Time$7.00
33==== -
DoorKing 1804-290 Square SpeakerDKS-1804-290 1804-290• Square Speaker - 5 WattSee More Details
• 3-5 Day Lead Time$31.25
33==== -
DoorKing 1804-702 LED Retrofit KitDKS-1804-702 1804-702• LED Retrofit KitSee More Details
• Use with 1808, 1814, 1815, 1817, 1834, 1835 Surface Mount
• Replaces 1814-070
• 3-5 Day Lead Time$40.25
33==== -
DoorKing 1807-006 HandsetDKS-1807-006 1807-006• Replacement Handset with Armored CableSee More Details
• 3-5 Day Lead Time$251.75
33==== -
$158.25
33==== -
DoorKing 1814-003 Plastic Display CoverDKS-1814-003 1814-003• Cover, plastic displaySee More Details
• 3-5 Day Lead Time$27.25
33==== -
DoorKing 1814-004 Plastic Light CoverDKS-1814-004 1814-004• Cover, plastic lightSee More Details
• 3-5 Day Lead Time$20.50
33==== -
DoorKing 1814-049 Terminal - 20-PinDKS-1814-049 1814-049• Terminal, 20-pinSee More Details
• 3-5 Day Lead Time$66.00
33==== -
DoorKing 1814-053 FaceplateDKS-1814-053 1814-053• Face Plate, Phone Surface, 3-ButtonSee More Details
• 3-5 Day Lead Time$229.75
33==== -
DoorKing 1814-054 FaceplateDKS-1814-054 1814-054• Face Plate, Phone Flush, 3-ButtonSee More Details
• 3-5 Day Lead Time$342.00
33==== -
$254.00
33==== -
DoorKing 1814-140 Button Assembly - Chrome ADKS-1814-140 1814-140• Button Assembly, Chrome ASee More Details
• 3-5 Day Lead Time$41.00
33==== -
DoorKing 1814-141 Button Assembly - Chrome ZDKS-1814-141 1814-141• Button Assembly, Chrome ZSee More Details
• 3-5 Day Lead Time$41.00
33==== -
DoorKing 1814-142 Button Assembly - Chrome CALLDKS-1814-142 1814-142• Button Assembly, Chrome CALLSee More Details
• 3-5 Day Lead Time$41.00
33==== -
DoorKing 1834-009 Control BoardDKS-1834-009 1834-009• Circuit Board Replacement PartSee More Details
• Memory Not Included
• For 1834 Wall Mount Systems Only
• No Display
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$1,340.00
33==== -

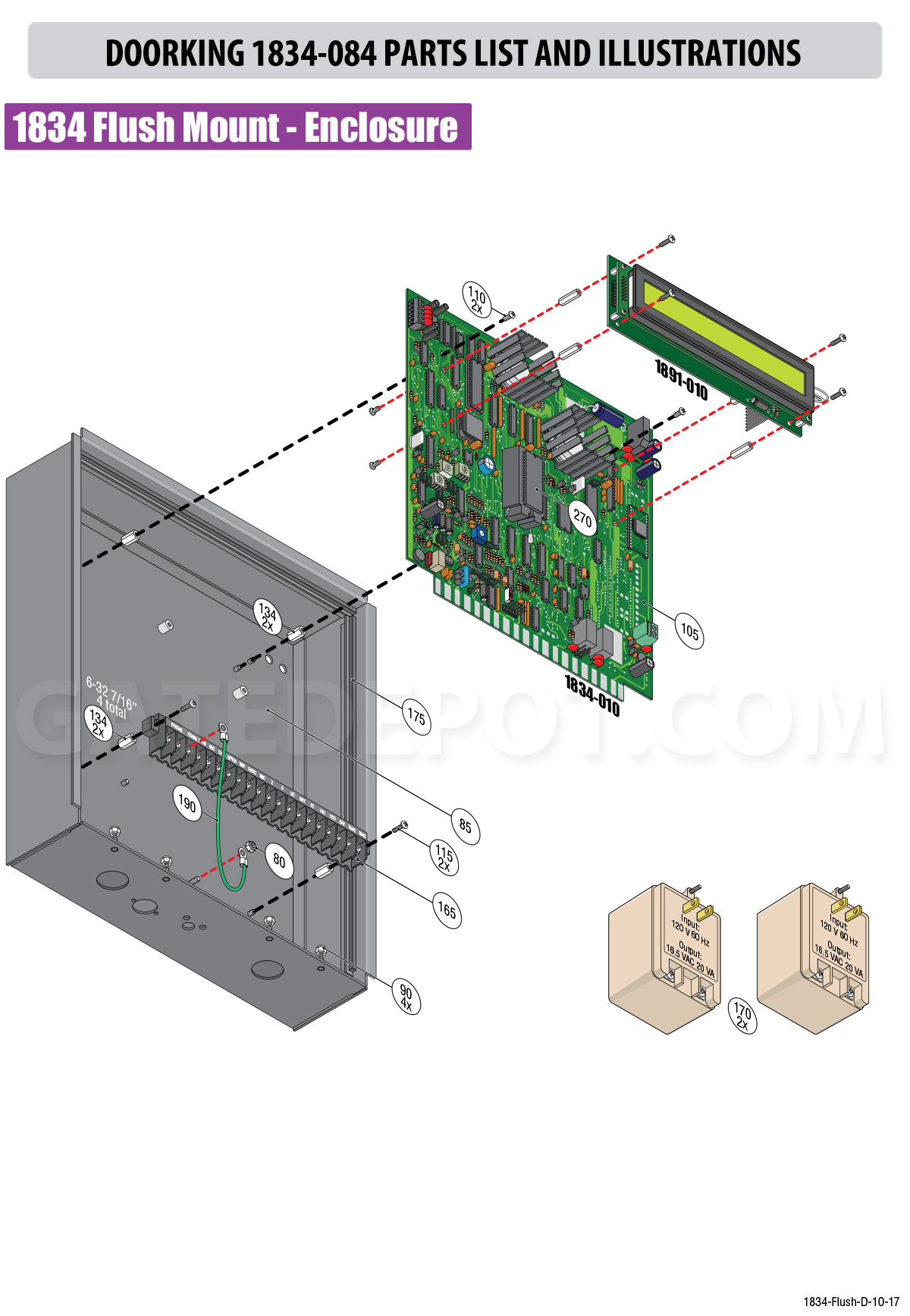

DoorKing 1834-010 Control BoardDKS-1834-010 1834-010• Circuit Board Replacement PartSee More Details
• Memory Not Included
• For 1834 Surface & Flush Mount Systems Only
• Includes Display
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$1,340.00
33==== -
DoorKing 1891-010 LCD Directory DisplayDKS-1891-010 1891-010• LCD Directory DisplaySee More Details
• Single Line / 20 Character
• Use with 1834 & 1835 Systems
• 3-5 Day Lead Time$599.00
33==== -
Doorking 1897-050 Rubber O TensionerDKS-1897-050 1897-050• Rubber O Tensioner for LogoSee More Details
• 3-5 Day Lead Time$6.00
33==== -
DoorKing 1897-053 GasketDKS-1897-053 1897-053• GasketSee More Details
• For 9000
• 3-5 Day Lead Time$7.70
33==== -
DoorKing 1998-010 Control BoardDKS-1998-010 1998-010• Replacement Microphone Board OnlySee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$89.00
33==== -
DoorKing 2356-010 PCB LED LightDKS-2356-010 2356-010• PCB LED Light StarightSee More Details
• 3-5 Day Lead Time$20.75
33==== -
DoorKing 2600-734 Nameplate - Plastic DKS SmallDKS-2600-734 2600-734• Nameplate - Plastic SmallSee More Details
• 3-5 Day Lead Time$13.25
33==== -
DoorKing 2802-040 Clamp - Washer Push OnDKS-2802-040 2802-040• Washer Push on ClampSee More Details
• 3-5 Day Lead Time$5.45
33==== -
DoorKing 2902-003 Nut - Nylon Lock - 6-32DKS-2902-003 2902-003• Nut - Nylon Lock - 6-32See More Details
• 3-5 Day Lead Time$4.45
33==== -
DoorKing 2902-006 Nut - Nylon Lock - 10-32DKS-2902-006 2902-006• Nut - Nylon Lock - 10-32See More Details
• 3-5 Day Lead Time$4.40
33==== -
DoorKing 2905-003 Screw - Round Head - 6-32 x 1/2DKS-2905-003 2905-003• Screw - Round Head - 6-32 x 1/2See More Details
• 3-5 Day Lead Time$4.30
33==== -
DoorKing 3002-004 Spacer - Nylon 6 x 7/16DKS-3002-004 3002-004• Spacer - Nylon 6 x 7/16See More Details
• 3-5 Day Lead Time$4.70
33==== -
DoorKing 4001-035 Lock & KeysDKS-4001-035 4001-035• Lock N16058BDxSFx2K Key 16120See More Details
• Includes Lock & 2 Keys
• 3-5 Day Lead Time$37.00
