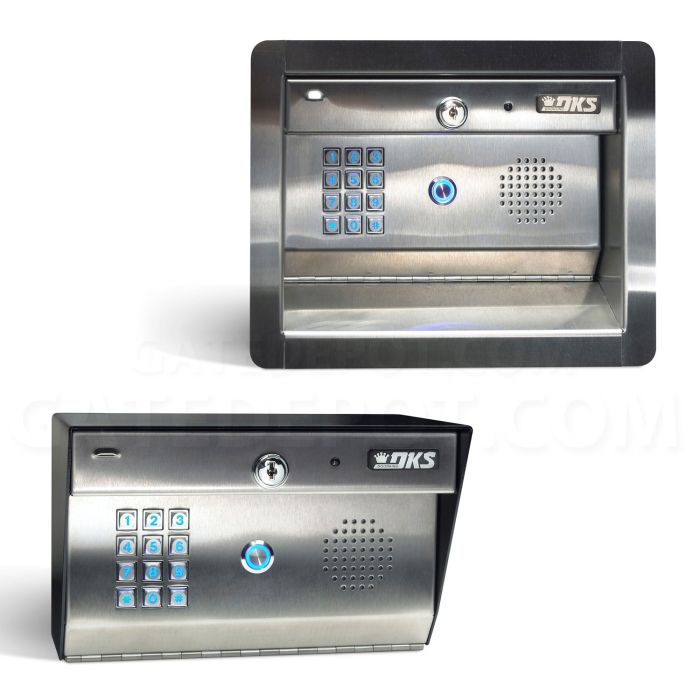

DoorKing 1812 Classic Telephone Entry Intercom System
Choose Flush or Surface Mount
Surface Mount Available w/ Camera
• 3 Phone Numbers / 50 Entry Codes
• Call Forward Time Zones
• Do Not Disturb
• Analog Voice Circuit
• 2 Relays
• 2 Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $1,050.00
To $4,101.00
SKU
DKS-1812-classic-bundle
Product Details
The model 1812 is a unique telephone intercom system that allows homeowners to use their telephone as an intercom to speak to a guest at a front door or gate without the necessity to pay for an additional telephone line at their home. With its "intercom mode" programming feature, the 1812 can also be connected to a PBX or KSU type system, making it ideal for small businesses to control access through a single door or gate. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. The 1812 is available in surface, wall and flush mount designs.
- Distinctive double ring identifies visitor calls from regular calls
- Call waiting
- Call forwarding
- 3 preprogrammed call out telephone numbers
- "Do Not Disturb" time zone
- Hold open time zones
- Built-in time clock
- Entry code time zone
- "Flash" entry code
- LED lighted faceplate
- 2 relays for door/gate control
- Hands free, full duplex digital audio circuit
- Connects in series with the residential phone line. By-pass switch provided
- EEPROM Memory Chip
- Stores up to 3 call forwarding numbers
- Full duplex communication
- 50, 4-digit entry codes
- 24 VAC, 20 VA (250 ma) power transformer provided
- FCC (US): DUF6VT-12874-OT-0
- DOC (CAN): 1736 4507 A
- Complies with UL 294; ETL Listed

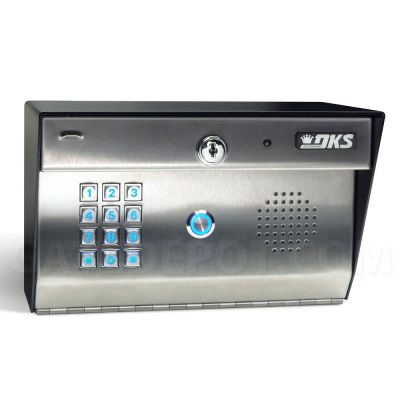

- Surface mount dimensions: 6.13"H x 10"W x 5.25"D

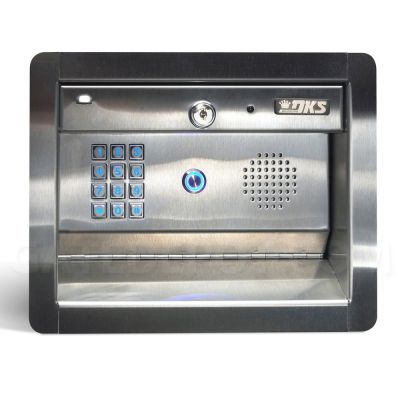

- Flush mount dimensions: 9.13"H x 11.88"W x 4.5"D
| Brand | Doorking |
|---|
Showcased Accessories
- Multiple Unit / Access Point Control Systems
- Goosenecks
- Power Supplies
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources

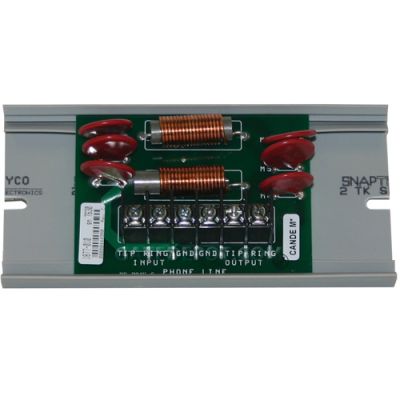

doorking-1802ap-1808ap-1810ap-1812c-1812p-1812ap-grounding-and-surge-suppression_2006_Rev_D
(355.36 kB)
-
26====
-
$7.80
26==== -
DoorKing 1804-038 Ribbon CableDKS-1804-038 1804-038• Ribbon Cable• Use with 1895-016 KeypadSee More Details
• 3-5 Day Lead Time$27.25
26==== -
Doorking 1804-196 Gasket - Speaker / 1/16"DKS-1804-196 1804-196•Gasket - Speaker / 1/16"See More Details
• 3-5 Day Lead Time$7.00
26==== -
DoorKing 1804-704 LED Retrofit KitDKS-1804-704 1804-704• LED Retrofit KitSee More Details
• Use with 1812
• 3-5 Day Lead Time$26.00
26==== -
DoorKing 1812-017 Push Button AssemblyDKS-1812-017 1812-017• Push Button AssemblySee More Details
• 3-5 Day Lead Time$36.25
26==== -
DoorKing 1812-029 Phone SubplateDKS-1812-029 1812-029• Sub Plate, phoneSee More Details
• 3-5 Day Lead Time$58.50
26==== -
DoorKing 1812-052 FaceplateDKS-1812-052 1812-052• Face Plate, phoneSee More Details
• 3-5 Day Lead Time$147.25
26==== -
DoorKing 1812-102 BoxDKS-1812-102 1812-102• Box, surface mountSee More Details
• 3-5 Day Lead Time$118.75
26==== -
DoorKing 1812-155 BoxDKS-1812-155 1812-155• Box, Rough-in FlushSee More Details
• 3-5 Day Lead Time$118.75
26==== -
DoorKing 1871-010 Control BoardDKS-1871-010 1871-010• Circuit Board Replacement PartSee More Details
• Memory Not Included
• For 1812 Systems Only
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$1,050.00
26==== -
DoorKing 1875-010 By-Pass Switch AssemblyDKS-1875-010 1875-010• 1812 By-Pass Switch AssemblySee More Details
• Replaces 1874-010
• 3-5 Day Lead Time$104.50
26==== -
DoorKing 1895-017 KeypadDKS-1895-017 1895-017• Keypad (with no letters)See More Details
• 3-5 Day Lead Time$118.75
26==== -
Doorking 1897-050 Rubber O TensionerDKS-1897-050 1897-050• Rubber O Tensioner for LogoSee More Details
• 3-5 Day Lead Time$6.00
26==== -
DoorKing 1897-053 GasketDKS-1897-053 1897-053• GasketSee More Details
• For 9000
• 3-5 Day Lead Time$7.70
26==== -
DoorKing 1997-190 Microphone Board HarnessDKS-1997-190 1997-190• Microphone Board Wire HarnessSee More Details
• Use with 1998-010
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$15.50
26==== -
DoorKing 1998-010 Control BoardDKS-1998-010 1998-010• Replacement Microphone Board OnlySee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$89.00
26==== -
DoorKing 1998-020 Replacement Micrphone KitDKS-1998-020 1998-020• Replacement Microphone KitSee More Details
• Use with all Telephone Entry Systems
• Includes Microphone Board and Harness
• 3-5 Day Lead Time$89.00
26==== -
DoorKing 2600-734 Nameplate - Plastic DKS SmallDKS-2600-734 2600-734• Nameplate - Plastic SmallSee More Details
• 3-5 Day Lead Time$13.25
26==== -
DoorKing 2600-794 Plug - 3/16" Black NylonDKS-2600-794 2600-794• Plug - 3/16" Black NylonSee More Details
• 3-5 Day Lead Time$4.45
26==== -
DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8DKS-2616-001 2616-001• Screw - Phillips Head - 6-32 x 3/8See More Details
• 3-5 Day Lead Time$4.35
26==== -
DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4DKS-2616-003 2616-003• Screw - Phillips Head - 6-32 x 3/4See More Details
• 3-5 Day Lead Time$4.50
26==== -
DoorKing 2616-052 Screw - Phillips Head - 10-32 x1/2DKS-2616-052 2616-052• Screw - Phillips Head - 10-32 x1/2See More Details
• 3-5 Day Lead Time$4.95
26==== -
DoorKing 2802-040 Clamp - Washer Push OnDKS-2802-040 2802-040• Washer Push on ClampSee More Details
• 3-5 Day Lead Time$5.45
26==== -
DoorKing 2902-003 Nut - Nylon Lock - 6-32DKS-2902-003 2902-003• Nut - Nylon Lock - 6-32See More Details
• 3-5 Day Lead Time$4.45
26==== -
DoorKing 2905-003 Screw - Round Head - 6-32 x 1/2DKS-2905-003 2905-003• Screw - Round Head - 6-32 x 1/2See More Details
• 3-5 Day Lead Time$4.30
26==== -
DoorKing 4001-035 Lock & KeysDKS-4001-035 4001-035• Lock N16058BDxSFx2K Key 16120See More Details
• Includes Lock & 2 Keys
• 3-5 Day Lead Time$37.00
