DoorKing 1810 Telephone Entry System
Choose Flush or Surface Mount
• 600 Phone Numbers / 1,000 Entry Codes
• Hands free full duplex voice communication
• Programmable Directory Codes (1-4 digits)
• 16-digit dialing
• 2 Relays / 1 Auxiliary Input
• Lighted Paper Directory
• Includes 16 VAC power transformer
• 2 Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $1,080.00
To $3,247.00
SKU
DKS-1810-bundle
Product Details

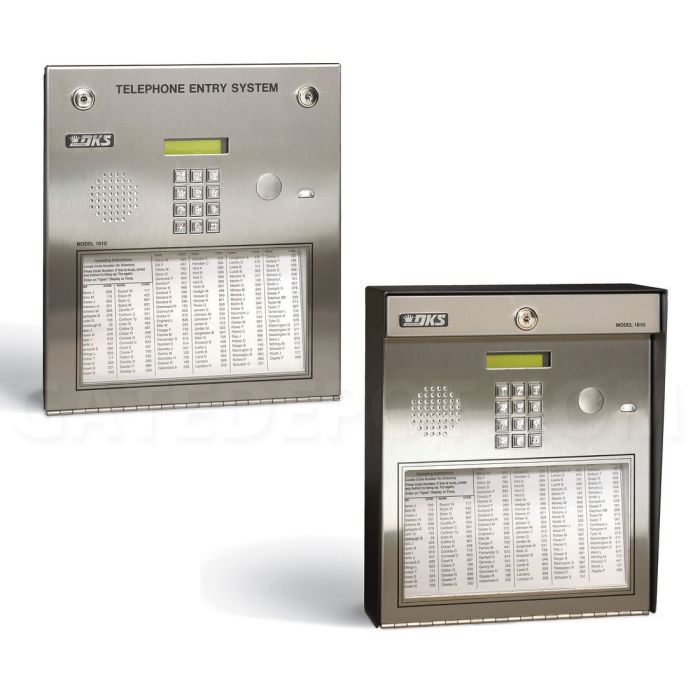

With its built-in lighted directory, the Model 1810 is a complete self-contained telephone entry system that is ideal for small to medium sized apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites. Managers can easily create and change the directory as needed with a word processing program (templates are available from DoorKing). The 1810 is available in both surface and flush mount styles. Visitors are identified by voice communication via the telephone. Access is granted by pressing "9" on your touch tone telephone, or access can be denied by simply hanging up.
- Programmable directory codes (1-4 digits)
- 16-digit dialing
- Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number
- 5-digit entry codes for special needs
- Built-in LED lighted directory
- LED lighting illuminates directory
- Built-in time clock
- Hold open time zones
- Entry code time zones
- "Flash" entry codes
- Built-in postal lock provision
- Programming display
- Stores up to 600 telephone numbers
- EEPROM Memory Chip
- Full duplex communication
- 4-digit entry codes; 1000
- Six, 5-digit entry codes
- 16 VAC, 20 VA (250 ma) power transformer provided
- Ringer equivalence: 0.0 A
- Jack type: RJ11C or W
- FCC (US): DUF6VT-12874-OT-
- DOC (CAN): 1736 4507 A
- Complies with UL 294; ETL Listed

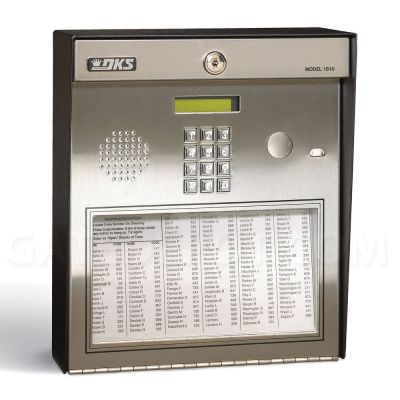

- Surface mount dimensions: 13"H x 11.25"W x 4.75"D

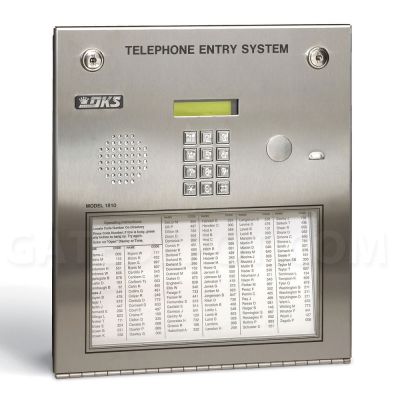

- Flush mount dimensions: 13.25"H x 12"W x 3.25"D
| Brand | Doorking |
|---|
Showcased Accessories
- Multiple Unit / Access Point Control Systems
- Goosenecks
- Power Supplies
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
37====
-
$7.80
37==== -
DoorKing 1802-031 Terminal Strip - 14 PinDKS-1802-031 1802-031• Terminal. 14-PinSee More Details
• 3-5 Day Lead Time$45.75
37==== -
DoorKing 1804-024 Switch - Micro NO NC CDKS-1804-024 1804-024• Micro Switch - NO NC CSee More Details
• 3-5 Day Lead Time$17.50
37==== -
DoorKing 1804-038 Ribbon CableDKS-1804-038 1804-038• Ribbon Cable• Use with 1895-016 KeypadSee More Details
• 3-5 Day Lead Time$27.25
37==== -
$6.35
37==== -
DoorKing 1804-155 Keypad w/ Ribbon Cable KitDKS-1804-155 1804-155• Keypad (no letters) and Ribbon Cable KitSee More Details
• 3-5 Day Lead Time$130.50
37==== -
Doorking 1804-196 Gasket - Speaker / 1/16"DKS-1804-196 1804-196•Gasket - Speaker / 1/16"See More Details
• 3-5 Day Lead Time$7.00
37==== -
DoorKing 1804-290 Square SpeakerDKS-1804-290 1804-290• Square Speaker - 5 WattSee More Details
• 3-5 Day Lead Time$31.25
37==== -
DoorKing 1804-700 LED Retrofit KitDKS-1804-700 1804-700• LED Retrofit KitSee More Details
• Use with 1810 Surface Mount
• 3-5 Day Lead Time$58.00
37==== -
DoorKing 1804-704 LED Retrofit KitDKS-1804-704 1804-704• LED Retrofit KitSee More Details
• Use with 1812
• 3-5 Day Lead Time$26.00
37==== -
DoorKing 1804-707 LED Retrofit KitDKS-1804-707 1804-707• Use with 1810 Flush MountSee More Details
• 3-5 Day Lead Time$40.25
37==== -
DoorKing 1807-006 HandsetDKS-1807-006 1807-006• Replacement Handset with Armored CableSee More Details
• 3-5 Day Lead Time$251.75
37==== -
DoorKing 1810-006 Directory CoverDKS-1810-006 1810-006• Directory Cover, Plastic LargeSee More Details
• 3-5 Day Lead Time$27.25
37==== -
Doorking 1810-007 Directory CoverDKS-1810-007 1810-007• Plastic Directory CoverSee More Details
• 3-5 Day Lead Time$32.00
37==== -
DoorKing 1810-075 Memory Chip - 1000 MemoryDKS-1810-075 1810-075• Replacement 1000 Memory Chip 1802, 1803, 1808, 1810 PhonesSee More Details
• 3-5 Day Lead Time$102.00
37==== -
$158.25
37==== -
$254.00
37==== -
DoorKing 1862-010 Control BoardDKS-1862-010 1862-010• Circuit Board Replacement PartSee More Details
• Memory Not Included
• For 1802, 1802-EPD, 1803, 1808, 1810 & 1819 Systems Only
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$720.00
37==== -
DoorKing 1871-010 Control BoardDKS-1871-010 1871-010• Circuit Board Replacement PartSee More Details
• Memory Not Included
• For 1812 Systems Only
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$1,050.00
37==== -
DoorKing 1875-010 By-Pass Switch AssemblyDKS-1875-010 1875-010• 1812 By-Pass Switch AssemblySee More Details
• Replaces 1874-010
• 3-5 Day Lead Time$104.50
37==== -
DoorKing 1890-010 LCD Programming DisplayDKS-1890-010 1890-010• LCD Programming DisplaySee More Details
• Single Line / 8 Character
• Use with 1802, 1803, & 1810 Systems
• 3-5 Day Lead Time$214.50
37==== -
DoorKing 1895-017 KeypadDKS-1895-017 1895-017• Keypad (with no letters)See More Details
• 3-5 Day Lead Time$118.75
37==== -
Doorking 1897-050 Rubber O TensionerDKS-1897-050 1897-050• Rubber O Tensioner for LogoSee More Details
• 3-5 Day Lead Time$6.00
37==== -
DoorKing 1897-053 GasketDKS-1897-053 1897-053• GasketSee More Details
• For 9000
• 3-5 Day Lead Time$7.70
37==== -
DoorKing 1997-190 Microphone Board HarnessDKS-1997-190 1997-190• Microphone Board Wire HarnessSee More Details
• Use with 1998-010
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$15.50
37==== -
DoorKing 1998-010 Control BoardDKS-1998-010 1998-010• Replacement Microphone Board OnlySee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$89.00
37==== -
DoorKing 1998-020 Replacement Micrphone KitDKS-1998-020 1998-020• Replacement Microphone KitSee More Details
• Use with all Telephone Entry Systems
• Includes Microphone Board and Harness
• 3-5 Day Lead Time$89.00
37==== -
DoorKing 2356-010 PCB LED LightDKS-2356-010 2356-010• PCB LED Light StarightSee More Details
• 3-5 Day Lead Time$20.75
37==== -
DoorKing 2600-734 Nameplate - Plastic DKS SmallDKS-2600-734 2600-734• Nameplate - Plastic SmallSee More Details
• 3-5 Day Lead Time$13.25
37==== -
DoorKing 2616-006 Screw - Phillips Head - 6-32 x 3/16DKS-2616-006 2616-006• Screw - Phillips Head - 6-32 x 3/16See More Details
• 3-5 Day Lead Time$4.35
37==== -
DoorKing 2620-010 Washer - #10 SAEDKS-2620-010 2620-010• Washer - #10 SAESee More Details
• 3-5 Day Lead Time$4.30
37==== -
DoorKing 2802-040 Clamp - Washer Push OnDKS-2802-040 2802-040• Washer Push on ClampSee More Details
• 3-5 Day Lead Time$5.45
37==== -
DoorKing 2902-003 Nut - Nylon Lock - 6-32DKS-2902-003 2902-003• Nut - Nylon Lock - 6-32See More Details
• 3-5 Day Lead Time$4.45
37==== -
DoorKing 2902-006 Nut - Nylon Lock - 10-32DKS-2902-006 2902-006• Nut - Nylon Lock - 10-32See More Details
• 3-5 Day Lead Time$4.40
37==== -
DoorKing 2905-003 Screw - Round Head - 6-32 x 1/2DKS-2905-003 2905-003• Screw - Round Head - 6-32 x 1/2See More Details
• 3-5 Day Lead Time$4.30
37==== -
DoorKing 3002-004 Spacer - Nylon 6 x 7/16DKS-3002-004 3002-004• Spacer - Nylon 6 x 7/16See More Details
• 3-5 Day Lead Time$4.70
37==== -
DoorKing 4001-035 Lock & KeysDKS-4001-035 4001-035• Lock N16058BDxSFx2K Key 16120See More Details
• Includes Lock & 2 Keys
• 3-5 Day Lead Time$37.00
