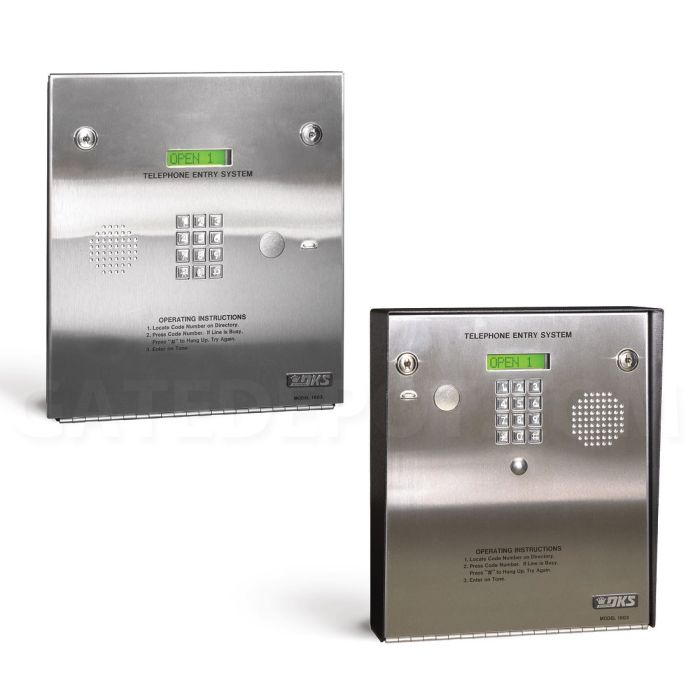

DoorKing 1803 Telephone Entry System
Choose Flush or Surface Mount
• 600 Phone Numbers / 1,000 Entry Codes
• Hands free full duplex voice communication
• 2 Relays / 1 Auxiliary Input
• Stainless steel faceplate
• Postal lock provision
• 2 Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $248.50
To $1,335.50
SKU
DKS-1803-bundle
Product Details
The model 1803 is an ideal telephone entry system that is loaded with features and is suited for applications that do not require a directory or in applications where a separate directory exists. This unit is available in both surface and flush mount configurations. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.
- Programmable directory codes (1-4 digits)
- 16-digit dialing
- Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number
- 5-digit entry codes for special needs
- Built-in time clock
- Hold open time zones
- Entry code time zones
- "Flash" entry codes
- Programming display
- Stores up to 600 telephone numbers
- EEPROM Memory Chip
- Full duplex communication
- 4-digit entry codes; 1000
- Six, 5-digit entry codes
- 16 VAC, 20 VA (250 ma) power transformer provided
- Ringer equivalence: 0.0 A
- Jack type: RJ11C or W
- FCC (US): DUF6VT-12874-OT-0
- DOC (CAN): 1736 4507 A
- Complies with UL 294; ETL Listed
- Surface mount dimensions: 13"H x 11.25"W x 4.5"D
- Flush mount dimensions: 13.25"H x 12"W x 3"D
| Brand | Doorking |
|---|
