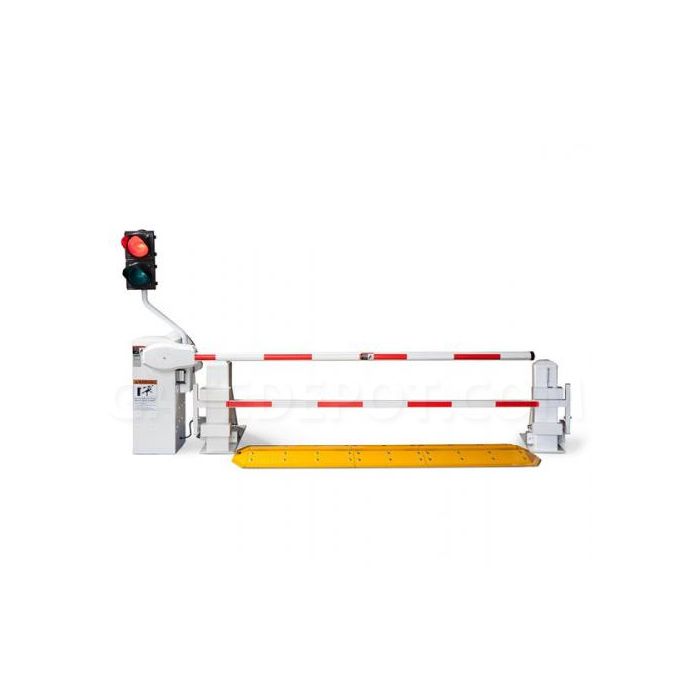

DoorKing 1603-580 Barrier Gate Operator / 1620 Lane Barrier Add-On - 14'
From $2,930.00
To $81,471.50
Product Details
The DKS Lane Barrier Accessory System is an easy add-on to the popular 1601 Barrier Gate Operator. The Lane Barrier is ideal in applications where a higher degree of vehicle traffic control is desired, but without the expense of bollards, wedges or crash beams — making it ideal for apartment communities, gated condominiums, car rental agencies, parking lots and toll booths.
*This Lane Barrier System is not crash rated. It is intended to provide a formidable barrier to help prevent passenger vehicles and light-duty trucks from driving through a controlled traffic lane.
REQUIRES:
- 1603-580 Barrier Gate Operator
- 1601-555 / 1602-567 Barrier Arm
- 1601-235 Hardware Kit
- 8080-306 / 8080-309 / 8080-096 Red/Green Reverse Edge
- 1603-222 Traffic Signal
- 8080-057 Reflective Photo Beam & 9411-010 Loop Detector / Pedestrian Protection

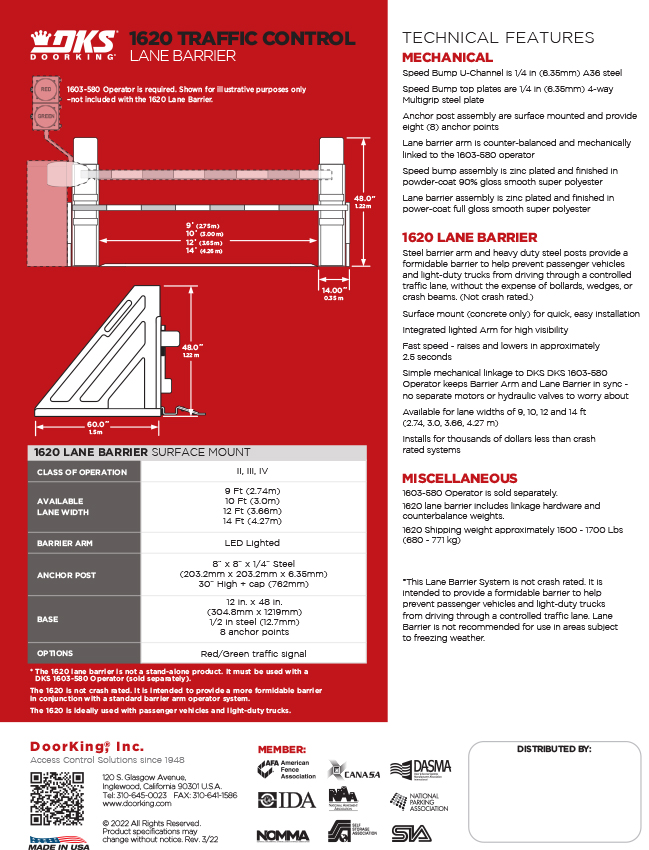

Features
- Steel barrier arm and heavy-duty post
- Surface mount (concrete only) — installs for thousands of dollars less than crash rated systems
- Fast speed — raises and lowers in approximately 2.5 seconds
- Simple mechanical linkage to DKS 1603-580 Operator keeps Barrier Arm and Lane Barrier in sync — no separate motors or hydraulic valves to worry about
- Available for lane widths of 9 Ft (2.74m), 10 Ft (3.0m), 12 Ft (3.66m) and 14 Ft (4.27 m)
- Best use is with passenger vehicles and light-duty trucks only
- Speed bump U-channel is 1/4 In (6.35mm) A36 steel
- Speed bump top plates are 1/4 In (6.35mm) 4-way multigrip steel plate
- Speed bump assembly is zinc plated and finished in powder-coat 90% gloss
- Anchor post assembly are surface mounted 8 In (203.2mm) x 8 In (203.2mm) x 1/4 In (6.35mm), 48 In (1219mm) high (+cap)
- Anchor base plates are 12 In (304.8mm) x 42 In (1067mm) x 1/2 In (12.7mm) with eight (8) anchor points
- Anchor post assemblies is zinc plated and finished in powder-coat full gloss super polyester
| Brand | Doorking |
|---|
