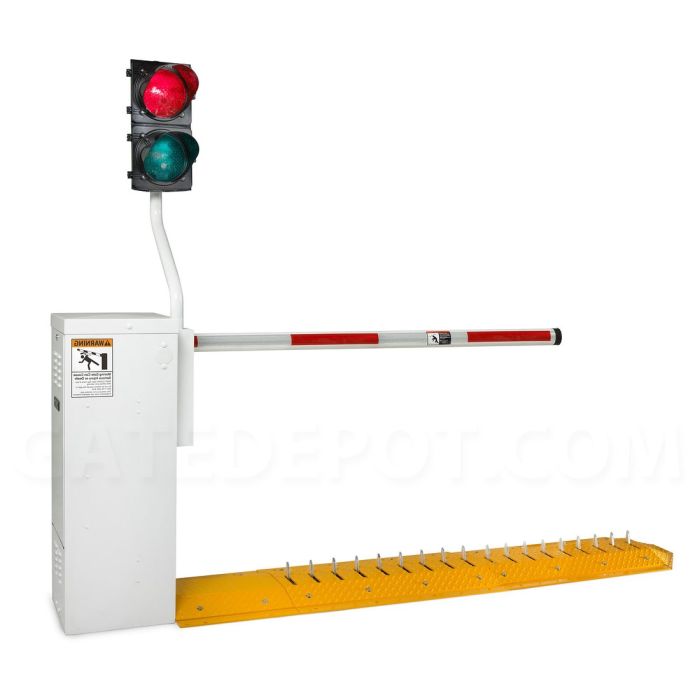

DoorKing 1603 Barrier Gate Operator / Automated Spike System - 14'

The DKS model 1603 Barrier Gate Operator / Automated Spike System is designed as a modular system allowing for easy flexibility in different applications and easy installation. The 1603 operator is designed with many advanced features and mechanically links the spikes to the barrier arm. The surface mount spikes are easy to install and do not require any trenching or excavating. The 1603 auto-spike system is ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.

CAUTION: Installation and use of traffic control spike units in areas that are subject to freezing weather with potential of snow and ice accumulation IS NOT RECOMMENDED. The units can freeze in the up position and cause unintended damage or injury due to the inability for the spikes to retract.

A complete 1603 / auto-spike system consist of several different components. A typical system will require:

• 1603 operator
• Drive / Tunnel section(s) as needed
• Spike section(s) as needed
• End cap
• Barrier arm
• Arm hardware kit
• Speed bumps

A traffic signal and/or warning sign is required with this system. Contact your professional DKS system installer, or DoorKing, for more information on complete system requirements.

Operator

• Magnetic limit control
• Ports for plug-in loop detectors
• Automatic sequencing inputs for use with slide and swing gate operators
• Up input memory buffer
• Down memory option
• Multiple up commands
• Two convenience outlets
• Gate tracker reporting output
• Programming switches
• Built-in power On/Off switch
• Left or right hand mount
• 1/2 HP continuous-duty motor
• 115, *230, *460 VAC (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
• 40:1 gear-box running in a continuous oil bath
• Arm rotates 90° in approximately 1.5 seconds
• Class II, III and IV applications
• Compliant with UL 325 and 991. ETL Listed.

Spike Sections

• Maximum 20,000 Lb. per axle weight limit

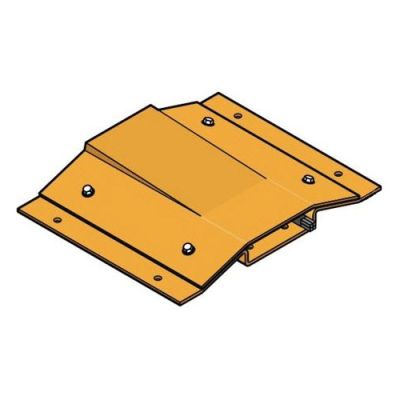

• Tunnel sections surface mount: 31"W x 3"H x 24 or 36"L
• Spike sections surface mount: 31"W x 3"H x 36"L
• End Cap: 31"W x 3"H x 12.25"L

Options

• 14 - Foot Octagonal Aluminum Arm
• 14 - Foot Octangonal Aluminum Arm Rev Edge + Lighted Red / Green LEDs
• 14 - Foot Octangonal Aluminum Arm Rev Edge
• 14 - Foot Round Aluminum Arm
• 14 - Foot Round Aluminum Arm Lighted White LEDs
• DKS Pedestrian Protection System
• Plug-in loop detectors
• DC powered convenience open
• Heater kit
• Fan kit
• Surge suppressors
• Manual Crank kit

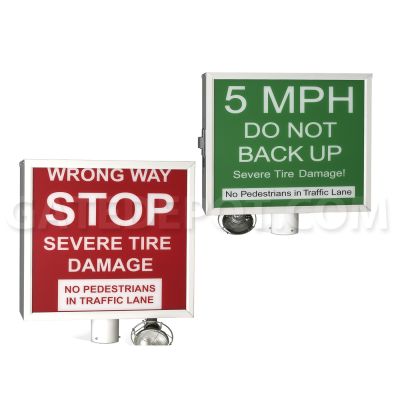

*Note: A Warning Sign and/or a Traffic Signal MUST be used with this operator

**Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices (Pedestrian Protection System) need to be installed with this gate operator. Operator will not operate without entrapment devices.
