DoorKing 1602-590 Barrier Gate Operator / 1625 Wedge Barrier System

Help prevent passenger vehicles and light-duty trucks from driving through a controlled traffic lane.

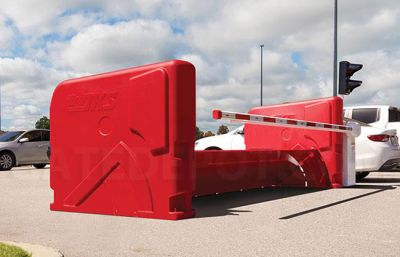

The DKS Wedge Barrier Accessory System is designed to be used with the 1602-590 operator. The Wedge Barrier is ideal in applications where a higher degree of vehicle traffic control is desired, but without the expense of bollards, wedges or crash beams – making it ideal for apartment communities, gated condominiums, car rental agencies, parking lots and toll booths.

REQUIRES

• 1603-590 Barrier Gate Operator
• 1601-555 / 1602-567 Barrier Arm
• 1601-235 Hardware Kit
• 8080-306 / 8080-309 / 8080-096 Red/Green Reverse Edge
• 1603-222 Traffic Signal

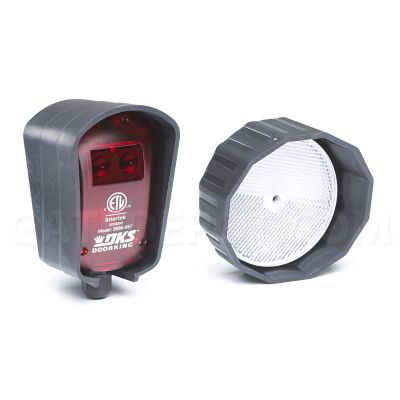

• 8080-057 Reflective Photo Beam & 9411-010 Loop Detector / Pedestrian Protection

Features

• Surface mount for quick, easy installation
• Fast speed - raises and lowers in approximately 3.5 seconds
• Simple mechanical linkage to DKS 1602-590 Operator keeps Barrier Arm and Wedge Barrier in sync - no separate motors or hydraulic valves to worry about

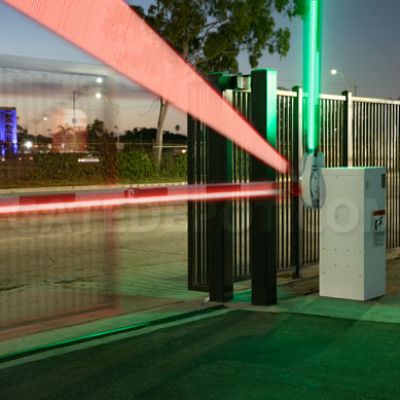

• Red (down) / Green (up) LED lighted Barrier Arm for high visibility
• Anchor Plates are 1/2 in (12.7mm) A36 steel
• Anchor post assembly are surface mounted and provide fourteen (14) anchor points
• Wedge barrier is counter-balanced and mechanically linked to the 1602-590 operator. No hydraulics or environmental issues to worry about
• Lane barrier assembly is zinc plated and finished in power-coat full gloss smooth super polyester
• Steel wedge barrier and heavy duty steel posts provide a formidable barrier to help prevent passenger vehicles and light-duty trucks from driving through a controlled traffic lane, without the expense of bollards, wedges, or crash beams. (Not crash rated.)
• Surface mount (concrete only) for quick, easy installation
• Integrated lighted Arm for high visibility
• Fast speed - raises and lowers in approximately 3.5 seconds
• Simple mechanical linkage to DKS 1602-590 Operator
• Operator keeps Barrier Arm and Wedge Barrier in sync - no separate motors or hydraulic valves to worry about
• Actual lane width for 12 ft. unit is 11 ft. 8 in. (3.55m)
• Actual lane width for 14 ft. unit is 13 ft. 8 in. (4.16m)
• Installs for thousands of dollars less than crash rated systems
• 1625 wedge barrier includes linkage hardware and counterbalance weights

*This Wedge Barrier System is not crash-rated. It is intended to provide a formidable barrier to help prevent passenger vehicles and light-duty trucks from driving through a controlled traffic lane. Lane Barrier is not recommended for use in areas subject to freezing weather.
