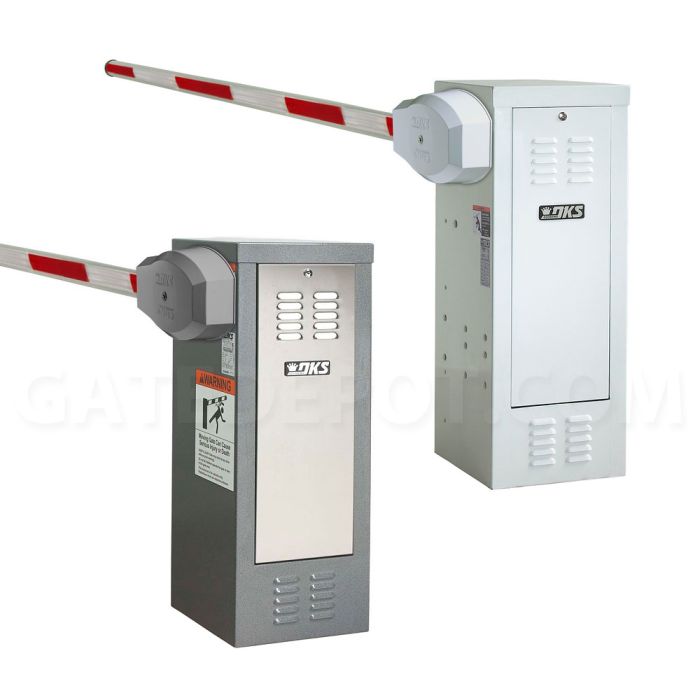

DoorKing 1601 Barrier Gate Operator - 14'
From $2,179.00
To $6,464.50
Product Details
The 1601 operator is designed for single lane (14 ft. max) vehicular traffic control in high traffic commercial and industrial applications — typical applications include commercial, industrial, gated communities and apartment complexes. A quick 2.5 second rotation opening time, along with rugged construction and multiple optional features make this 1601 a versatile answer to many parking control problems. The 1601 operator is designed so that it can be mounted on either the left or right-hand side of the roadway and is available in white or gunmetal gray finish. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
The DoorKing 1601 Barrier Gate Operator Accommodates Several Barrier Arm Styles (Sold Separately). To complete your purchase of the DoorKing 1601,
1. Choose an Operator
2. Choose a Barrier Arm
3. Choose the corresponding Barrier Arm Bracket
Arm Length Maximums
Octagonal Aluminum - 16'
Round Aluminum - 14'
Wood - 14'
Plastic - 12'
Features
- Magnetic limit control
- Ports for plug-in loop detectors
- Automatic sequencing inputs for use with slide and swing gate operators
- Up input memory buffer
- Down memory option
- Multiple up commands
- Two convenience outlets
- 360° gear box rotation
- Gate tracker reporting output
- Programming switches
- Built-in power On/Off switch
- Left or right hand mount
- 1/2 HP continuous-duty motor
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- 40:1 gear-box running in a continuous oil bath
- Arm rotates 90° in approximately 1.5 seconds
- Class II, III and IV applications
- Compliant with UL 325 and 991. ETL Listed.
- MADE IN USA
Options
- 14 - Foot Octagonal Aluminum Arm
- 14 - Foot Octagonal Aluminum Arm + Rev Edge
- 14 - Foot Octagonal Aluminum Arm + Rev Edge + Red/Green LEDs
- 14 - Foot Aluminum Arm
- 14 - Foot Aluminum Arm with White LEDs
- 14 - Foot Wood Arm

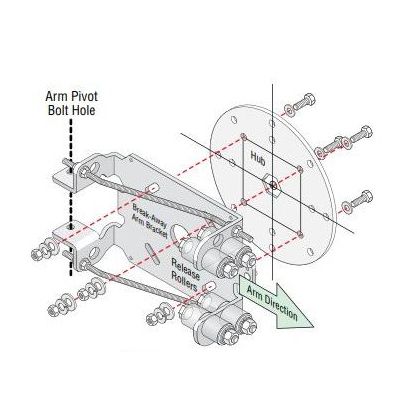

- Break-a-way arm kit (aluminum arms only)
- Arm folding bracket for low headroom (Max arm length is 12 Ft)
- DKS Pedestrian Protection System
- Plug-in loop detectors
- DC powered convenience open
- Heater kit
- Fan kit
- Surge suppressors
- Manual Crank kit
| Brand | Doorking |
|---|
