Diablo RK-3R Rack Base - 3 Detectors
• For 3 detectors
• Single relay SPDT (Form C) output
• A common, Normally Open, and Normally Closed
• Includes four self-adhesive mounts
• Operates over a wide range of voltages, AC or DC
• For AVI-40 | DSP-13 | DSP-40 | DSP-50 | DSP-55
MPN:
RK-3R
$102.50
SKU
DBL-rk-3r
Product Details

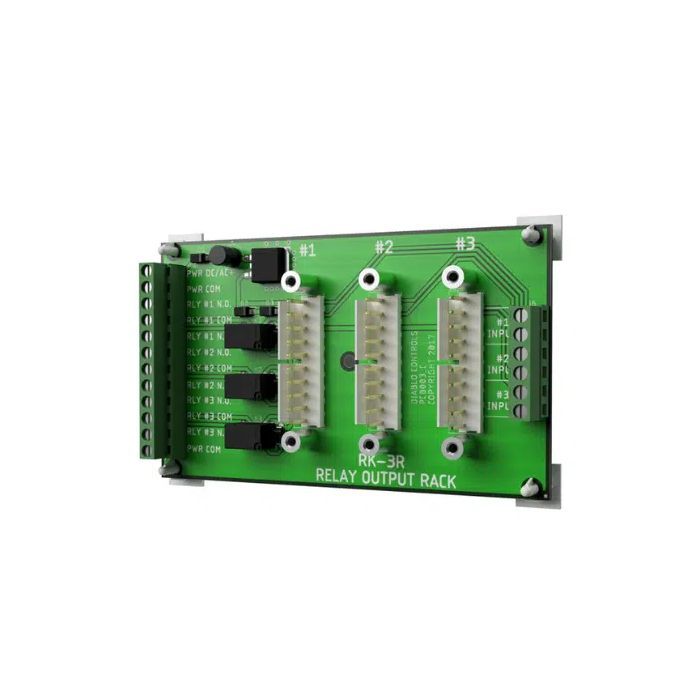

Many vehicle detectors are designed to be plugged into a rack including some of the more popular Diablo Controls models. In those installations where a large rack is not available, Diablo Controls has designed a mini rack. The RK-3R is designed to accept up to three plug-in vehicle detectors on one side and accept the appropriate wires through the terminal block on the other. The entire mini rack is supported by four adhesive standoffs that attach anywhere in the cabinet.
This device is designed for detectors that have a solid-state output but need a single relay output.
| Manufacturer Part Number | RK-3R |
|---|---|
| Brand | Diablo Controls |
