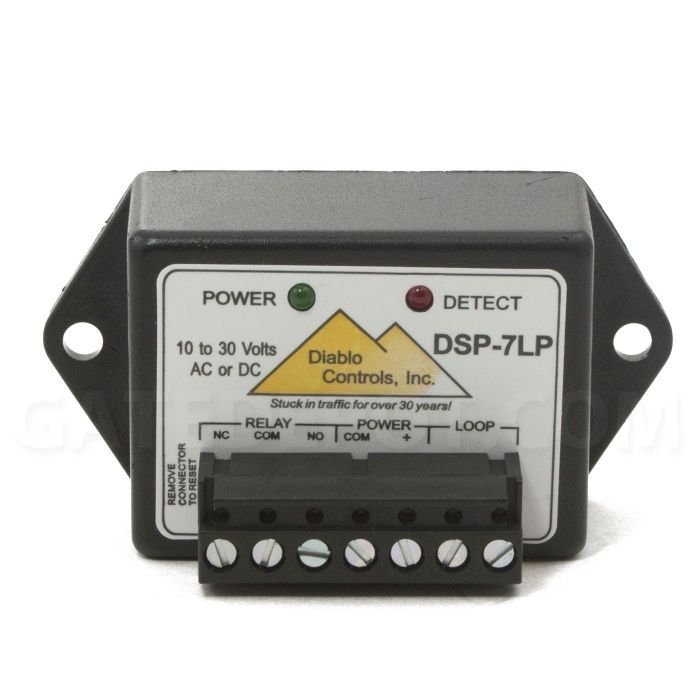

Diablo Controls DSP-7LP Loop Detector - Low Power

The DSP-7LP vehicle detector has been specifically designed for solar powered gate applications specifically for "fail safe" operations, such as on safety loops.

This detector will operate on any voltage from 10 to 30 volts AC or DC and draws approximately 1 milliampere with no vehicle on the loop. This micro-sized detector will automatically adjust its sensitivity level when used on different loop sizes. The detector loop inductance should be between 20 and 2000 microhenries.

The DSP-7LP detector has many of the same features as our standard DSP-7 but beats all competition for reliability, simplicity, and "no car" current consumption.

• Designed for solar power applications
• Designed to be cross talk free between other loops
• Plug and Play
• Small profile, making it perfect for most installations
• Automatically compensates for loop and lead-in sizes
• Switchless, self adapting to most common installations
• Fail Safe Operation
• Wide low-voltage operation
• Veteran Owned & Operated
