Diablo DSP-55 Loop & Free Exit Probe Vehicle Detector

Be the first to review this product

Choose Detector Only or Kits w/ 75' or 100' • Can be connected to a standard inductive loop as well as Diablo Controls Free Exit Probes • Small profile, perfect for many installations • Three Solid State outputs • Fail-safe or Fail-secure operation • Wide low-voltage operation • Separate Power/Fail and Detect LEDs • B Outputs can be presence, pulse on entry, pulse on exit, or loop fail • Flicker display shows occupancy of the detection zone when operating in a pulse mode • Delay or extension time is possible

From $229.00

To $1,031.80

SKU

DBL-dsp-55-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize Diablo DSP-55 Loop & Free Exit Probe Vehicle Detector

Diablo DSP-55 Loop & Free Exit Probe Vehicle Detector

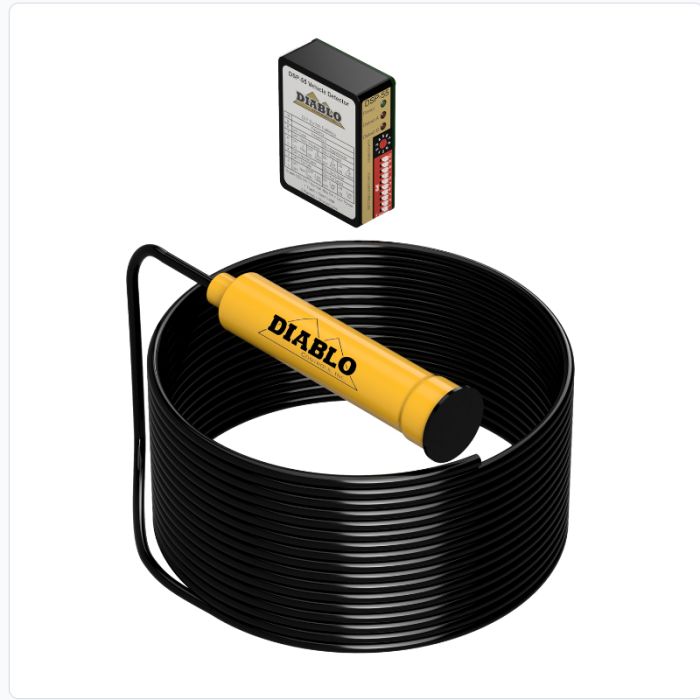

Diablo DSP-55-KIT75 Detector & Probe - 75' Lead $229.00

• Detector & Probe - 75' Lead • Can be connected to a standard inductive loop as well as Diablo Controls Free Exit Probes • Small profile, perfect for many installations • Three Solid State outputs • Fail-safe or Fail-secure operation • Wide low-voltage operation

GD# DBL-dsp-55-kit75 MFR# DSP-55-KIT75

Quantity

Diablo DSP-55-KIT100 Detector & Probe - 100' Lead $215.95

• Detector & Probe - 100' Lead • Can be connected to a standard inductive loop as well as Diablo Controls Free Exit Probes • Small profile, perfect for many installations • Three Solid State outputs • Fail-safe or Fail-secure operation • Wide low-voltage operation

GD# DBL-dsp-55-kit100 MFR# DSP-55-KIT100

Quantity

Diablo DSP-55-KIT150 Detector & Probe - 150' Lead $259.00

• Detector & Probe - 150' Lead • Can be connected to a standard inductive loop as well as Diablo Controls Free Exit Probes • Small profile, perfect for many installations • Three Solid State outputs • Fail-safe or Fail-secure operation • Wide low-voltage operation

GD# DBL-dsp-55-kit150 MFR# DSP-55-KIT150

Quantity

Diablo DSP-55 Detector Only

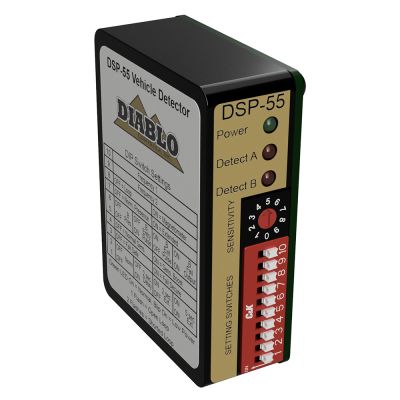

Diablo DSP-55 Detector Only $81.95

• Detector Only • Can be connected to a standard inductive loop as well as Diablo Controls Free Exit Probes • Small profile, perfect for many installations • Three Solid State outputs • Fail-safe or Fail-secure operation • Wide low-voltage operation

GD# DBL-dsp-55 MFR# DSP-55

Quantity

Diablo DSP-55 Probes Only

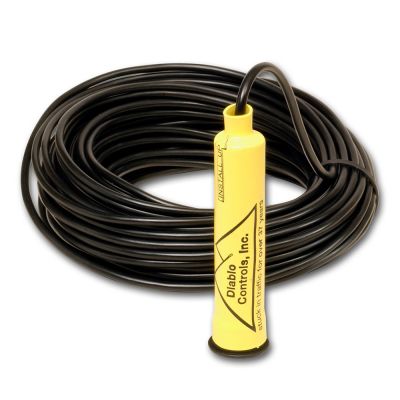

Diablo DSP-PROBE-75 Probe Only - 75' Lead $111.95

• The Diablo Free Exit Probe is intended to be buried beneath the roadway surface and connected, via lead-in cable, to many of the Diablo Control products • For DML-9LP | DSP-10 | DSP-19 | DSP 22-1 | DSP-22-2 DSP-55 | XLP-8

GD# DBL-dsp-probe-75 MFR# DSP-PROBE-75

Quantity

Diablo DSP-PROBE-100 Probe Only - 100' Lead $133.95

GD# DBL-dsp-probe-100 MFR# DSP-PROBE-100

Quantity

* Required Fields

Your Customization

Diablo DSP-55 Loop & Free Exit Probe Vehicle Detector

In stock

Qty

$229.00

Summary

Overview

Product Details

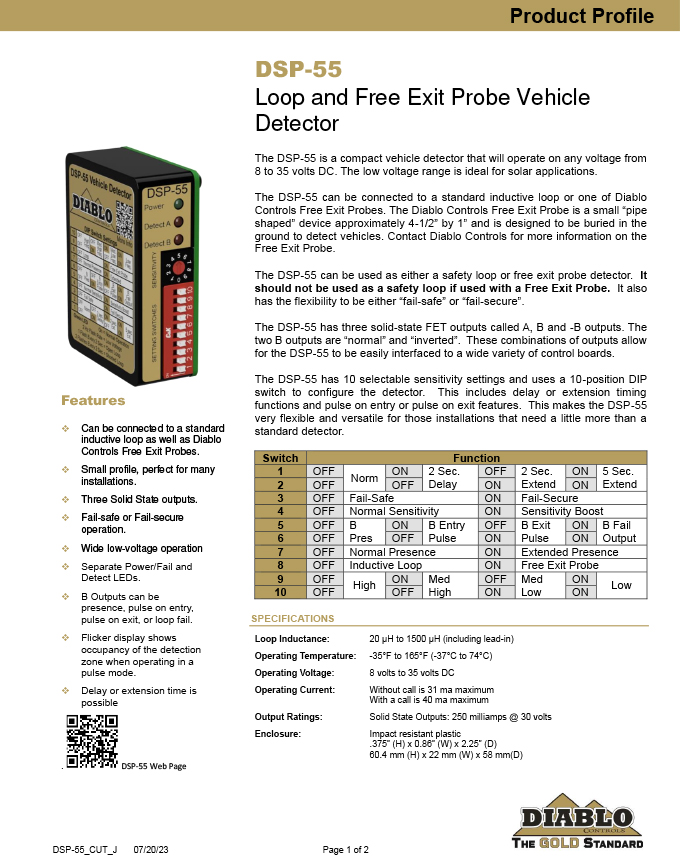

The DSP-55 is a compact vehicle detector that will operate on any voltage from 8 to 35 volts DC. The low voltage range is ideal for solar applications.

The DSP-55 can be connected to a standard inductive loop or one of Diablo Controls Free Exit Probes. The Diablo Controls Free Exit Probe is a small "pipe shaped" device approximately 4-1/2" by 1" and is designed to be buried in the ground to detect vehicles. Contact Diablo Controls for more information on the Free Exit Probe.

The DSP-55 can be used as either a safety loop or free exit probe detector. It should not be used as a safety loop if used with a Free Exit Probe. It also has the flexibility to be either "fail-safe" or "fail-secure".

The DSP-55 has three solid-state FET outputs called A, B and -B outputs. The two B outputs are "normal" and "inverted". These combinations of outputs allow for the DSP-55 to be easily interfaced to a wide variety of control boards.

The DSP-55 has 10 selectable sensitivity settings and uses a 10-position DIP switch to configure the detector. This includes delay or extension timing functions and pulse on entry or pulse on exit features. This makes the DSP-55 very flexible and versatile for those installations that need a little more than a standard detector.

Specification
