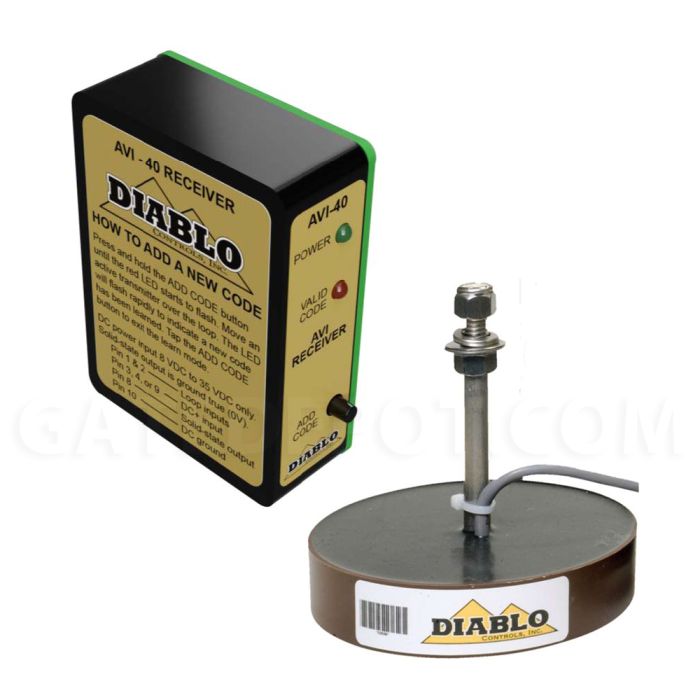

Diablo Controls AVI-40 Automatic Vehicle Detection System
From $296.00
To $1,059.95
Product Details
The AVI System has many different uses and applications including Emergency Vehicle Access, Mass Transit, Shuttle Buses, Private Homeowner Access, Trucking Companies, Manufacturing Facilities, Fork Lifts, Airport Access, Rail Cars, and many other types of applications.
Depending on the type of application, the user can choose to have the AVI System "Hands Free" or manual.
The AVI system is configured and tested at the factory, providing a true "Plug & Play" environment. All codes are documented and saved at the factory to eliminate duplicate codes being used by existing customers. The AVI system has Multiple Code capability allowing for greater versatility and security.

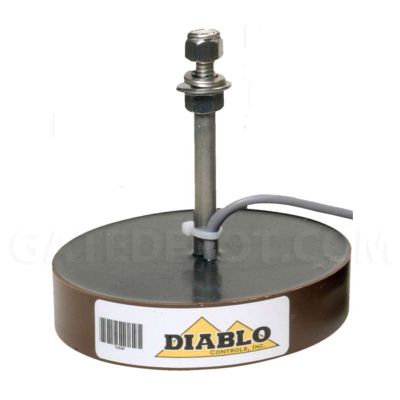

The AVI Transmitter is potted in a thermal epoxy compound and is mounted to the underside of a fire apparatus, police car, bus, light-rail train, and many other vehicles. When the vehicle approaches a gated area, the code is received by a loop buried in the ground ahead of the gate or barrier.

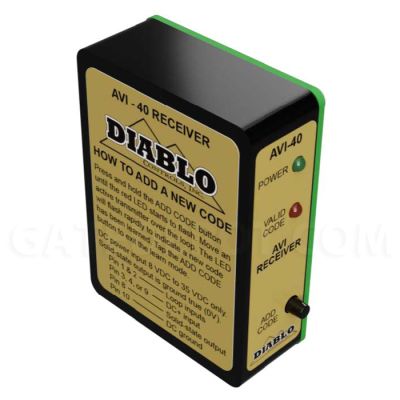

The receiver is the "smarts" of the system. It receives the coded message coming from the transmitter. If the transmitted code matches the pre-programmed code stored in the receiver, a relay contact is closed and a red LED is illuminated indicating a valid code is being received. This signal is then passed on to a gate controller, which automatically opens the gate or performs some other security function.
- LED Indicators: The green Power LED will be on solid to indicate the unit is operating and powered. The red Valid LED will turn on when the unit is receiving a valid code. If the red Valid LED is blinking slowly then this unit is un-programmed and has no codes stored to validate
- Outputs: Solid-state (open transistor collectors) for both detect and fail outputs. 30 mA maximum current sink- transient voltage protected
- Power: 12 to 30 volts DC
- Operating Temperature: -35°F to 165°F (-37°C to 74°C)
- Size: Height: 2.4" (61 mm) Width: 0.8" (20 mm) Depth: 2.25" (57 mm)
- Connector: 10-position Molex Type 09-48-1104 — Mates with many female PCB 0.156" pitch headers in use by some access control devices and gate operators
| Brand | Diablo Controls |
|---|
