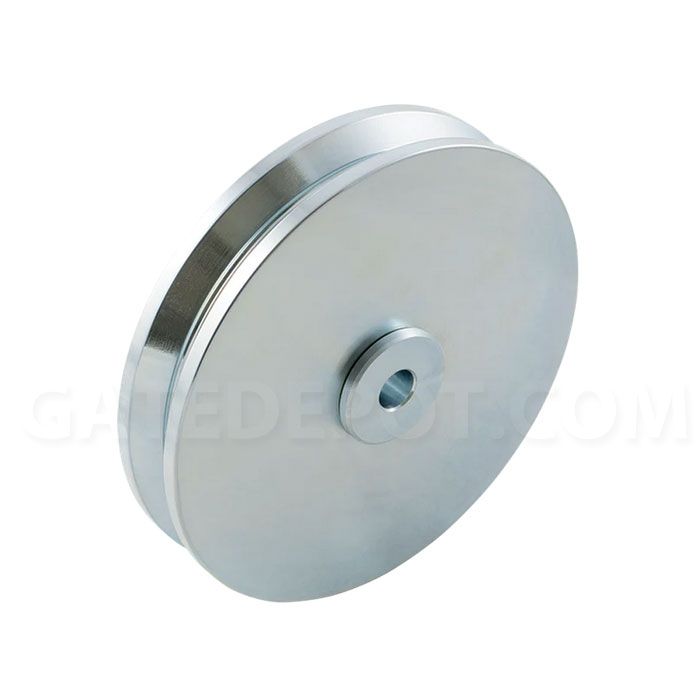

D&D Shut It® Hardcore™ CI2615 V-Groove Wheel - 6" x 1-1/2"
• 6" x 1-1/2"
• Two sealed maintenance free bearings (no greasing)
• Only 1⅛" (29mm) wide to reduce friction and debris issues
• Super-hard cold rolled steel (30RC rating)
• Load rating per gate: 5,000 lb (2,270kg)
• Maximum gate weight: 2,200 lb (1,000kg)
• Carriage plate available separately
MPN:
CI2615
$142.00
SKU
DND-ci2615
Product Details
The 6" (152mm) of HardCORE V-Groove Wheel for 11?2" (38mm) Gate Frame is designed to be used on a gate with a 11?2" (38mm) bottom rail. This wheel does not include carriage plates, so the installer will have to use alternative installation technique. All HardCORE wheels use SHUT IT's unique bushing design, which fully utilises the roller bearings.
Features
- Brand: Shut It™ HardCore
- Gate Application: Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Material: Aluminum, Steel/Ornamental Iron
- Approx Gate Size: 6ft W x 8ft H (1.5m x 2m)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 1½" (38mm), 2" (51mm)
- Fixing Method: Bolt-On
- Color/Finish: Zinc
| Manufacturer Part Number | CI2615 |
|---|---|
| Brand | D&D |
